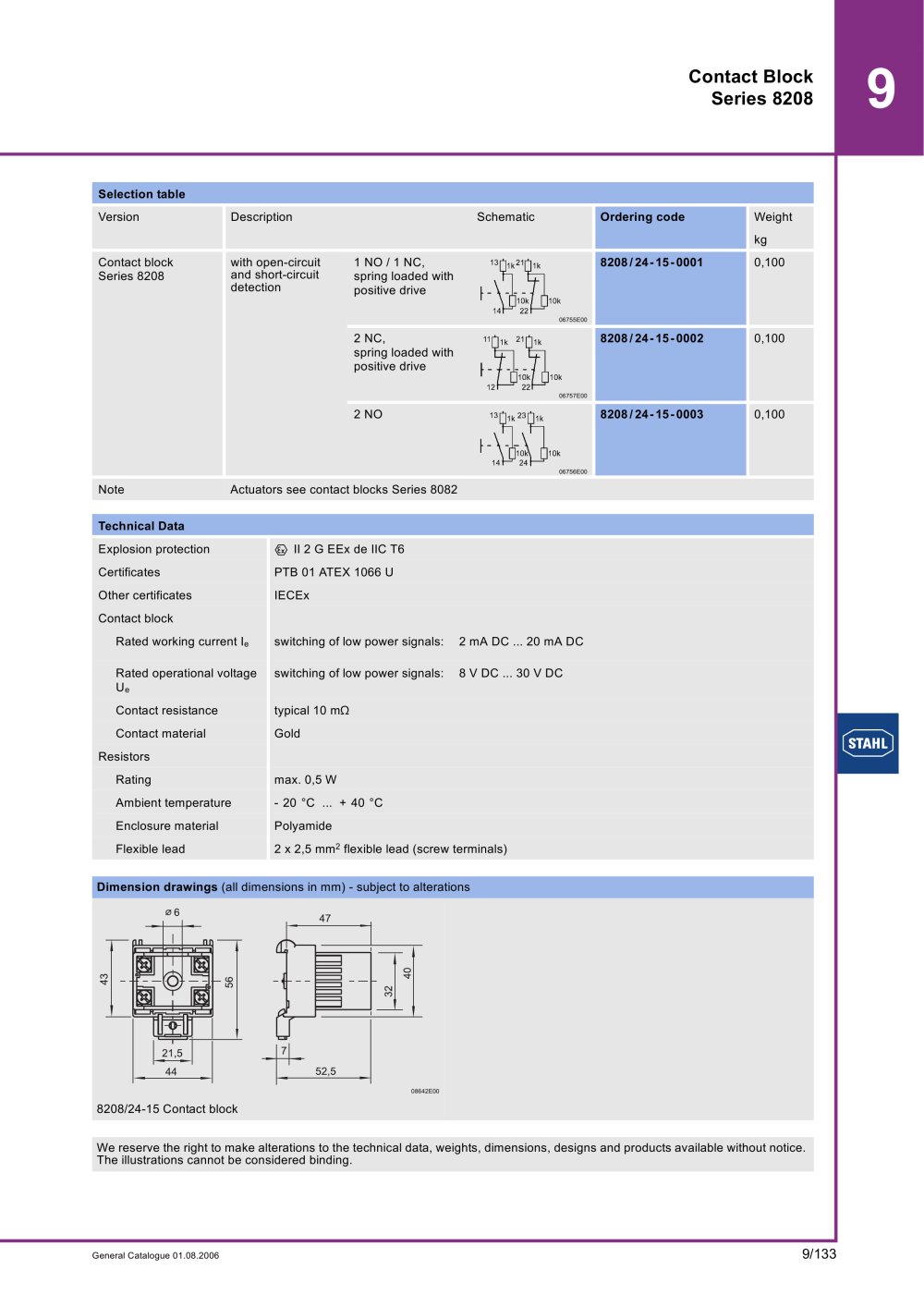

9/133 9 General Catalogue 01.08.2006 Contact Block Series 8208 Selection table Version Description Schematic Ordering code Weight kg Contact block Series 8208 with open-circuit and short-circuit detection 1 NO / 1 NC, spring loaded with positive drive 06755E00 8208/24-15-0001 0,100 2 NC, spring loaded with positive drive 06757E00 8208/24-15-0002 0,100 2 NO 06756E00 8208/24-15-0003 0,100 Note Actuators see contact blocks Series 8082 Technical Data Explosion protection E II 2 G EEx de IIC T6 Certificates PTB 01 ATEX 1066 U Other certificates IECEx Contact block Rated working current Ie Rated operational voltage Ue Contact resistance typical 10 mO Contact material Gold Resistors Rating max. 0,5 W Ambient temperature - 20 °C ... + 40 °C Enclosure material Polyamide Flexible lead 2 x 2,5 mm2 flexible lead (screw terminals) Dimension drawings (all dimensions in mm) - subject to alterations 08642E00 8208/24-15 Contact block We reserve the right to make alterations to the technical data, weights, dimensions, designs and products available without notice. The illustrations cannot be considered binding. switching of low power signals: 2 mA DC ... 20 mA DC switching of low power signals: 8 V DC ... 30 V DC
