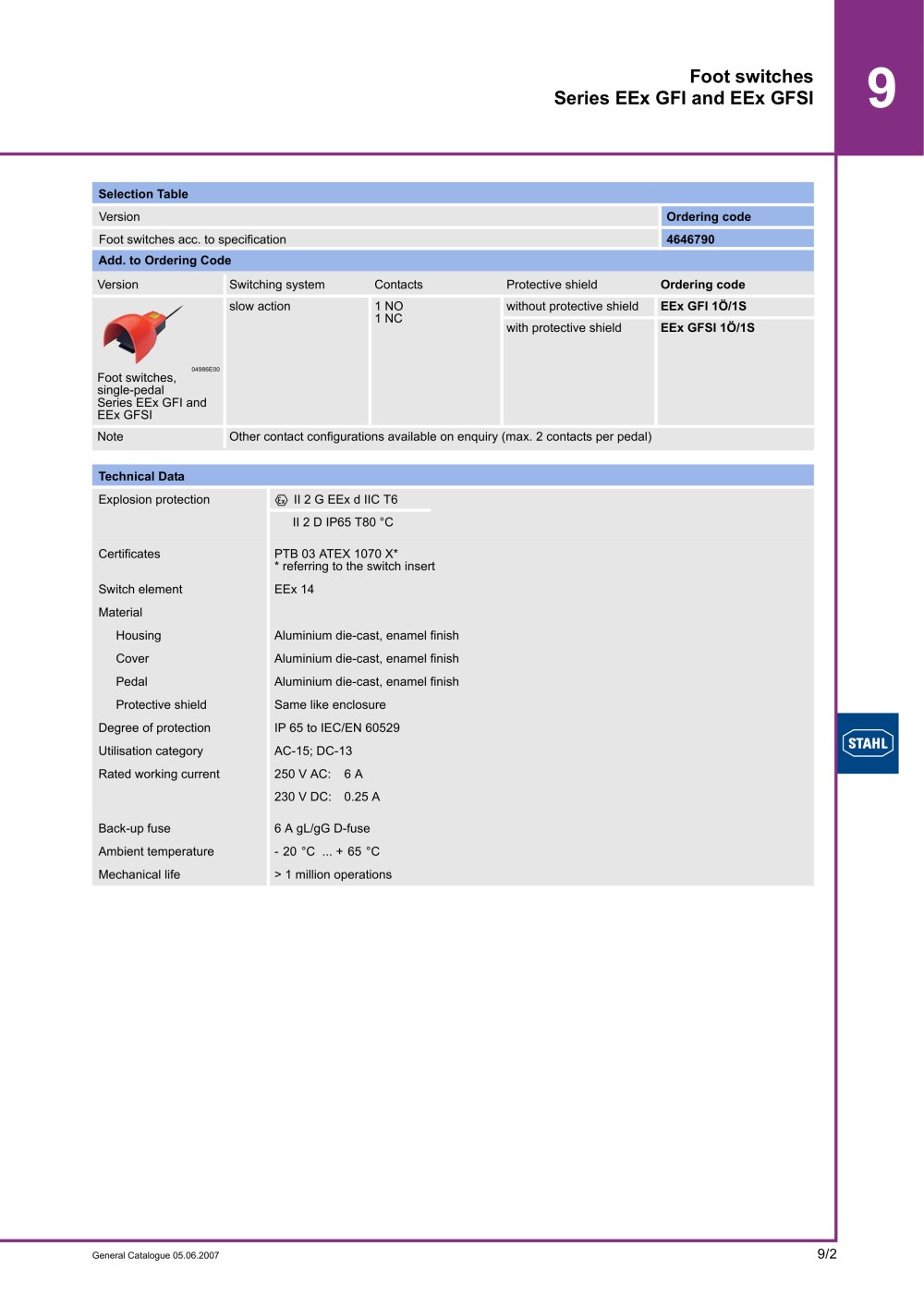

9/2 9 General Catalogue 05.06.2007 Foot switches Series EEx GFI and EEx GFSI Selection Table Version Ordering code Foot switches acc. to specification 4646790 Add. to Ordering Code Technical Data Explosion protection Certificates PTB 03 ATEX 1070 X* * referring to the switch insert Switch element EEx 14 Material Housing Aluminium die-cast, enamel finish Cover Aluminium die-cast, enamel finish Pedal Aluminium die-cast, enamel finish Protective shield Same like enclosure Degree of protection IP 65 to IEC/EN 60529 Utilisation category AC-15; DC-13 Rated working current Back-up fuse 6 A gL/gG D-fuse Ambient temperature - 20 °C ... + 65 °C Mechanical life > 1 million operations Version Switching system Contacts Protective shield Ordering code 04986E00 Foot switches, single-pedal Series EEx GFI and EEx GFSI slow action 1 NO 1 NC without protective shield EEx GFI 1Ö/1S with protective shield EEx GFSI 1Ö/1S Note Other contact configurations available on enquiry (max. 2 contacts per pedal) E II 2 G EEx d IIC T6 II 2 D IP65 T80 °C 250 V AC: 6 A 230 V DC: 0.25 A
