2/2
2
Automation 17.04.2008

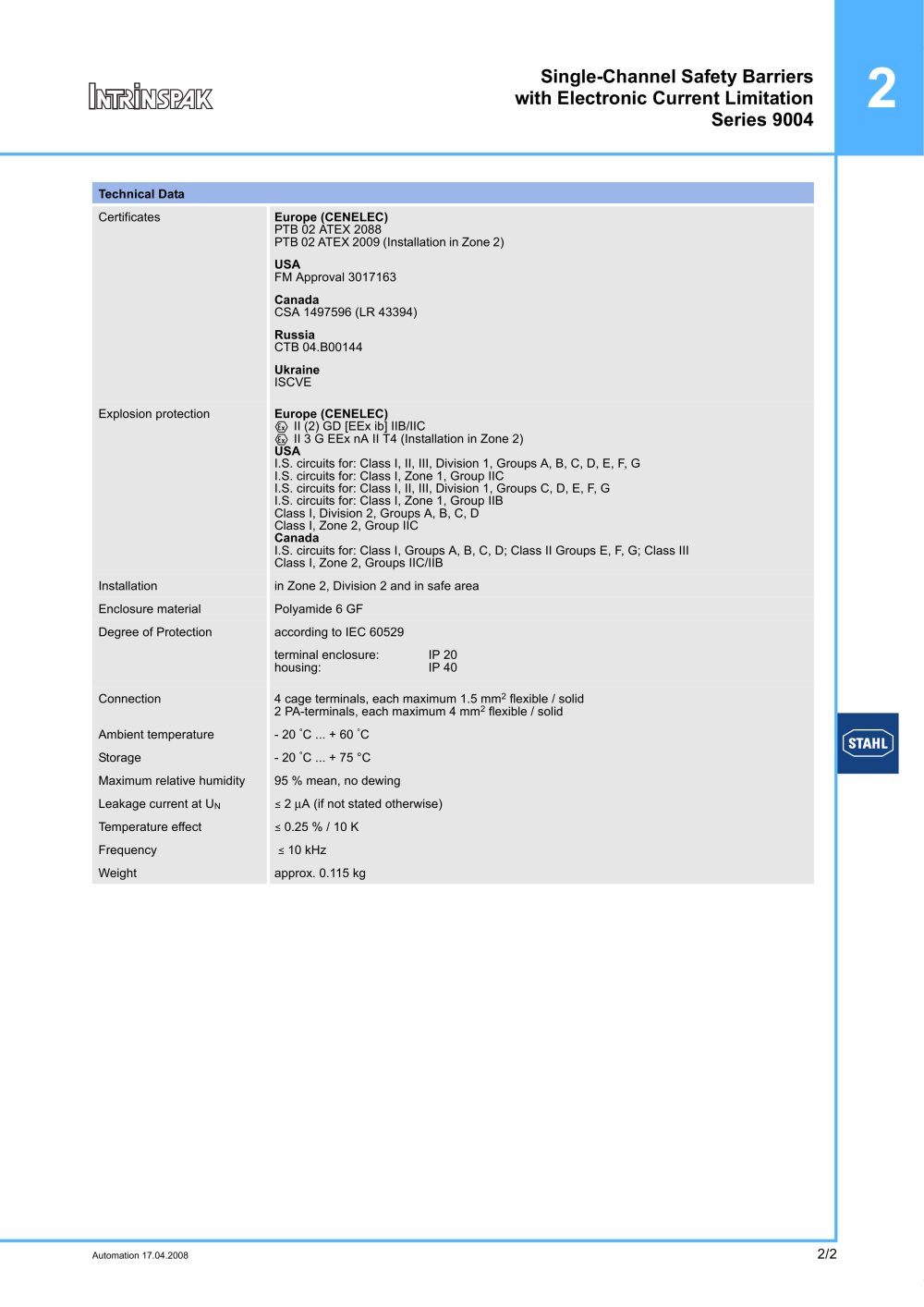

Single-Channel Safety Barriers
with Electronic Current Limitation
Series 9004
Technical Data
Certificates
Explosion protection Europe (CENELEC)
E II (2) GD [EEx ib] IIB/IIC
E II 3 G EEx nA II T4 (Installation in Zone 2)
USA
I.S. circuits for: Class I, II, III, Division 1, Groups A, B, C, D, E, F, G
I.S. circuits for: Class I, Zone 1, Group IIC
I.S. circuits for: Class I, II, III, Division 1, Groups C, D, E, F, G
I.S. circuits for: Class I, Zone 1, Group IIB
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, Group IIC
Canada
I.S. circuits for: Class I, Groups A, B, C, D; Class II Groups E, F, G; Class III
Class I, Zone 2, Groups IIC/IIB
Installation in Zone 2, Division 2 and in safe area
Enclosure material Polyamide 6 GF
Degree of Protection
Connection 4 cage terminals, each maximum 1.5 mm2 flexible / solid
2 PA-terminals, each maximum 4 mm2 flexible / solid
Ambient temperature - 20 °C ... + 60 °C
Storage - 20 °C ... + 75 °C
Maximum relative humidity 95 % mean, no dewing
Leakage current at UN ( 2 ěA (if not stated otherwise)
Temperature effect ( 0.25 % / 10 K
Frequency ( 10 kHz
Weight approx. 0.115 kg
Europe (CENELEC)
PTB 02 ATEX 2088
PTB 02 ATEX 2009 (Installation in Zone 2)
USA
FM Approval 3017163
Canada
CSA 1497596 (LR 43394)
Russia
CTB 04.B00144
Ukraine
ISCVE
according to IEC 60529
terminal enclosure:
housing:
IP 20
IP 40
