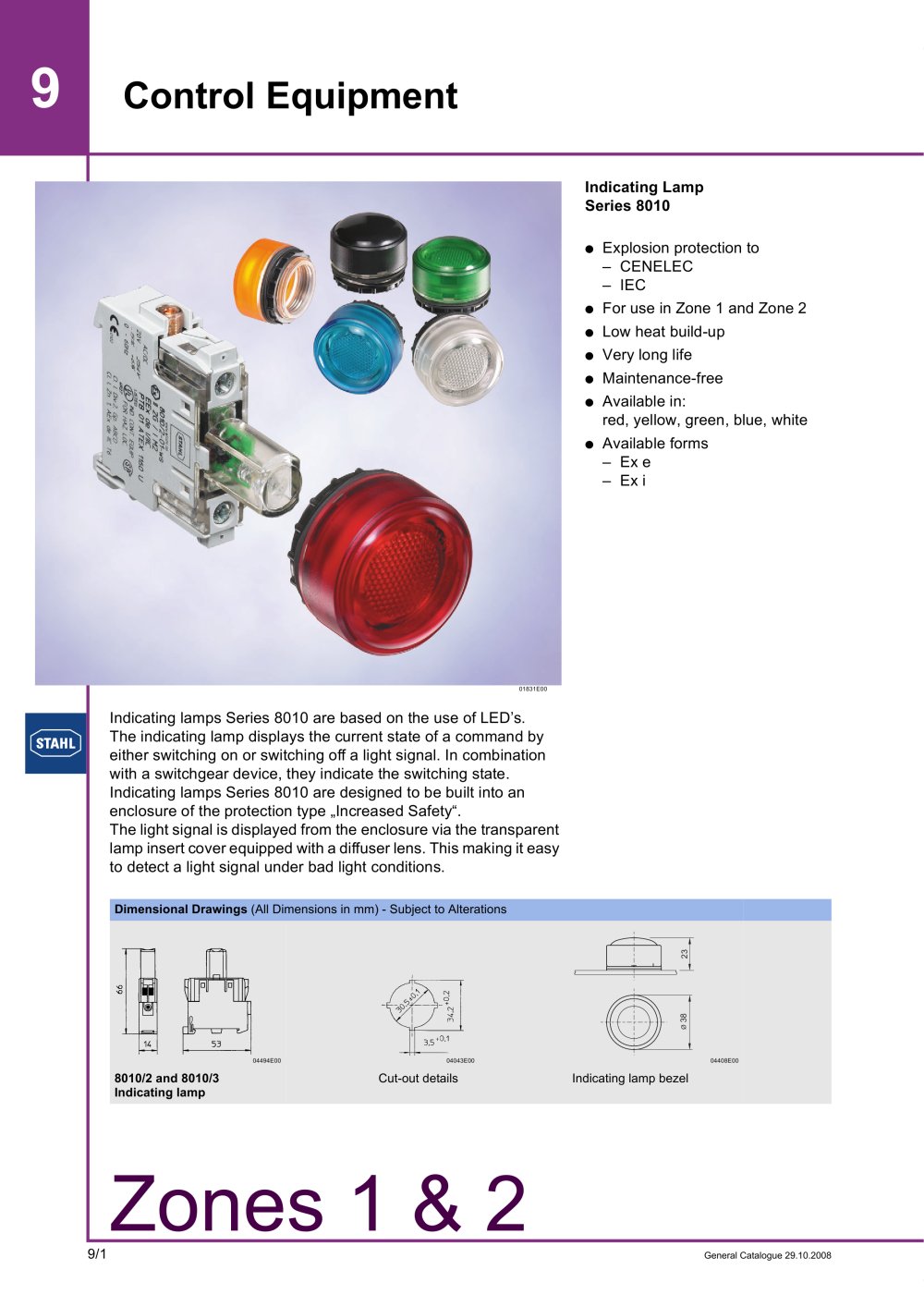

9 Control Equipment
9/1Zones 1 & 2 General Catalogue 29.10.2008
01831E00
Indicating Lamp
Series 8010
Explosion protection to
CENELEC
IEC
For use in Zone 1 and Zone 2
Low heat build-up
Very long life
Maintenance-free
Available in:
red, yellow, green, blue, white
Available forms
Ex e
Ex i
Indicating lamps Series 8010 are based on the use of LEDs.
The indicating lamp displays the current state of a command by
either switching on or switching off a light signal. In combination
with a switchgear device, they indicate the switching state.
Indicating lamps Series 8010 are designed to be built into an
enclosure of the protection type Increased Safety.
The light signal is displayed from the enclosure via the transparent
lamp insert cover equipped with a diffuser lens. This making it easy
to detect a light signal under bad light conditions.
Dimensional Drawings (All Dimensions in mm) - Subject to Alterations
04494E00 04043E00 04408E00
8010/2 and 8010/3
Indicating lamp
Cut-out details Indicating lamp bezel
38 23
