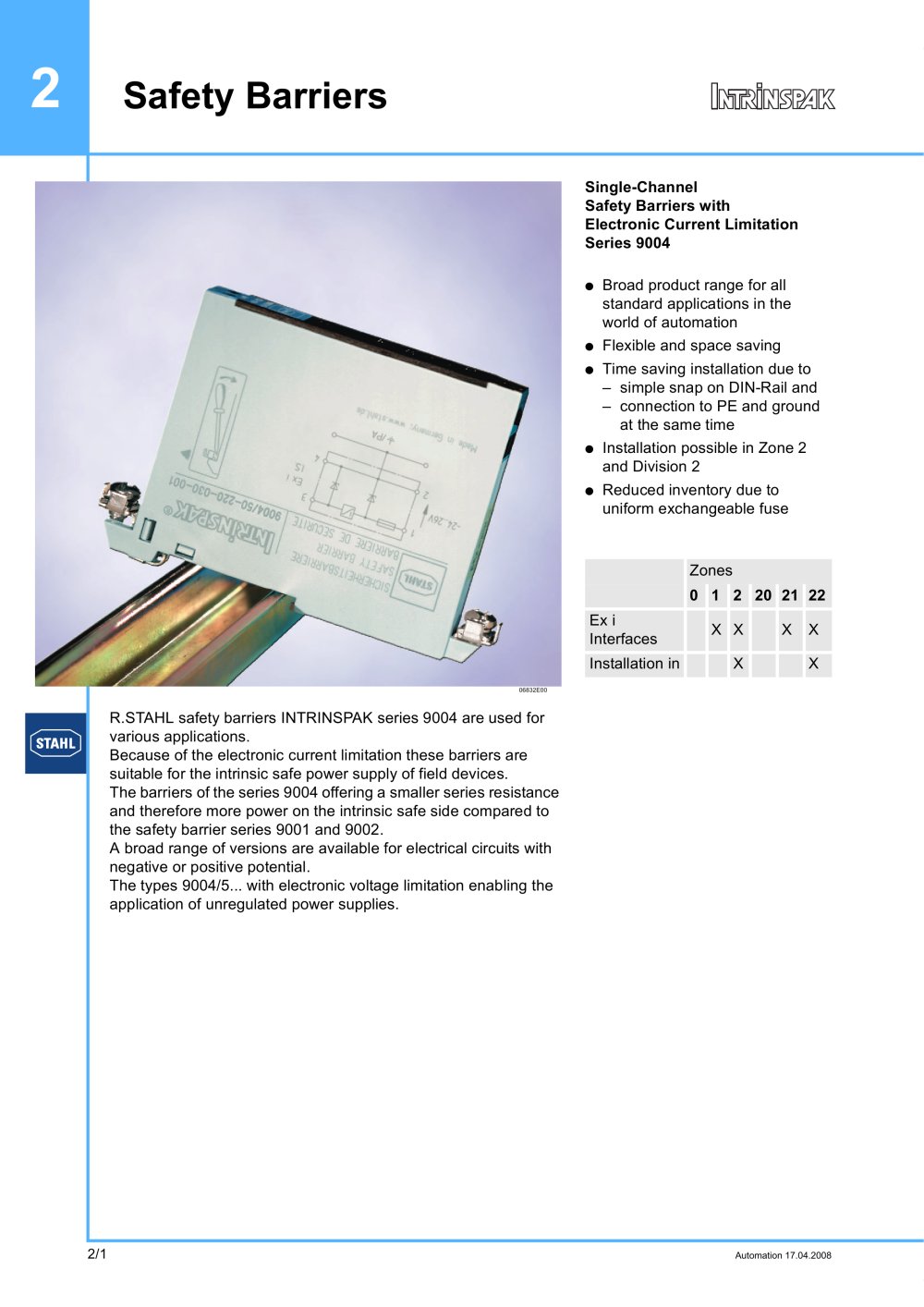

2 Safety Barriers
2/1 Automation 17.04.2008
06832E00
Single-Channel
Safety Barriers with
Electronic Current Limitation
Series 9004
Broad product range for all
standard applications in the
world of automation
Flexible and space saving
Time saving installation due to
simple snap on DIN-Rail and
connection to PE and ground
at the same time
Installation possible in Zone 2
and Division 2
Reduced inventory due to
uniform exchangeable fuse
Zones
0 1 2 20 21 22
Ex i
Interfaces X X X X
Installation in X X
R.STAHL safety barriers INTRINSPAK series 9004 are used for
various applications.
Because of the electronic current limitation these barriers are
suitable for the intrinsic safe power supply of field devices.
The barriers of the series 9004 offering a smaller series resistance
and therefore more power on the intrinsic safe side compared to
the safety barrier series 9001 and 9002.
A broad range of versions are available for electrical circuits with
negative or positive potential.
The types 9004/5... with electronic voltage limitation enabling the
application of unregulated power supplies.
