9/98

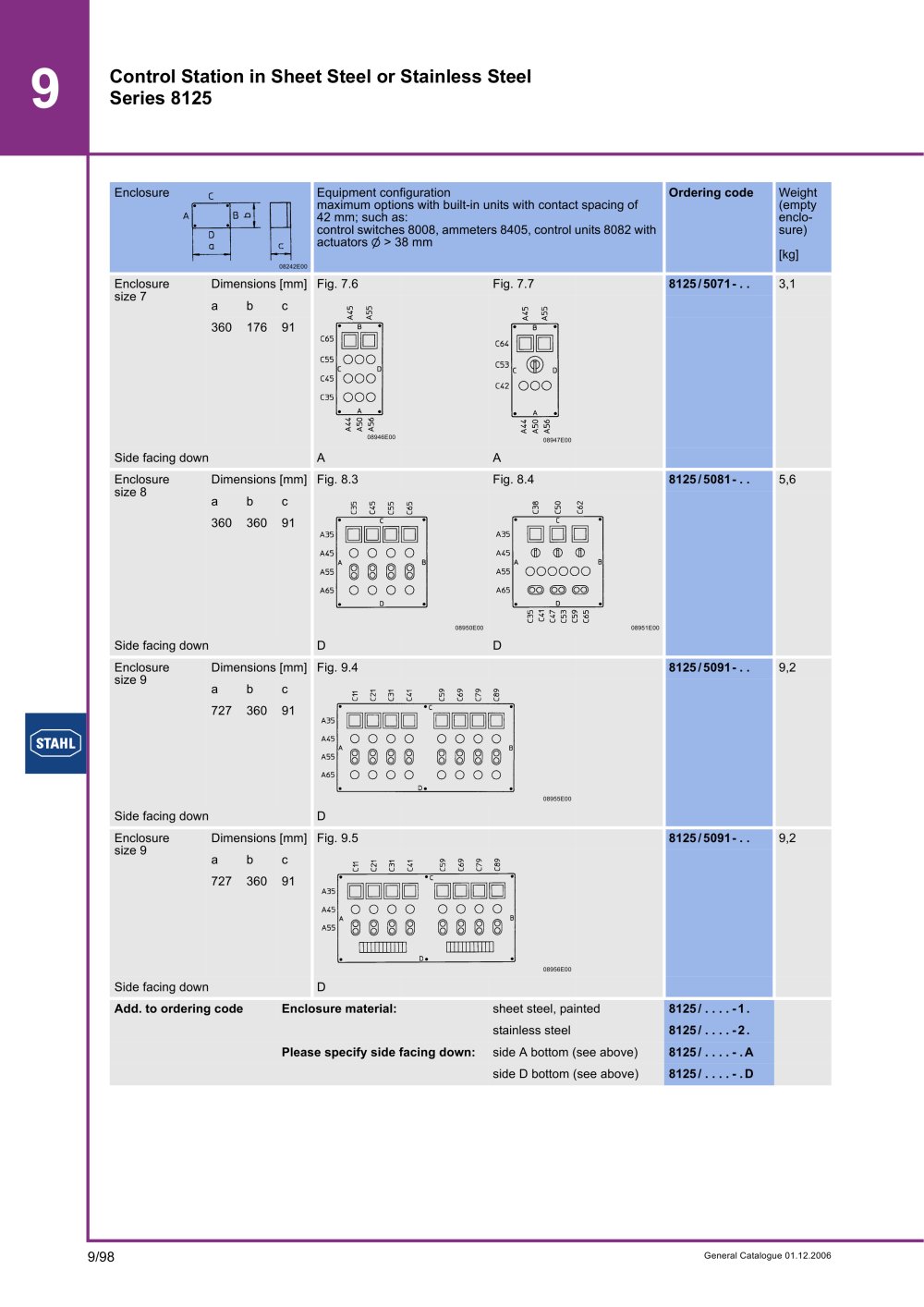

Control Station in Sheet Steel or Stainless Steel
Series 8125
General Catalogue 01.12.2006
9
Enclosure
size 7
Dimensions [mm] Fig. 7.6 Fig. 7.7 8125/5071-.. 3,1
a b c
08946E00 08947E00
360 176 91
Side facing down A A
Enclosure
size 8
Dimensions [mm] Fig. 8.3 Fig. 8.4 8125/5081-.. 5,6
a b c
08950E00 08951E00
360 360 91
Side facing down D D
Enclosure
size 9
Dimensions [mm] Fig. 9.4 8125/5091-.. 9,2
a b c
08955E00
727 360 91
Side facing down D
Enclosure
size 9
Dimensions [mm] Fig. 9.5 8125/5091-.. 9,2
a b c
08956E00
727 360 91
Side facing down D
Enclosure
08242E00
Equipment configuration
maximum options with built-in units with contact spacing of
42 mm; such as:
control switches 8008, ammeters 8405, control units 8082 with
actuators d > 38 mm
Ordering code Weight
(empty
enclosure)
[kg]
Add. to ordering code Enclosure material: sheet steel, painted 8125/....-1.
stainless steel 8125/....-2.
Please specify side facing down: side A bottom (see above) 8125/....-.A
side D bottom (see above) 8125/....-.D
