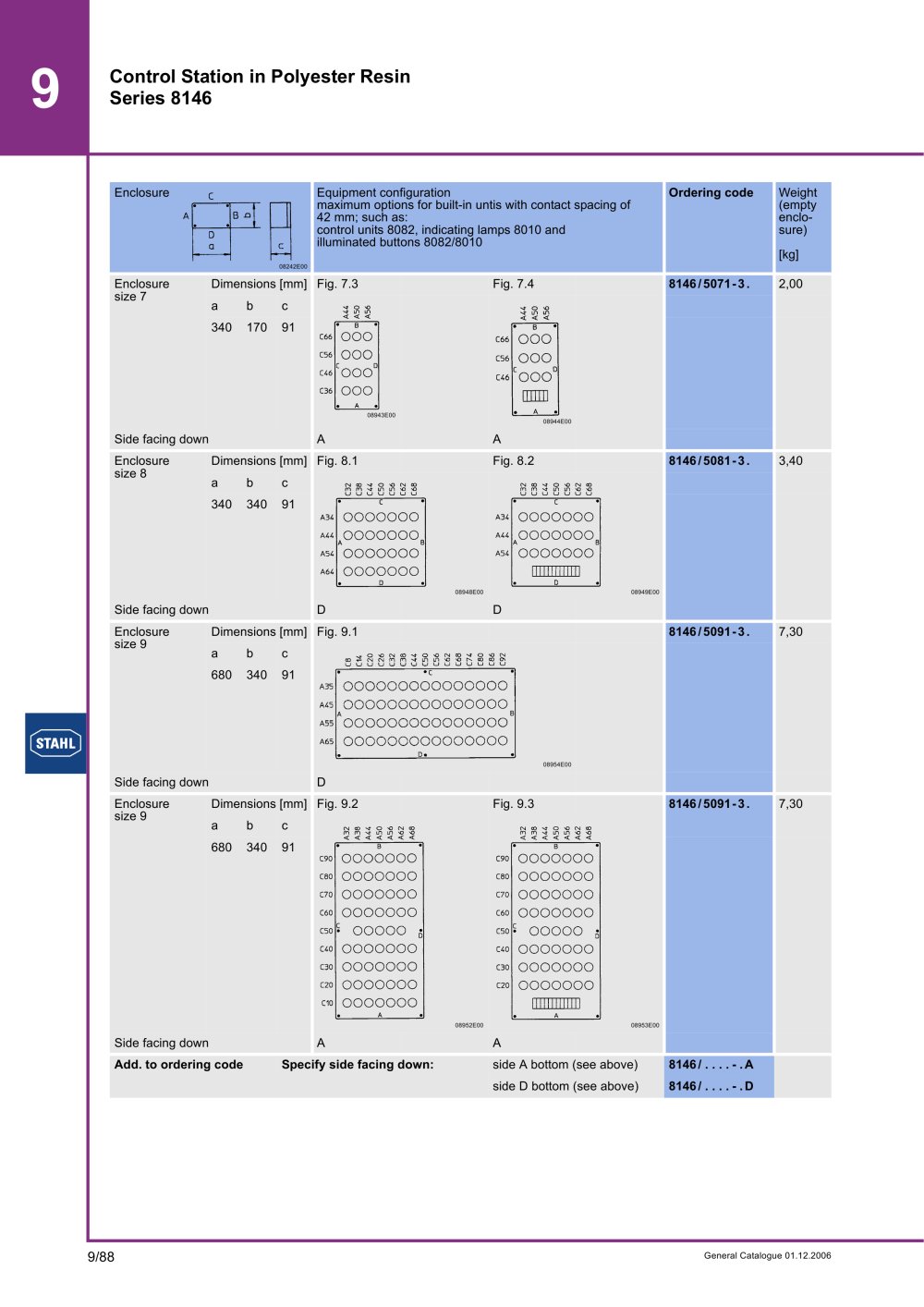

9/88
Control Station in Polyester Resin
Series 8146
General Catalogue 01.12.2006
9
Enclosure
size 7
Dimensions [mm] Fig. 7.3 Fig. 7.4 8146/5071-3. 2,00
a b c
08943E00
08944E00
340 170 91
Side facing down A A
Enclosure
size 8
Dimensions [mm] Fig. 8.1 Fig. 8.2 8146/5081-3. 3,40
a b c
08948E00 08949E00
340 340 91
Side facing down D D
Enclosure
size 9
Dimensions [mm] Fig. 9.1 8146/5091-3. 7,30
a b c
08954E00
680 340 91
Side facing down D
Enclosure
size 9
Dimensions [mm] Fig. 9.2 Fig. 9.3 8146/5091-3. 7,30
a b c
08952E00 08953E00
680 340 91
Side facing down A A
Enclosure
08242E00
Equipment configuration
maximum options for built-in untis with contact spacing of
42 mm; such as:
control units 8082, indicating lamps 8010 and
illuminated buttons 8082/8010
Ordering code Weight
(empty
enclosure)
[kg]
Add. to ordering code Specify side facing down: side A bottom (see above) 8146/....-.A
side D bottom (see above) 8146/....-.D
