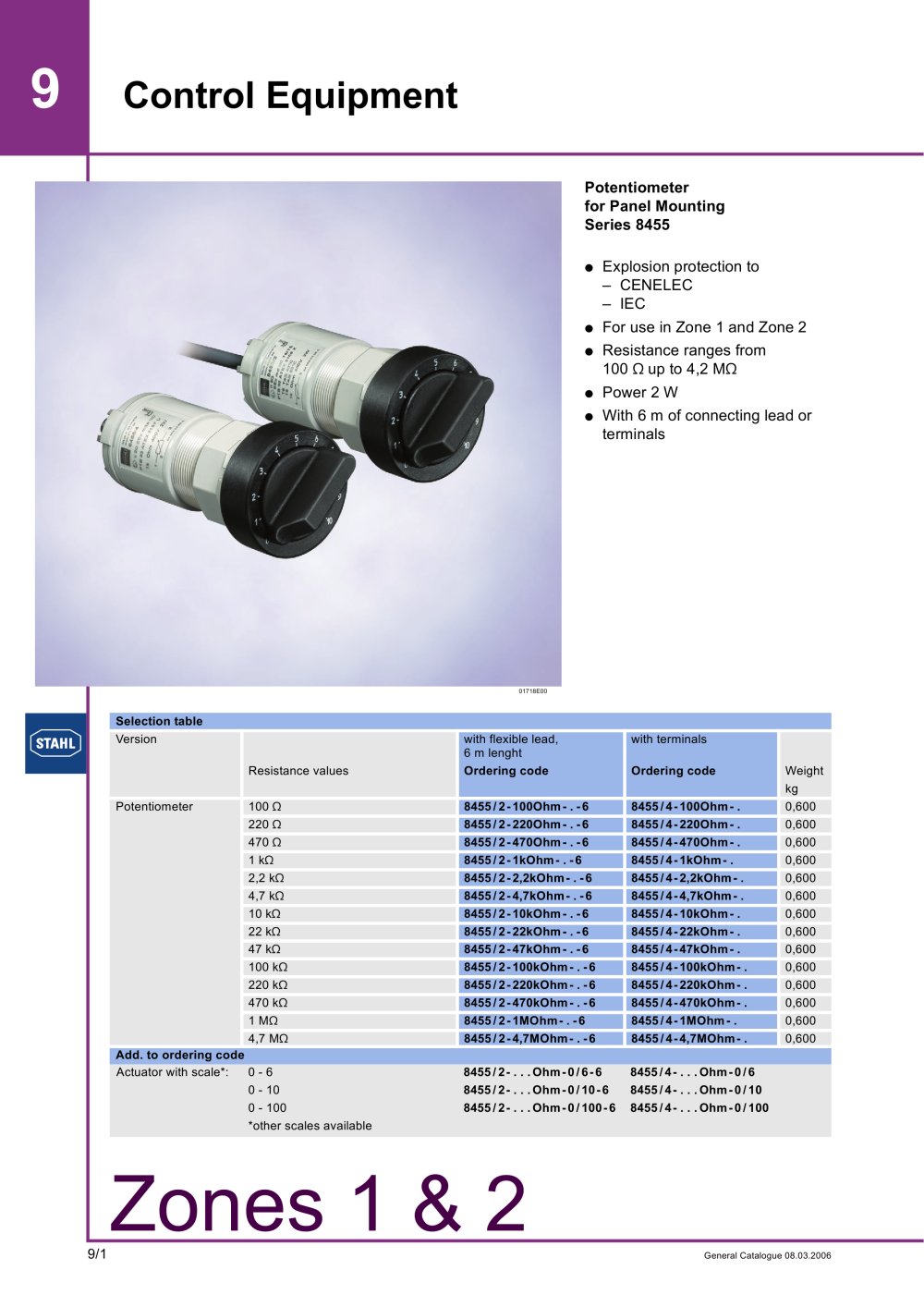

Control Equipment
9/1Zones 1 & 2 General Catalogue 08.03.2006
9
01718E00
Potentiometer
for Panel Mounting
Series 8455
Explosion protection to
CENELEC
IEC
For use in Zone 1 and Zone 2
Resistance ranges from
100 O up to 4,2 MO
Power 2 W
With 6 m of connecting lead or
terminals
Selection table
Version with flexible lead,
6 m lenght
with terminals
Resistance values Ordering code Ordering code Weight
kg
Potentiometer 100 O 8455/2-100Ohm-.-6 8455/4-100Ohm-. 0,600
220 O 8455/2-220Ohm-.-6 8455/4-220Ohm-. 0,600
470 O 8455/2-470Ohm-.-6 8455/4-470Ohm-. 0,600
1 kO 8455/2-1kOhm-.-6 8455/4-1kOhm-. 0,600
2,2 kO 8455/2-2,2kOhm-.-6 8455/4-2,2kOhm-. 0,600
4,7 kO 8455/2-4,7kOhm-.-6 8455/4-4,7kOhm-. 0,600
10 kO 8455/2-10kOhm-.-6 8455/4-10kOhm-. 0,600
22 kO 8455/2-22kOhm-.-6 8455/4-22kOhm-. 0,600
47 kO 8455/2-47kOhm-.-6 8455/4-47kOhm-. 0,600
100 kO 8455/2-100kOhm-.-6 8455/4-100kOhm-. 0,600
220 kO 8455/2-220kOhm-.-6 8455/4-220kOhm-. 0,600
470 kO 8455/2-470kOhm-.-6 8455/4-470kOhm-. 0,600
1 MO 8455/2-1MOhm-.-6 8455/4-1MOhm-. 0,600
4,7 MO 8455/2-4,7MOhm-.-6 8455/4-4,7MOhm-. 0,600
Add. to ordering code
Actuator with scale*: 0 - 6 8455/2-...Ohm-0/6-6 8455/4-...Ohm-0/6
0 - 10 8455/2-...Ohm-0/10-6 8455/4-...Ohm-0/10
0 - 100 8455/2-...Ohm-0/100-6 8455/4-...Ohm-0/100
*other scales available
