Control Buttons / Switches for Panel Mounting
Series 8003

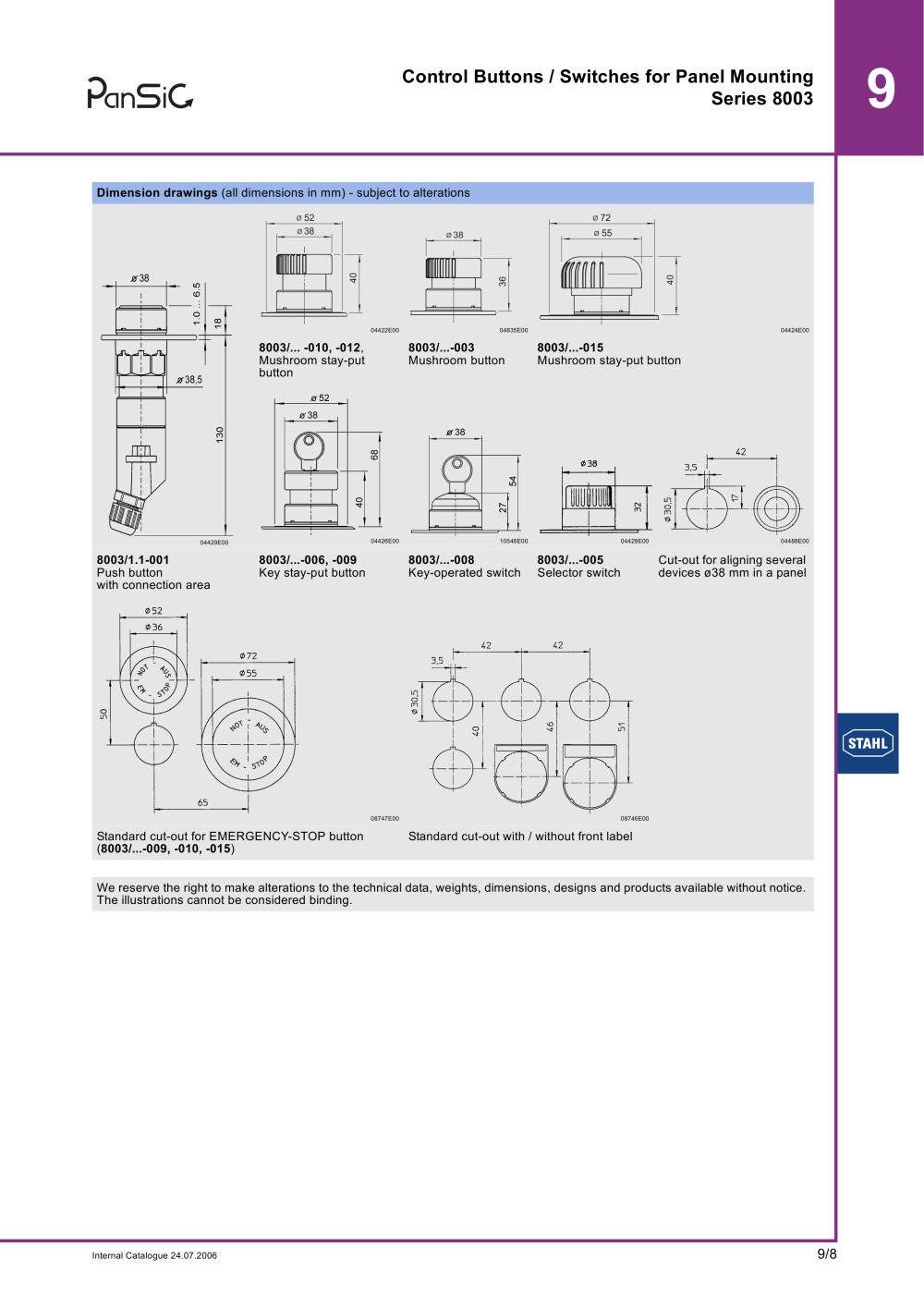

Dimension drawings (all dimensions in mm) - subject to alterations
04429E00
04422E00 04835E00 04424E00
8003/... -010, -012,
Mushroom stay-put
button
8003/...-003
Mushroom button
8003/...-015
Mushroom stay-put button
04426E00 10546E00 04428E00 04488E00
8003/1.1-001
Push button
with connection area
8003/...-006, -009
Key stay-put button
8003/...-008
Key-operated switch
8003/...-005
Selector switch
Cut-out for aligning several
devices ø38 mm in a panel
08747E00 08746E00
Standard cut-out for EMERGENCY-STOP button
(8003/...-009, -010, -015)
Standard cut-out with / without front label
We reserve the right to make alterations to the technical data, weights, dimensions, designs and products available without notice.
The illustrations cannot be considered binding.
40
38
Ø 52
Ø
36
Ø 38 Ø 55
40
Ø 72
