9/4
9

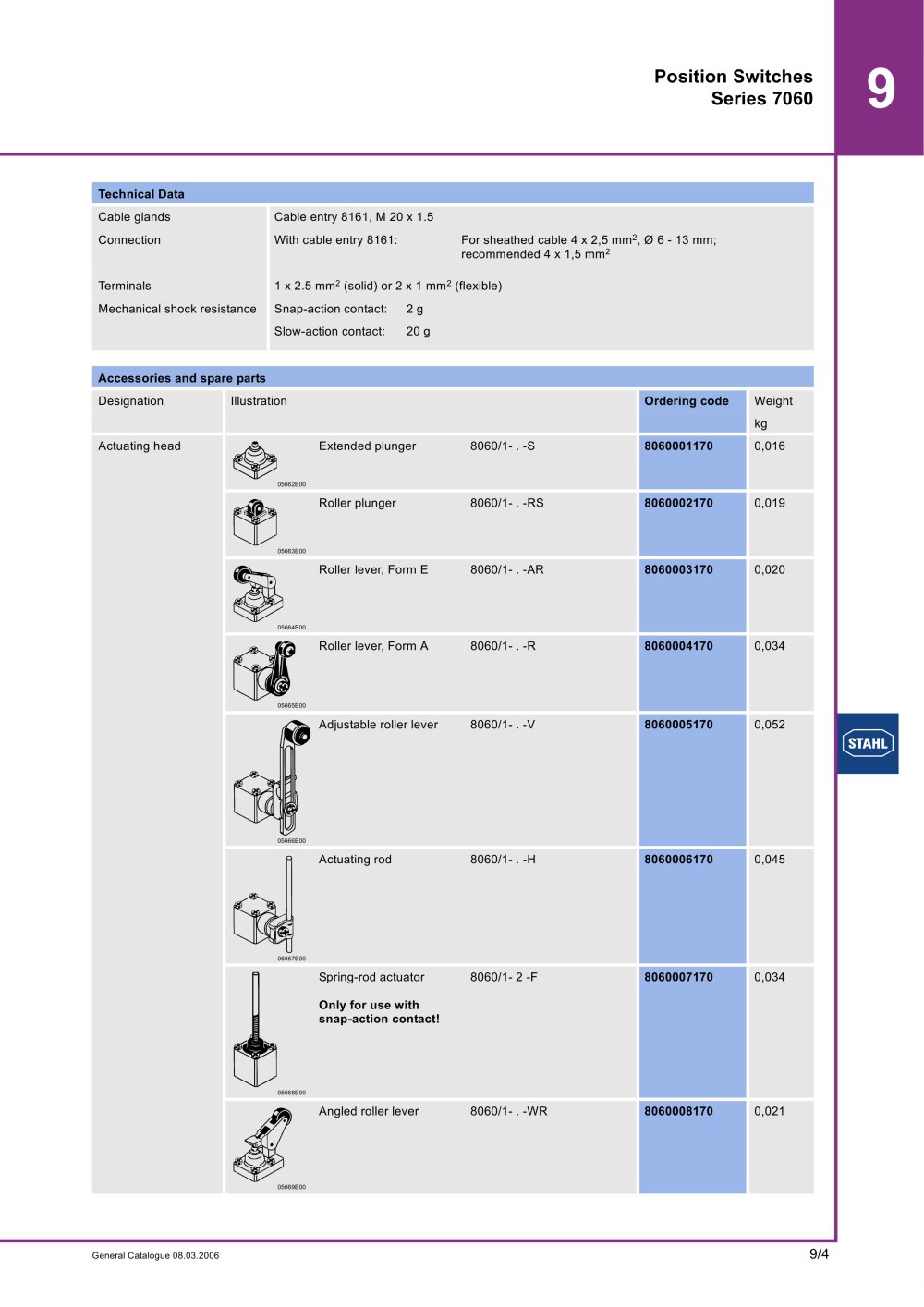

General Catalogue 08.03.2006
Position Switches
Series 7060
Cable glands Cable entry 8161, M 20 x 1.5
Connection
Terminals 1 x 2.5 mm2 (solid) or 2 x 1 mm2 (flexible)
Mechanical shock resistance
Accessories and spare parts
Designation Illustration Ordering code Weight
kg
Actuating head
05662E00
8060001170 0,016
05663E00
8060002170 0,019
05664E00
8060003170 0,020
05665E00
8060004170 0,034
05666E00
8060005170 0,052
05667E00
8060006170 0,045
05668E00
8060007170 0,034
05669E00
8060008170 0,021
Technical Data
With cable entry 8161: For sheathed cable 4 x 2,5 mm2, Ø 6 - 13 mm;
recommended 4 x 1,5 mm2
Snap-action contact: 2 g
Slow-action contact: 20 g
Extended plunger 8060/1- . -S
Roller plunger 8060/1- . -RS
Roller lever, Form E 8060/1- . -AR
Roller lever, Form A 8060/1- . -R
Adjustable roller lever 8060/1- . -V
Actuating rod 8060/1- . -H
Spring-rod actuator
Only for use with
snap-action contact!
8060/1- 2 -F
Angled roller lever 8060/1- . -WR
