Position Switches
Series 8070
General Catalogue 01.12.2006 9/23
9

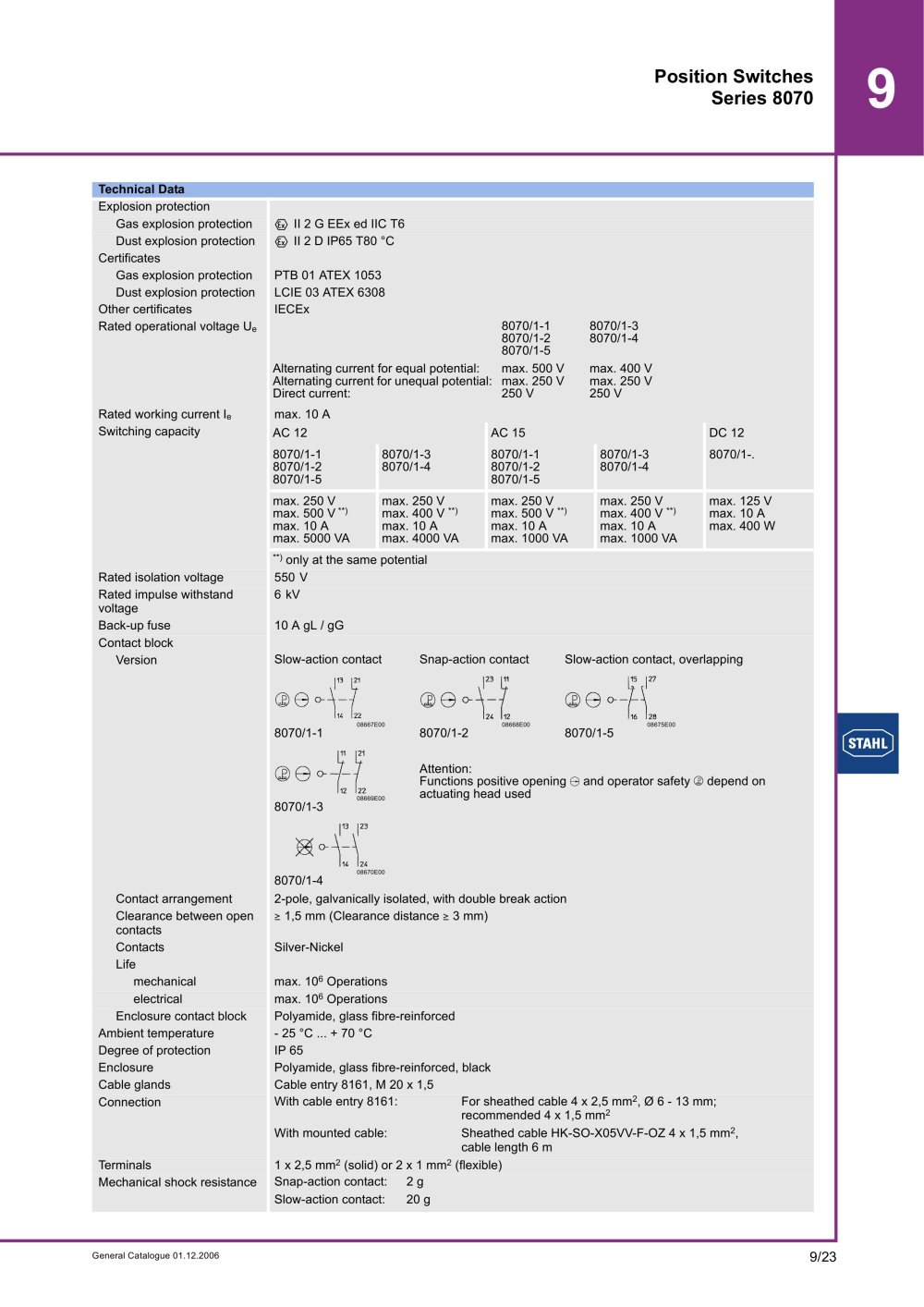

Technical Data
Explosion protection
Gas explosion protection E II 2 G EEx ed IIC T6
Dust explosion protection E II 2 D IP65 T80 °C
Certificates
Gas explosion protection PTB 01 ATEX 1053
Dust explosion protection LCIE 03 ATEX 6308
Other certificates IECEx
Rated operational voltage Ue
Rated working current Ie max. 10 A
Switching capacity
Rated isolation voltage 550 V
Rated impulse withstand
voltage
6 kV
Back-up fuse 10 A gL / gG
Contact block
Version
Contact arrangement 2-pole, galvanically isolated, with double break action
Clearance between open
contacts
) 1,5 mm (Clearance distance ) 3 mm)
Contacts Silver-Nickel
Life
mechanical max. 106 Operations
electrical max. 106 Operations
Enclosure contact block Polyamide, glass fibre-reinforced
Ambient temperature - 25 °C ... + 70 °C
Degree of protection IP 65
Enclosure Polyamide, glass fibre-reinforced, black
Cable glands Cable entry 8161, M 20 x 1,5
Connection
Terminals 1 x 2,5 mm2 (solid) or 2 x 1 mm2 (flexible)
Mechanical shock resistance
8070/1-1
8070/1-2
8070/1-5
8070/1-3
8070/1-4
Alternating current for equal potential:
Alternating current for unequal potential:
Direct current:
max. 500 V
max. 250 V
250 V
max. 400 V
max. 250 V
250 V
AC 12 AC 15 DC 12
8070/1-1
8070/1-2
8070/1-5
8070/1-3
8070/1-4
8070/1-1
8070/1-2
8070/1-5
8070/1-3
8070/1-4
8070/1-.
max. 250 V
max. 500 V **)
max. 10 A
max. 5000 VA
max. 250 V
max. 400 V **)
max. 10 A
max. 4000 VA
max. 250 V
max. 500 V **)
max. 10 A
max. 1000 VA
max. 250 V
max. 400 V **)
max. 10 A
max. 1000 VA
max. 125 V
max. 10 A
max. 400 W
**) only at the same potential
Slow-action contact Snap-action contact Slow-action contact, overlapping
08667E00 8070/1-1 08668E00 8070/1-2 08675E00 8070/1-5
08669E00 8070/1-3
Attention:
Functions positive opening ¯ and operator safety P depend on
actuating head used
08670E00
8070/1-4
With cable entry 8161: For sheathed cable 4 x 2,5 mm2, Ø 6 - 13 mm;
recommended 4 x 1,5 mm2
With mounted cable: Sheathed cable HK-SO-X05VV-F-OZ 4 x 1,5 mm2,
cable length 6 m
Snap-action contact: 2 g
Slow-action contact: 20 g
