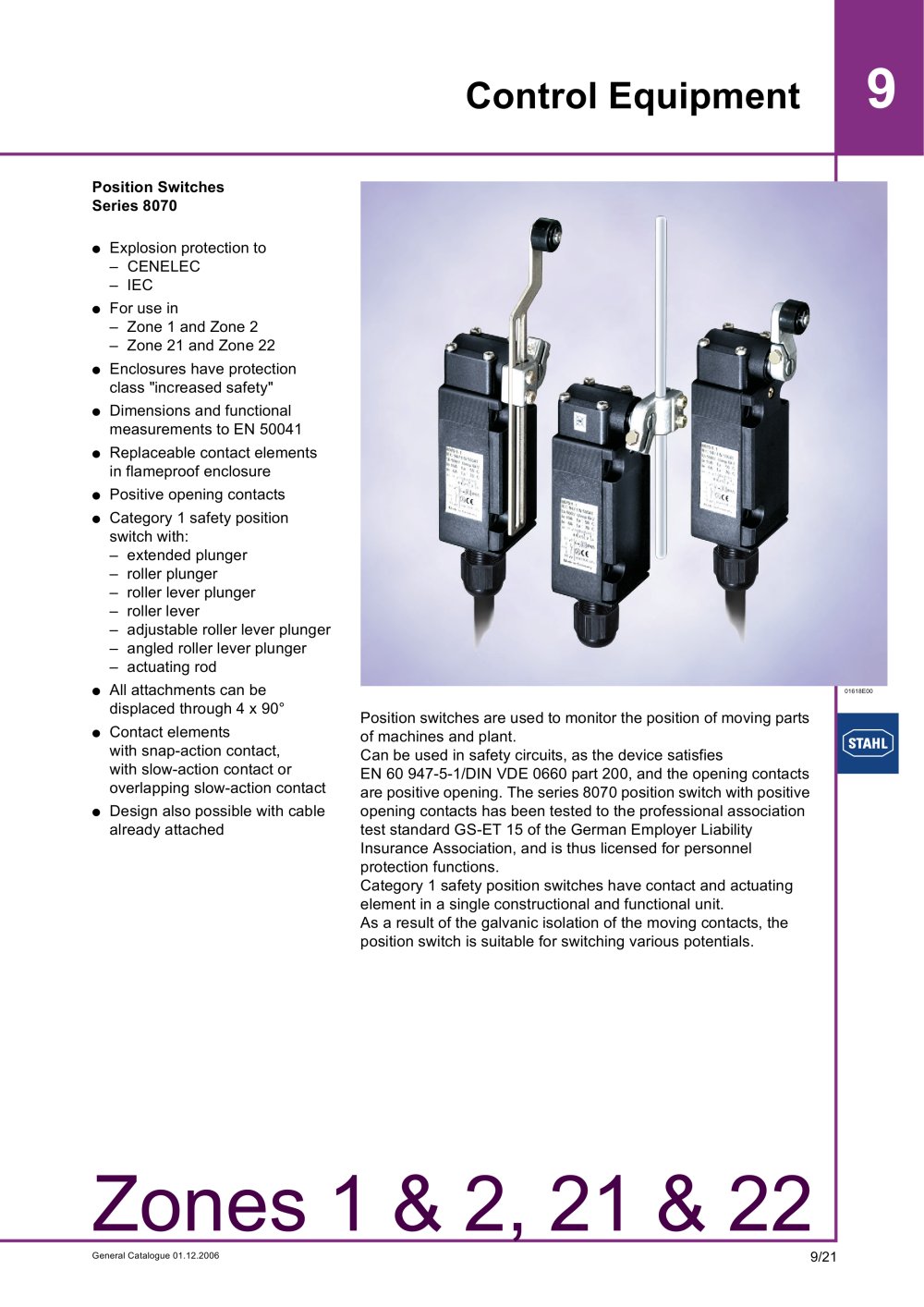

General Catalogue 01.12.2006 9/21 9 Zones 1 & 2, 21 & 22 Control Equipment 01618E00 Position Switches Series 8070 �œ Explosion protection to – CENELEC – IEC �œ For use in – Zone 1 and Zone 2 – Zone 21 and Zone 22 �œ Enclosures have protection class "increased safety" �œ Dimensions and functional measurements to EN 50041 �œ Replaceable contact elements in flameproof enclosure �œ Positive opening contacts �œ Category 1 safety position switch with: – extended plunger – roller plunger – roller lever plunger – roller lever – adjustable roller lever plunger – angled roller lever plunger – actuating rod �œ All attachments can be displaced through 4 x 90° �œ Contact elements with snap-action contact, with slow-action contact or overlapping slow-action contact �œ Design also possible with cable already attached Position switches are used to monitor the position of moving parts of machines and plant. Can be used in safety circuits, as the device satisfies EN 60 947-5-1/DIN VDE 0660 part 200, and the opening contacts are positive opening. The series 8070 position switch with positive opening contacts has been tested to the professional association test standard GS-ET 15 of the German Employer Liability Insurance Association, and is thus licensed for personnel protection functions. Category 1 safety position switches have contact and actuating element in a single constructional and functional unit. As a result of the galvanic isolation of the moving contacts, the position switch is suitable for switching various potentials.
