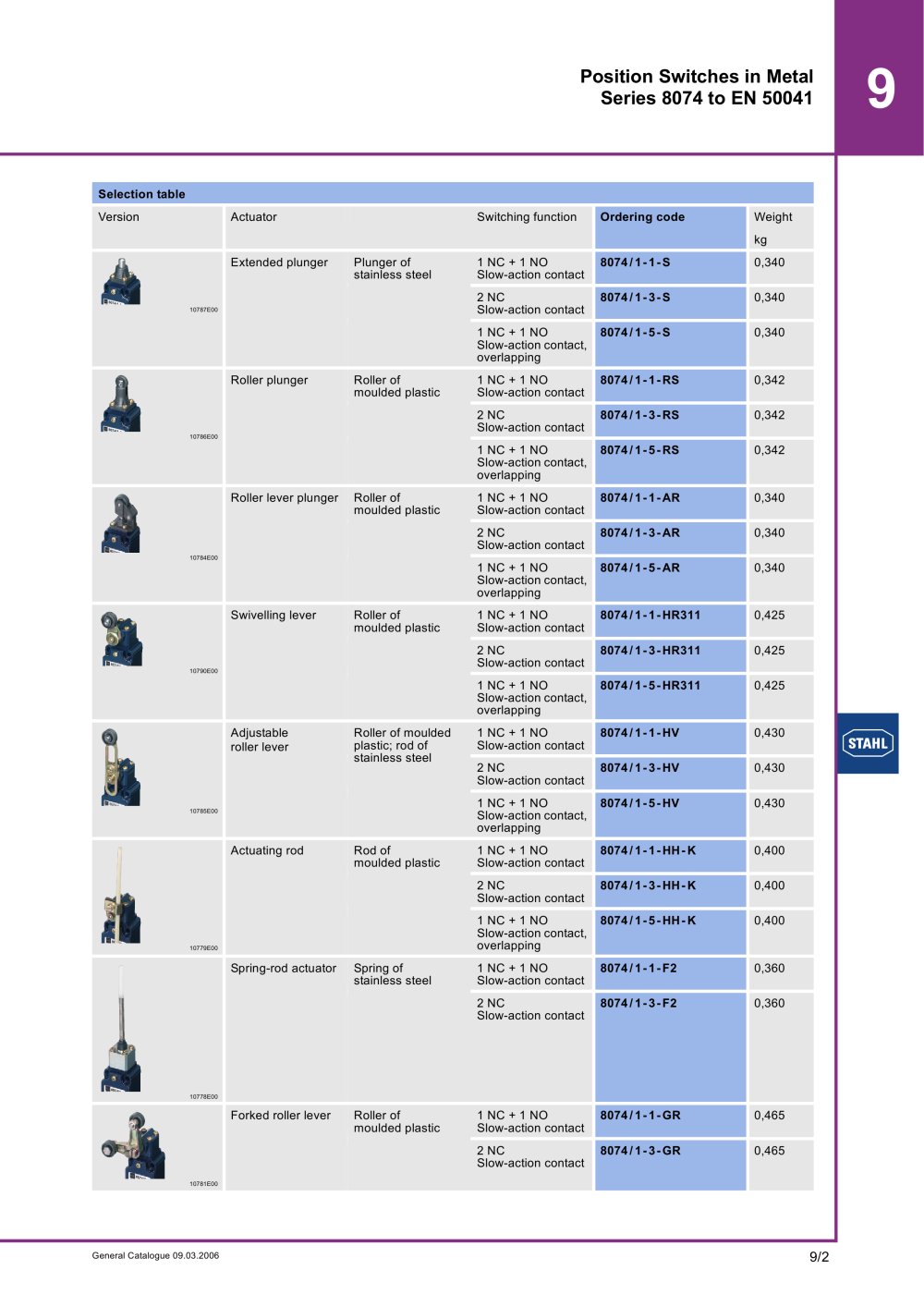

Position Switches in Metal Series 8074 to EN 50041 General Catalogue 09.03.2006 9/2 9 Selection table Version Actuator Switching function Ordering code Weight kg 10787E00 Extended plunger Plunger of stainless steel 1 NC + 1 NO Slow-action contact 8074/1-1-S 0,340 2 NC Slow-action contact 8074/1-3-S 0,340 1 NC + 1 NO Slow-action contact, overlapping 8074/1-5-S 0,340 10786E00 Roller plunger Roller of moulded plastic 1 NC + 1 NO Slow-action contact 8074/1-1-RS 0,342 2 NC Slow-action contact 8074/1-3-RS 0,342 1 NC + 1 NO Slow-action contact, overlapping 8074/1-5-RS 0,342 10784E00 Roller lever plunger Roller of moulded plastic 1 NC + 1 NO Slow-action contact 8074/1-1-AR 0,340 2 NC Slow-action contact 8074/1-3-AR 0,340 1 NC + 1 NO Slow-action contact, overlapping 8074/1-5-AR 0,340 10790E00 Swivelling lever Roller of moulded plastic 1 NC + 1 NO Slow-action contact 8074/1-1-HR311 0,425 2 NC Slow-action contact 8074/1-3-HR311 0,425 1 NC + 1 NO Slow-action contact, overlapping 8074/1-5-HR311 0,425 10785E00 Adjustable roller lever Roller of moulded plastic; rod of stainless steel 1 NC + 1 NO Slow-action contact 8074/1-1-HV 0,430 2 NC Slow-action contact 8074/1-3-HV 0,430 1 NC + 1 NO Slow-action contact, overlapping 8074/1-5-HV 0,430 10779E00 Actuating rod Rod of moulded plastic 1 NC + 1 NO Slow-action contact 8074/1-1-HH-K 0,400 2 NC Slow-action contact 8074/1-3-HH-K 0,400 1 NC + 1 NO Slow-action contact, overlapping 8074/1-5-HH-K 0,400 10778E00 Spring-rod actuator Spring of stainless steel 1 NC + 1 NO Slow-action contact 8074/1-1-F2 0,360 2 NC Slow-action contact 8074/1-3-F2 0,360 10781E00 Forked roller lever Roller of moulded plastic 1 NC + 1 NO Slow-action contact 8074/1-1-GR 0,465 2 NC Slow-action contact 8074/1-3-GR 0,465
