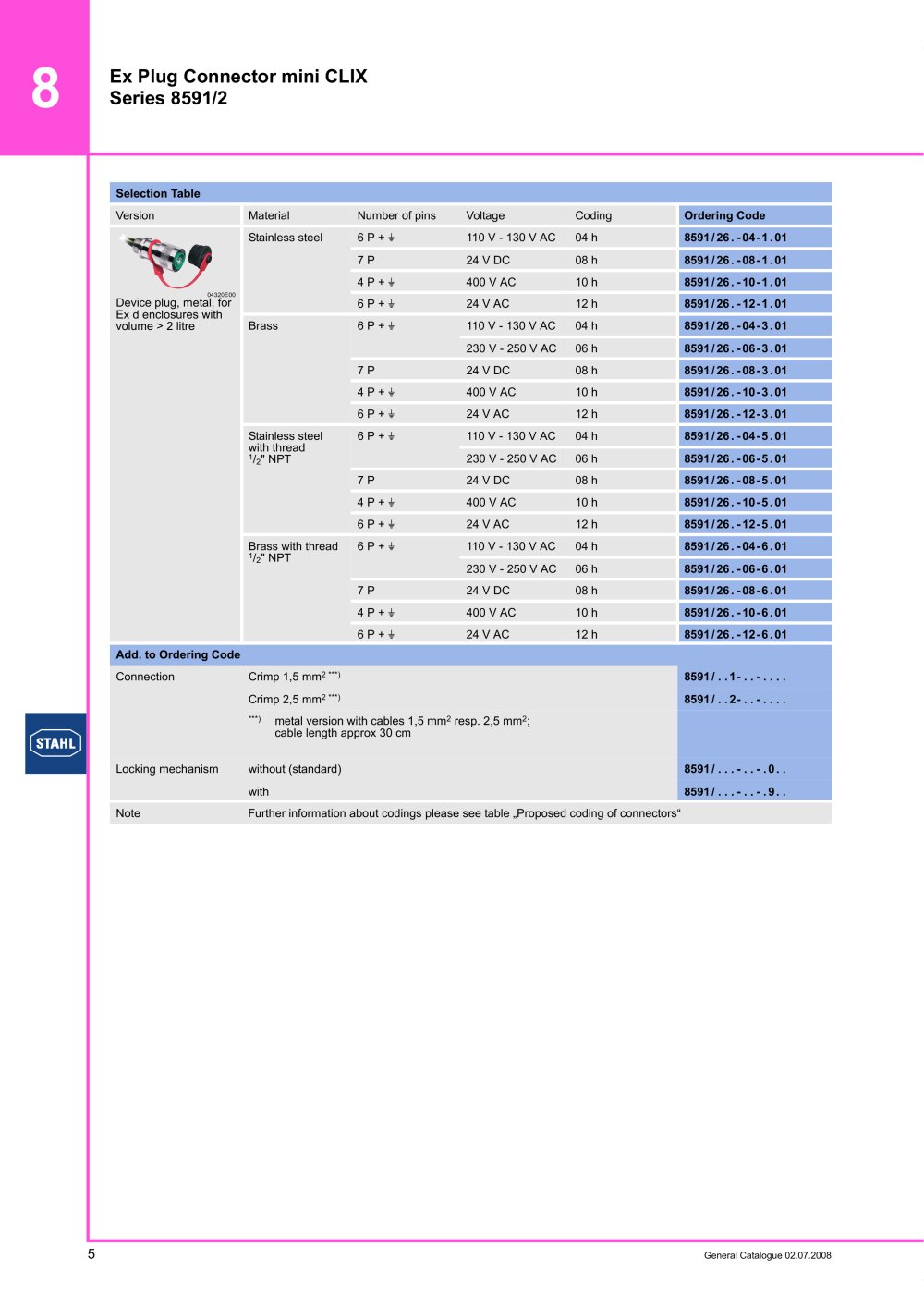

Ex Plug Connector mini CLIX
Series 8591/2
Selection Table
Version Material Number of pins Voltage Coding Ordering Code
04320E00
Device plug, metal, for
Ex d enclosures with
volume > 2 litre
Stainless steel 6 P + ¿ 110 V - 130 V AC 04 h 8591/26.-04-1.01
7 P 24 V DC 08 h 8591/26.-08-1.01
4 P + ¿ 400 V AC 10 h 8591/26.-10-1.01
6 P + ¿ 24 V AC 12 h 8591/26.-12-1.01
Brass 6 P + ¿ 110 V - 130 V AC 04 h 8591/26.-04-3.01
230 V - 250 V AC 06 h 8591/26.-06-3.01
7 P 24 V DC 08 h 8591/26.-08-3.01
4 P + ¿ 400 V AC 10 h 8591/26.-10-3.01
6 P + ¿ 24 V AC 12 h 8591/26.-12-3.01
Stainless steel
with thread
1/2" NPT
6 P + ¿ 110 V - 130 V AC 04 h 8591/26.-04-5.01
230 V - 250 V AC 06 h 8591/26.-06-5.01
7 P 24 V DC 08 h 8591/26.-08-5.01
4 P + ¿ 400 V AC 10 h 8591/26.-10-5.01
6 P + ¿ 24 V AC 12 h 8591/26.-12-5.01
Brass with thread
1/2" NPT
6 P + ¿ 110 V - 130 V AC 04 h 8591/26.-04-6.01
230 V - 250 V AC 06 h 8591/26.-06-6.01
7 P 24 V DC 08 h 8591/26.-08-6.01
4 P + ¿ 400 V AC 10 h 8591/26.-10-6.01
6 P + ¿ 24 V AC 12 h 8591/26.-12-6.01
Add. to Ordering Code
Connection Crimp 1,5 mm2 ***) 8591/..1-..-....
Crimp 2,5 mm2 ***) 8591/..2-..-....
Locking mechanism without (standard) 8591/...-..-.0..
with 8591/...-..-.9..
Note Further information about codings please see table „Proposed coding of connectors“
***) metal version with cables 1,5 mm2 resp. 2,5 mm2;
cable length approx 30 cm
