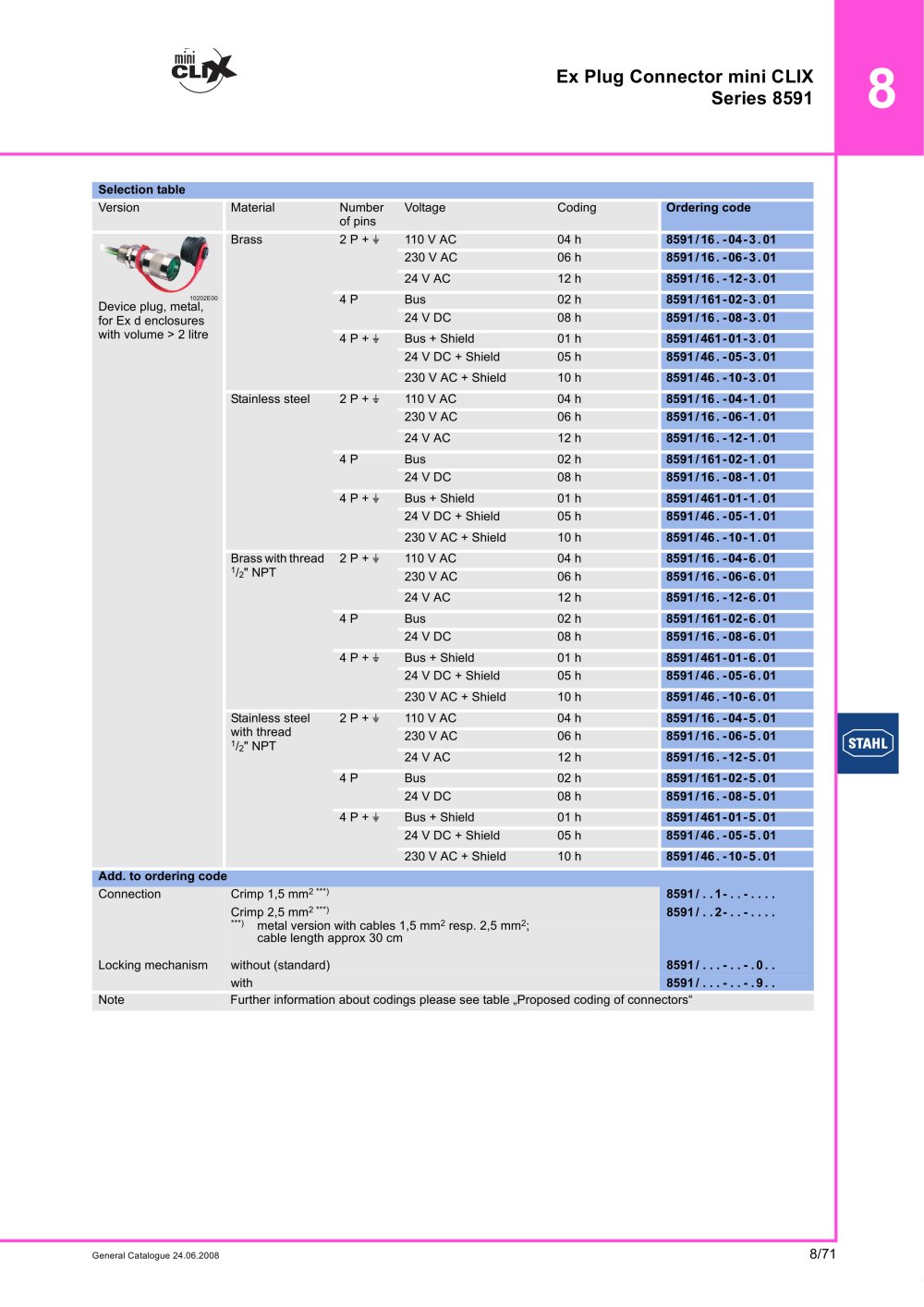

8/71 8 General Catalogue 24.06.2008 Ex Plug Connector mini CLIX Series 8591 Selection table Version Material Number of pins Voltage Coding Ordering code 10202E00 Device plug, metal, for Ex d enclosures with volume > 2 litre Brass 2 P + ¿ 110 V AC 04 h 8591/16.-04-3.01 230 V AC 06 h 8591/16.-06-3.01 24 V AC 12 h 8591/16.-12-3.01 4 P Bus 02 h 8591/161-02-3.01 24 V DC 08 h 8591/16.-08-3.01 4 P + ¿ Bus + Shield 01 h 8591/461-01-3.01 24 V DC + Shield 05 h 8591/46.-05-3.01 230 V AC + Shield 10 h 8591/46.-10-3.01 Stainless steel 2 P + ¿ 110 V AC 04 h 8591/16.-04-1.01 230 V AC 06 h 8591/16.-06-1.01 24 V AC 12 h 8591/16.-12-1.01 4 P Bus 02 h 8591/161-02-1.01 24 V DC 08 h 8591/16.-08-1.01 4 P + ¿ Bus + Shield 01 h 8591/461-01-1.01 24 V DC + Shield 05 h 8591/46.-05-1.01 230 V AC + Shield 10 h 8591/46.-10-1.01 Brass with thread 1/2" NPT 2 P + ¿ 110 V AC 04 h 8591/16.-04-6.01 230 V AC 06 h 8591/16.-06-6.01 24 V AC 12 h 8591/16.-12-6.01 4 P Bus 02 h 8591/161-02-6.01 24 V DC 08 h 8591/16.-08-6.01 4 P + ¿ Bus + Shield 01 h 8591/461-01-6.01 24 V DC + Shield 05 h 8591/46.-05-6.01 230 V AC + Shield 10 h 8591/46.-10-6.01 Stainless steel with thread 1/2" NPT 2 P + ¿ 110 V AC 04 h 8591/16.-04-5.01 230 V AC 06 h 8591/16.-06-5.01 24 V AC 12 h 8591/16.-12-5.01 4 P Bus 02 h 8591/161-02-5.01 24 V DC 08 h 8591/16.-08-5.01 4 P + ¿ Bus + Shield 01 h 8591/461-01-5.01 24 V DC + Shield 05 h 8591/46.-05-5.01 230 V AC + Shield 10 h 8591/46.-10-5.01 Add. to ordering code Connection Crimp 1,5 mm2 ***) 8591/..1-..-.... Crimp 2,5 mm2 ***) 8591/..2-..-.... Locking mechanism without (standard) 8591/...-..-.0.. with 8591/...-..-.9.. Note Further information about codings please see table „Proposed coding of connectors“ ***) metal version with cables 1,5 mm2 resp. 2,5 mm2; cable length approx 30 cm
