8/2
8

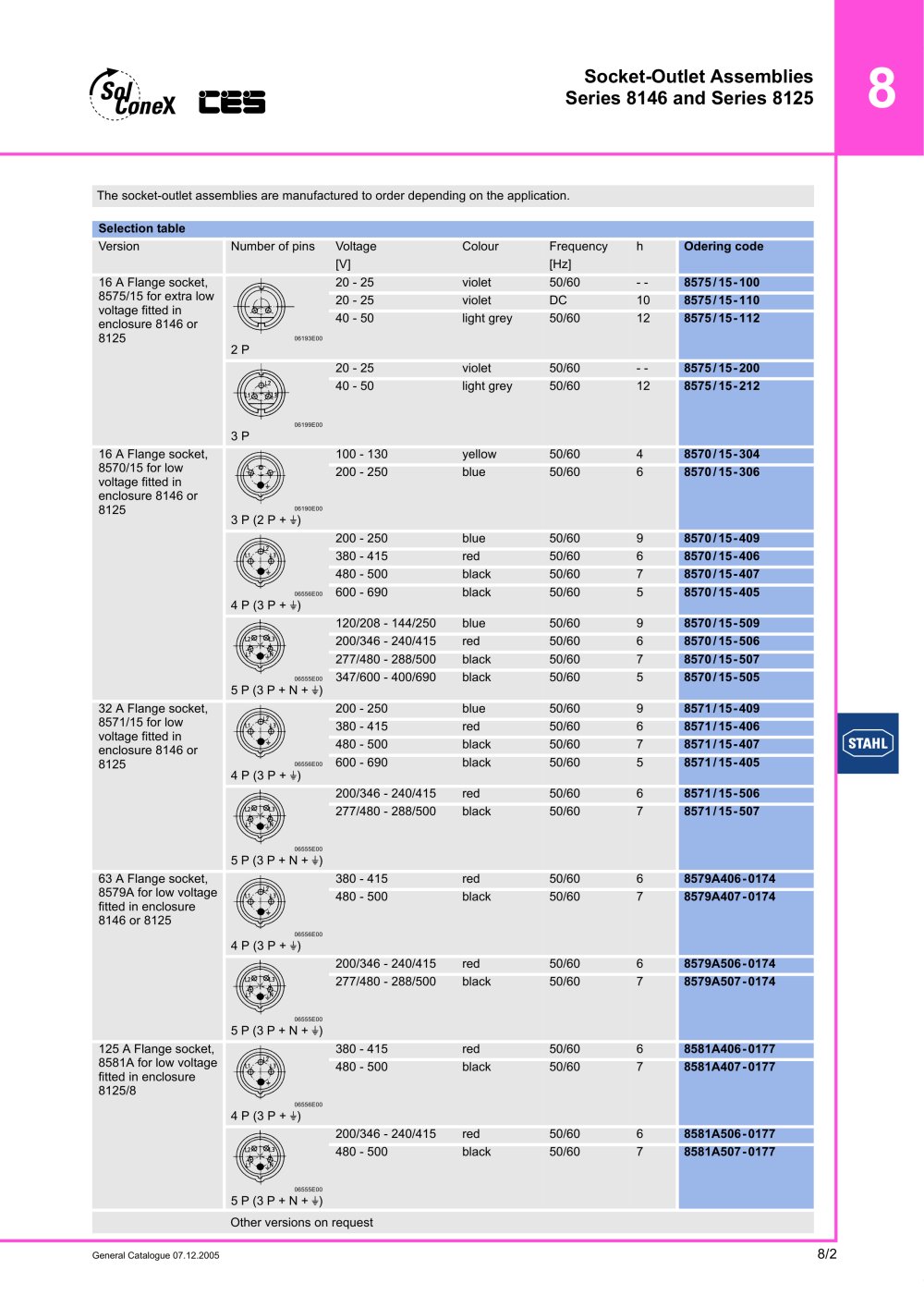

General Catalogue 07.12.2005
Socket-Outlet Assemblies
Series 8146 and Series 8125
The socket-outlet assemblies are manufactured to order depending on the application.
Selection table
Version Number of pins Voltage Colour Frequency h Odering code
[V] [Hz]
16 A Flange socket,
8575/15 for extra low
voltage fitted in
enclosure 8146 or
8125 06193E00
2 P
20 - 25 violet 50/60 - - 8575/15-100
20 - 25 violet DC 10 8575/15-110
40 - 50 light grey 50/60 12 8575/15-112
06199E00
3 P
20 - 25 violet 50/60 - - 8575/15-200
40 - 50 light grey 50/60 12 8575/15-212
16 A Flange socket,
8570/15 for low
voltage fitted in
enclosure 8146 or
8125 06190E00
3 P (2 P + ¿)
100 - 130 yellow 50/60 4 8570/15-304
200 - 250 blue 50/60 6 8570/15-306
06556E00
4 P (3 P + ¿)
200 - 250 blue 50/60 9 8570/15-409
380 - 415 red 50/60 6 8570/15-406
480 - 500 black 50/60 7 8570/15-407
600 - 690 black 50/60 5 8570/15-405
06555E00
5 P (3 P + N + ¿)
120/208 - 144/250 blue 50/60 9 8570/15-509
200/346 - 240/415 red 50/60 6 8570/15-506
277/480 - 288/500 black 50/60 7 8570/15-507
347/600 - 400/690 black 50/60 5 8570/15-505
32 A Flange socket,
8571/15 for low
voltage fitted in
enclosure 8146 or
8125 06556E00
4 P (3 P + ¿)
200 - 250 blue 50/60 9 8571/15-409
380 - 415 red 50/60 6 8571/15-406
480 - 500 black 50/60 7 8571/15-407
600 - 690 black 50/60 5 8571/15-405
06555E00
5 P (3 P + N + ¿)
200/346 - 240/415 red 50/60 6 8571/15-506
277/480 - 288/500 black 50/60 7 8571/15-507
63 A Flange socket,
8579A for low voltage
fitted in enclosure
8146 or 8125
06556E00
4 P (3 P + ¿)
380 - 415 red 50/60 6 8579A406-0174
480 - 500 black 50/60 7 8579A407-0174
06555E00
5 P (3 P + N + ¿)
200/346 - 240/415 red 50/60 6 8579A506-0174
277/480 - 288/500 black 50/60 7 8579A507-0174
125 A Flange socket,
8581A for low voltage
fitted in enclosure
8125/8
06556E00
4 P (3 P + ¿)
380 - 415 red 50/60 6 8581A406-0177
480 - 500 black 50/60 7 8581A407-0177
06555E00
5 P (3 P + N + ¿)
200/346 - 240/415 red 50/60 6 8581A506-0177
480 - 500 black 50/60 7 8581A507-0177
Other versions on request
