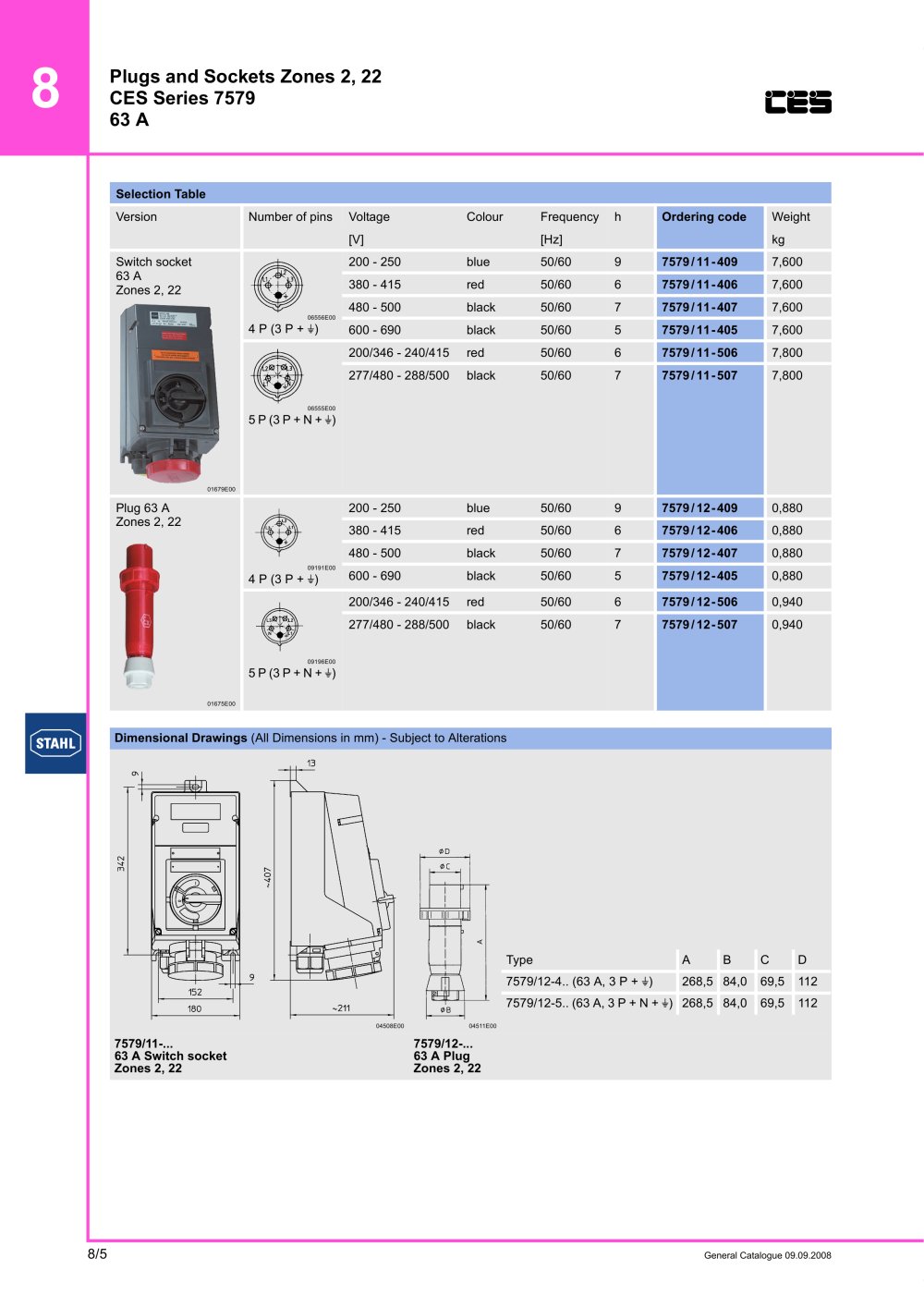

8/5 8 General Catalogue 09.09.2008 Plugs and Sockets Zones 2, 22 CES Series 7579 63 A Selection Table Version Number of pins Voltage Colour Frequency h Ordering code Weight [V] [Hz] kg Switch socket 63 A Zones 2, 22 01679E00 06556E00 4 P (3 P + ¿) 200 - 250 blue 50/60 9 7579/11-409 7,600 380 - 415 red 50/60 6 7579/11-406 7,600 480 - 500 black 50/60 7 7579/11-407 7,600 600 - 690 black 50/60 5 7579/11-405 7,600 06555E00 5 P (3 P + N + ¿) 200/346 - 240/415 red 50/60 6 7579/11-506 7,800 277/480 - 288/500 black 50/60 7 7579/11-507 7,800 Plug 63 A Zones 2, 22 01675E00 09191E00 4 P (3 P + ¿) 200 - 250 blue 50/60 9 7579/12-409 0,880 380 - 415 red 50/60 6 7579/12-406 0,880 480 - 500 black 50/60 7 7579/12-407 0,880 600 - 690 black 50/60 5 7579/12-405 0,880 09196E00 5 P (3 P + N + ¿) 200/346 - 240/415 red 50/60 6 7579/12-506 0,940 277/480 - 288/500 black 50/60 7 7579/12-507 0,940 Dimensional Drawings (All Dimensions in mm) - Subject to Alterations 04508E00 04511E00 7579/11-... 63 A Switch socket Zones 2, 22 7579/12-... 63 A Plug Zones 2, 22 Type A B C D 7579/12-4.. (63 A, 3 P + ¿) 268,5 84,0 69,5 112 7579/12-5.. (63 A, 3 P + N + ¿) 268,5 84,0 69,5 112
