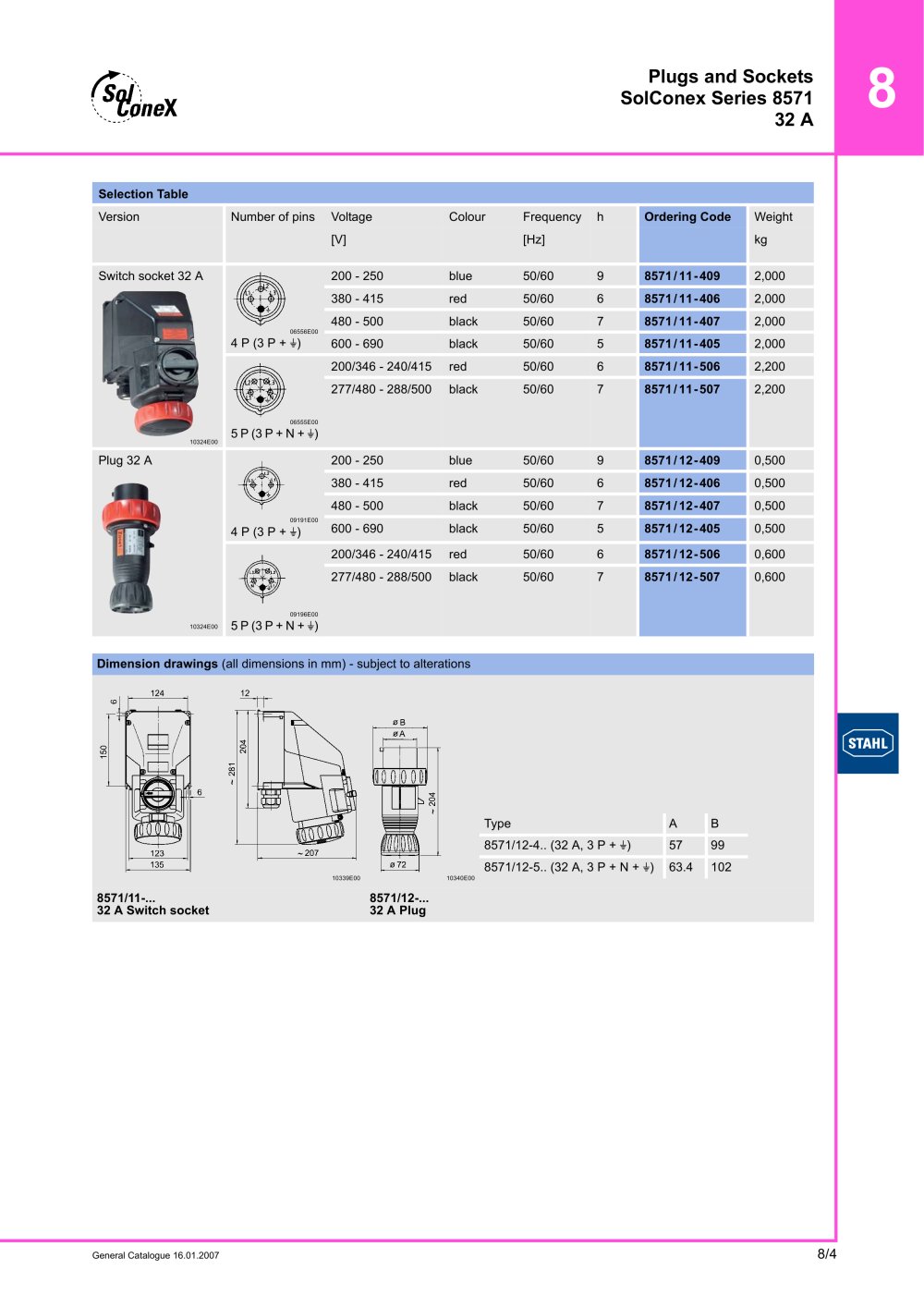

8/4 8 General Catalogue 16.01.2007 Plugs and Sockets SolConex Series 8571 32 A Selection Table Version Number of pins Voltage Colour Frequency h Ordering Code Weight [V] [Hz] kg Switch socket 32 A 10324E00 06556E00 4 P (3 P + ¿) 200 - 250 blue 50/60 9 8571/11-409 2,000 380 - 415 red 50/60 6 8571/11-406 2,000 480 - 500 black 50/60 7 8571/11-407 2,000 600 - 690 black 50/60 5 8571/11-405 2,000 06555E00 5 P (3 P + N + ¿) 200/346 - 240/415 red 50/60 6 8571/11-506 2,200 277/480 - 288/500 black 50/60 7 8571/11-507 2,200 Plug 32 A 10324E00 09191E00 4 P (3 P + ¿) 200 - 250 blue 50/60 9 8571/12-409 0,500 380 - 415 red 50/60 6 8571/12-406 0,500 480 - 500 black 50/60 7 8571/12-407 0,500 600 - 690 black 50/60 5 8571/12-405 0,500 09196E00 5 P (3 P + N + ¿) 200/346 - 240/415 red 50/60 6 8571/12-506 0,600 277/480 - 288/500 black 50/60 7 8571/12-507 0,600 Dimension drawings (all dimensions in mm) - subject to alterations 10339E00 10340E00 8571/11-... 32 A Switch socket 8571/12-... 32 A Plug Type A B 8571/12-4.. (32 A, 3 P + ¿) 57 99 8571/12-5.. (32 A, 3 P + N + ¿) 63.4 102
