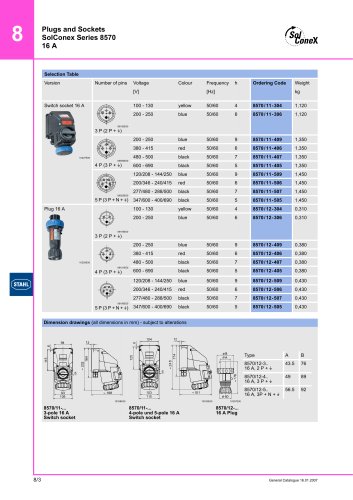

8/3
8
General Catalogue 16.01.2007
Plugs and Sockets
SolConex Series 8570
16 A
Selection Table
Version Number of pins Voltage Colour Frequency h Ordering Code Weight
[V] [Hz] kg
Switch socket 16 A
10327E00
06190E00
3 P (2 P + ¿)
100 - 130 yellow 50/60 4 8570/11-304 1,120
200 - 250 blue 50/60 6 8570/11-306 1,120
06556E00
4 P (3 P + ¿)
200 - 250 blue 50/60 9 8570/11-409 1,350
380 - 415 red 50/60 6 8570/11-406 1,350
480 - 500 black 50/60 7 8570/11-407 1,350
600 - 690 black 50/60 5 8570/11-405 1,350
06555E00
5 P (3 P + N + ¿)
120/208 - 144/250 blue 50/60 9 8570/11-509 1,450
200/346 - 240/415 red 50/60 6 8570/11-506 1,450
277/480 - 288/500 black 50/60 7 8570/11-507 1,450
347/600 - 400/690 black 50/60 5 8570/11-505 1,450
Plug 16 A
10329E00
09195E00
3 P (2 P + ¿)
100 - 130 yellow 50/60 4 8570/12-304 0,310
200 - 250 blue 50/60 6 8570/12-306 0,310
09191E00
4 P (3 P + ¿)
200 - 250 blue 50/60 9 8570/12-409 0,380
380 - 415 red 50/60 6 8570/12-406 0,380
480 - 500 black 50/60 7 8570/12-407 0,380
600 - 690 black 50/60 5 8570/12-405 0,380
09196E00
5 P (3 P + N + ¿)
120/208 - 144/250 blue 50/60 9 8570/12-509 0,430
200/346 - 240/415 red 50/60 6 8570/12-506 0,430
277/480 - 288/500 black 50/60 7 8570/12-507 0,430
347/600 - 400/690 black 50/60 5 8570/12-505 0,430
Dimension drawings (all dimensions in mm) - subject to alterations
10338E00 10333E00 10337E00
8570/11-...
3-pole 16 A
Switch socket
8570/11-...
4-pole und 5-pole 16 A
Switch socket
8570/12-...
16 A Plug
Type A B
8570/12-3..
16 A, 2 P + ¿
43.5 76
8570/12-4..
16 A, 3 P + ¿
49 89
8570/12-5..
16 A, 3P + N + ¿
56.5 92
