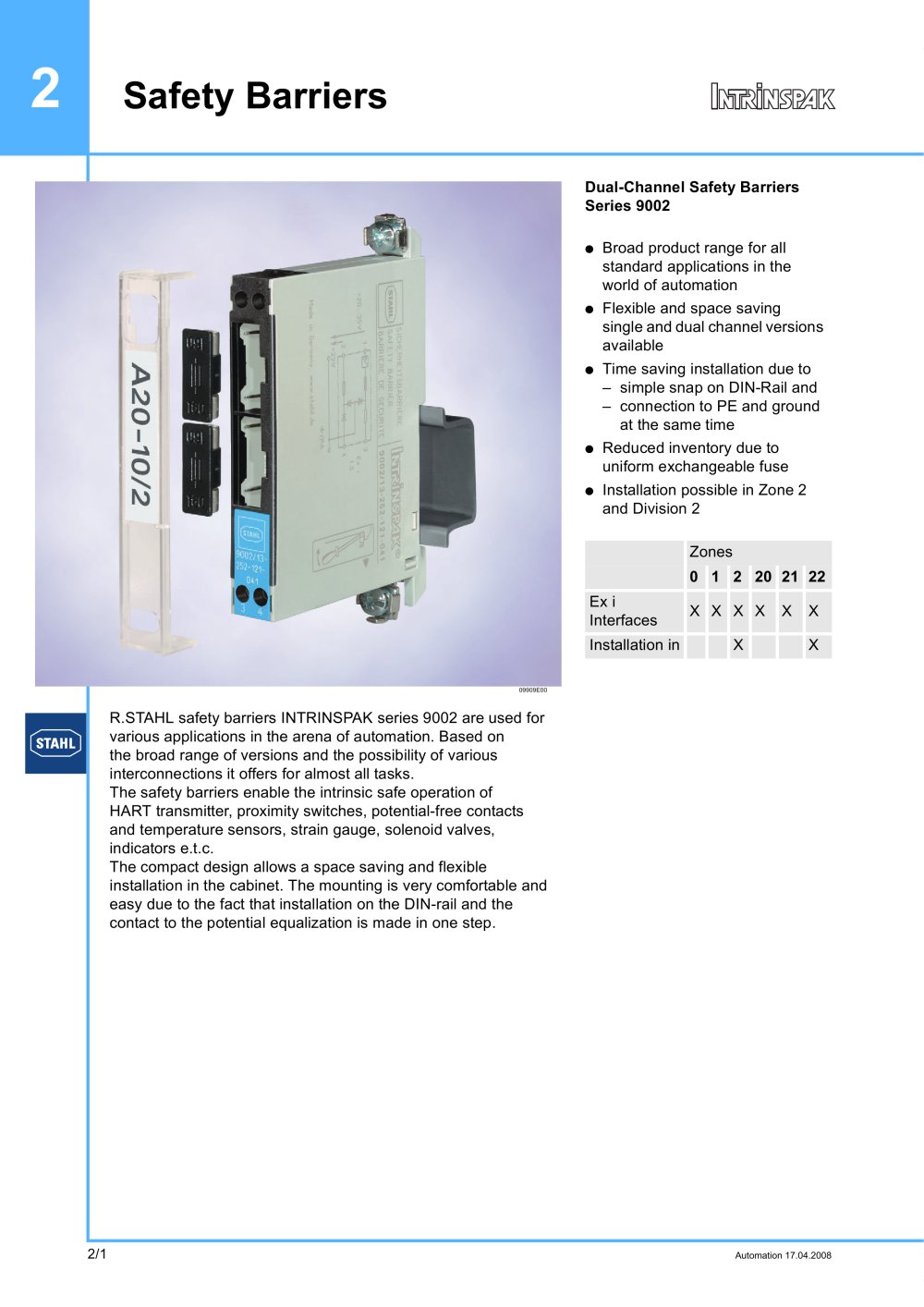

2 Safety Barriers
2/1 Automation 17.04.2008
09909E00
Dual-Channel Safety Barriers
Series 9002
Broad product range for all
standard applications in the
world of automation
Flexible and space saving
single and dual channel versions
available
Time saving installation due to
simple snap on DIN-Rail and
connection to PE and ground
at the same time
Reduced inventory due to
uniform exchangeable fuse
Installation possible in Zone 2
and Division 2
Zones
0 1 2 20 21 22
Ex i
Interfaces X X X X X X
Installation in X X
R.STAHL safety barriers INTRINSPAK series 9002 are used for
various applications in the arena of automation. Based on
the broad range of versions and the possibility of various
interconnections it offers for almost all tasks.
The safety barriers enable the intrinsic safe operation of
HART transmitter, proximity switches, potential-free contacts
and temperature sensors, strain gauge, solenoid valves,
indicators e.t.c.
The compact design allows a space saving and flexible
installation in the cabinet. The mounting is very comfortable and
easy due to the fact that installation on the DIN-rail and the
contact to the potential equalization is made in one step.
