Terminal Boxes
Series 8146

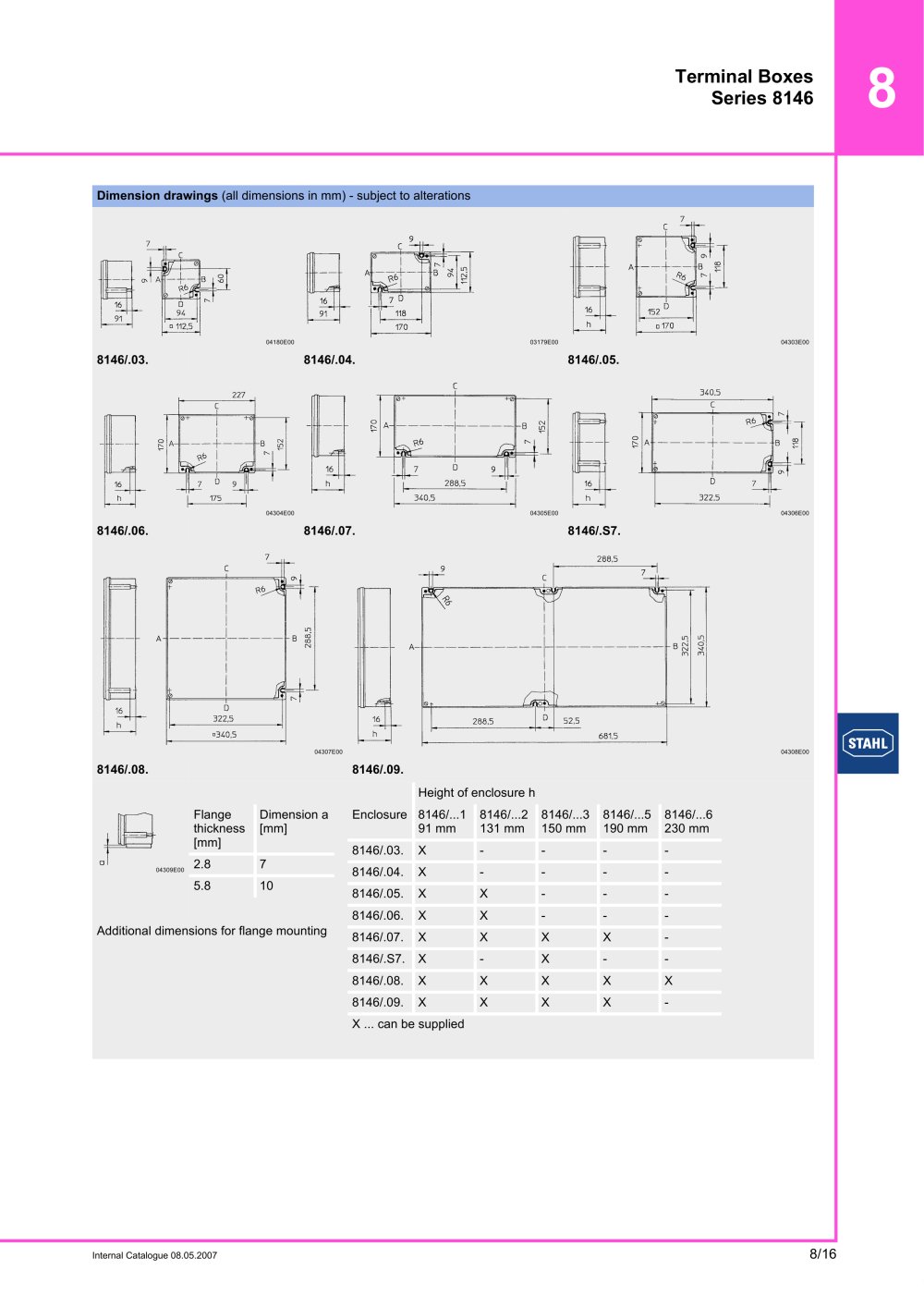

Dimension drawings (all dimensions in mm) - subject to alterations
04180E00 03179E00 04303E00
8146/.03. 8146/.04. 8146/.05.
04304E00 04305E00 04306E00
8146/.06. 8146/.07. 8146/.S7.
04307E00 04308E00
8146/.08. 8146/.09.
04309E00
Additional dimensions for flange mounting
Height of enclosure h
Enclosure 8146/...1
91 mm
8146/...2
131 mm
8146/...3
150 mm
8146/...5
190 mm
8146/...6
230 mm
8146/.03. X - - - -
8146/.04. X - - - -
8146/.05. X X - - -
8146/.06. X X - - -
8146/.07. X X X X -
8146/.S7. X - X - -
8146/.08. X X X X X
8146/.09. X X X X -
X ... can be supplied
Flange
thickness
[mm]
Dimension a
[mm]
2.8 7
5.8 10
