Automation 17.04.2008
Single-Channel Safety Barrieres
Series 9001

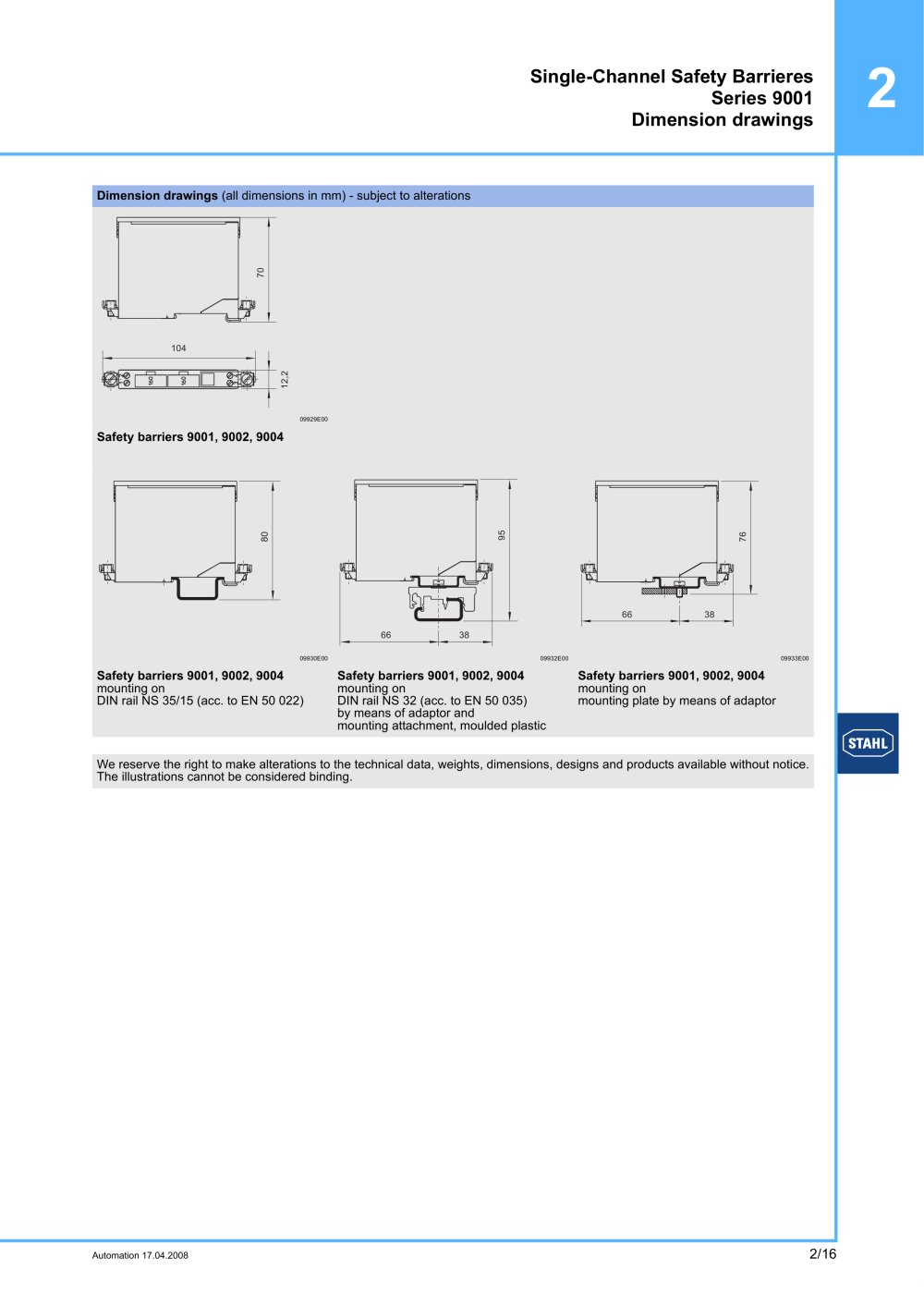

Dimension drawings
Dimension drawings (all dimensions in mm) - subject to alterations
09929E00
Safety barriers 9001, 9002, 9004
09930E00 09932E00 09933E00
Safety barriers 9001, 9002, 9004
mounting on
DIN rail NS 35/15 (acc. to EN 50 022)
Safety barriers 9001, 9002, 9004
mounting on
DIN rail NS 32 (acc. to EN 50 035)
by means of adaptor and
mounting attachment, moulded plastic
Safety barriers 9001, 9002, 9004
mounting on
mounting plate by means of adaptor
We reserve the right to make alterations to the technical data, weights, dimensions, designs and products available without notice.
The illustrations cannot be considered binding.
70
104
12,2
80
95
66 38
76
66 38
