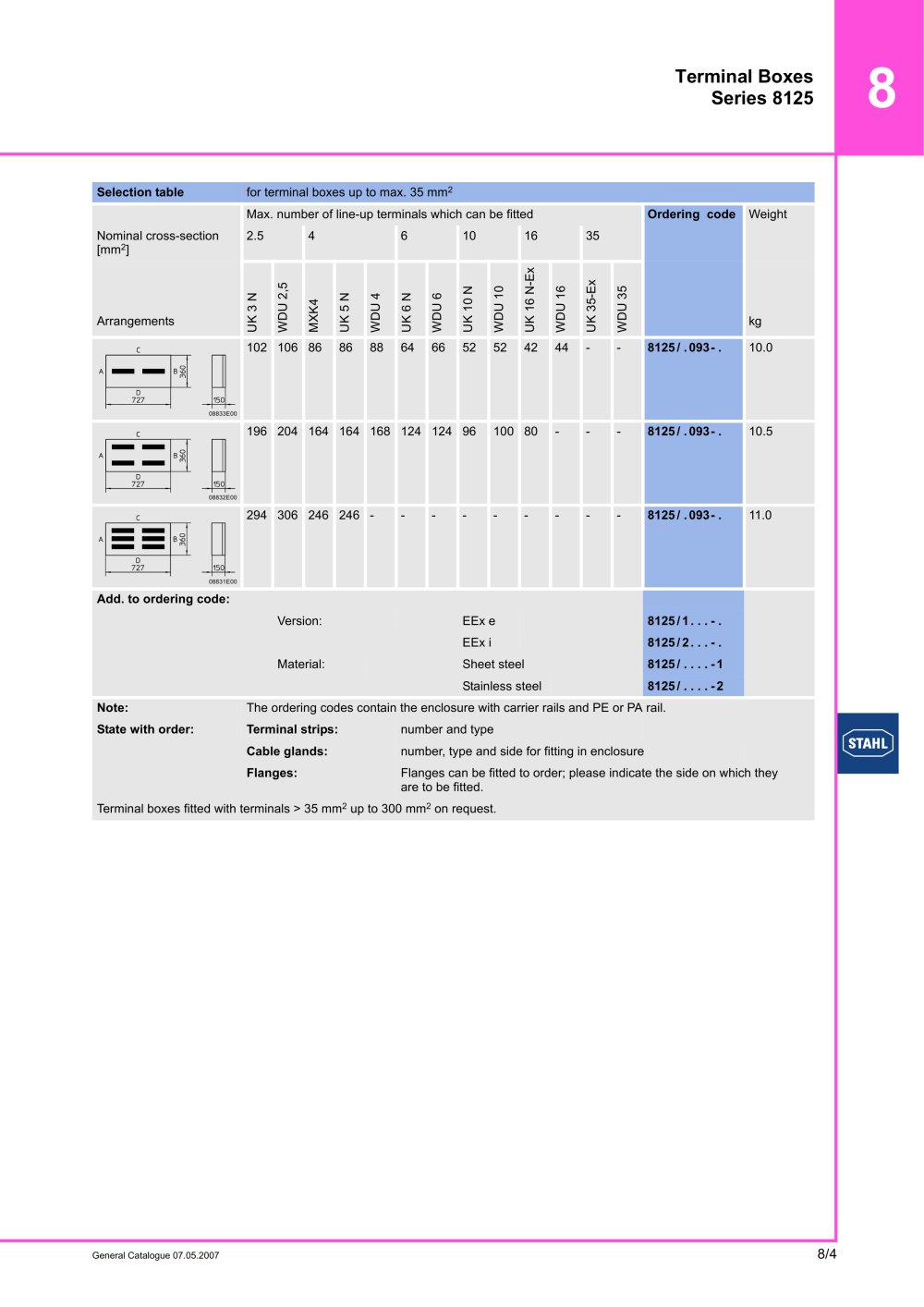

8/4 8 General Catalogue 07.05.2007 Terminal Boxes Series 8125 08833E00 102 106 86 86 88 64 66 52 52 42 44 - - 8125/.093-. 10.0 08832E00 196 204 164 164 168 124 124 96 100 80 - - - 8125/.093-. 10.5 08831E00 294 306 246 246 - - - - - - - - - 8125/.093-. 11.0 Selection table for terminal boxes up to max. 35 mm2 Max. number of line-up terminals which can be fitted Ordering code Weight Nominal cross-section [mm2] 2.5 4 6 10 16 35 Arrangements UK 3 N WDU 2,5 MXK4 UK 5 N WDU 4 UK 6 N WDU 6 UK 10 N WDU 10 UK 16 N-Ex WDU 16 UK 35-Ex WDU 35 kg Add. to ordering code: Version: EEx e 8125/1...-. EEx i 8125/2...-. Material: Sheet steel 8125/....-1 Stainless steel 8125/....-2 Note: The ordering codes contain the enclosure with carrier rails and PE or PA rail. State with order: Terminal strips: number and type Cable glands: number, type and side for fitting in enclosure Flanges: Flanges can be fitted to order; please indicate the side on which they are to be fitted. Terminal boxes fitted with terminals > 35 mm2 up to 300 mm2 on request.
