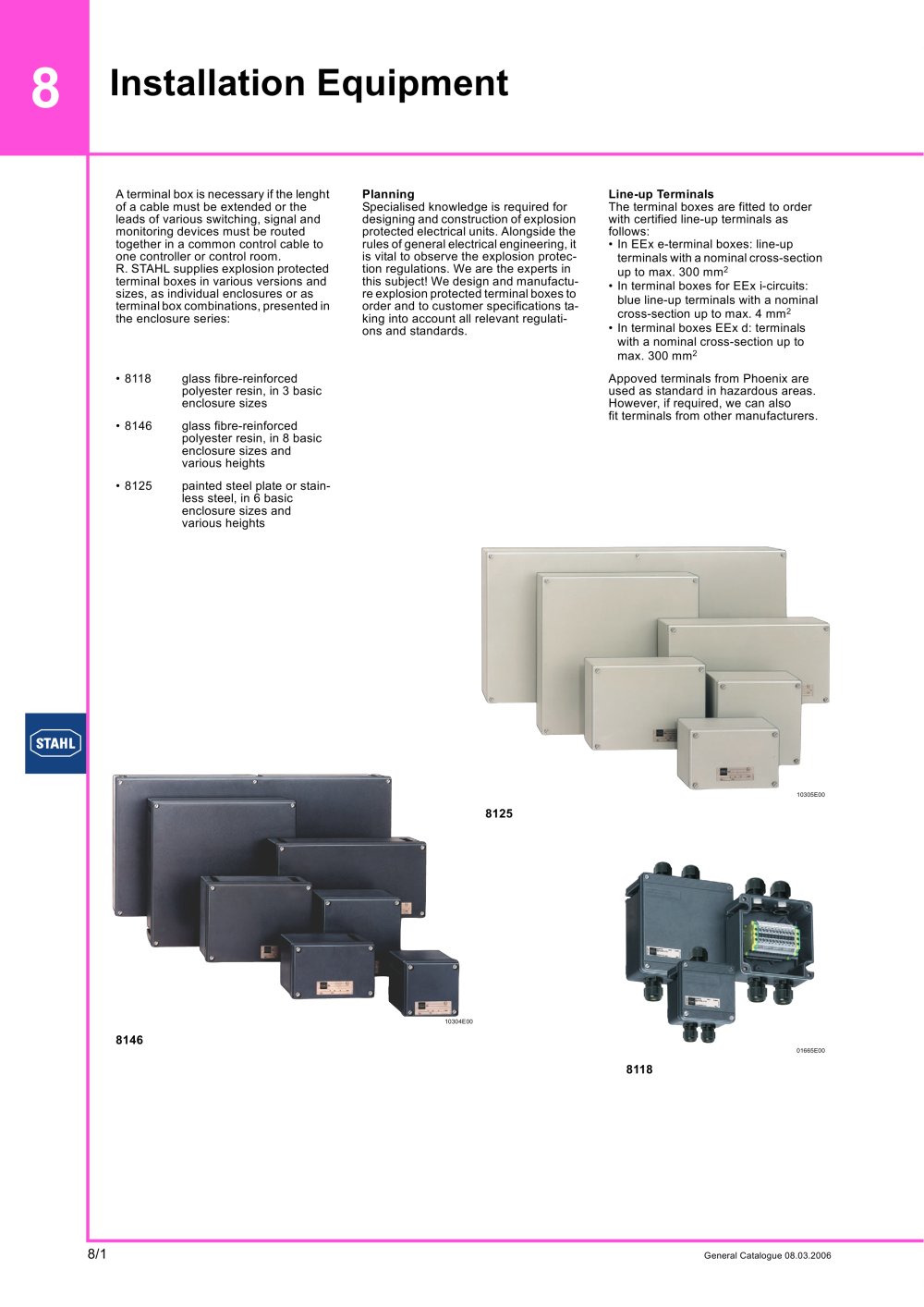

8/1 8 General Catalogue 08.03.2006 Installation Equipment A terminal box is necessary if the lenght of a cable must be extended or the leads of various switching, signal and monitoring devices must be routed together in a common control cable to one controller or control room. R. STAHL supplies explosion protected terminal boxes in various versions and sizes, as individual enclosures or as terminal box combinations, presented in the enclosure series: Planning Specialised knowledge is required for designing and construction of explosion protected electrical units. Alongside the rules of general electrical engineering, it is vital to observe the explosion protection regulations. We are the experts in this subject! We design and manufacture explosion protected terminal boxes to order and to customer specifications taking into account all relevant regulations and standards. Line-up Terminals The terminal boxes are fitted to order with certified line-up terminals as follows: • In EEx e-terminal boxes: line-up terminals with a nominal cross-section up to max. 300 mm2 • In terminal boxes for EEx i-circuits: blue line-up terminals with a nominal cross-section up to max. 4 mm2 • In terminal boxes EEx d: terminals with a nominal cross-section up to max. 300 mm2 • 8118 glass fibre-reinforced polyester resin, in 3 basic enclosure sizes Appoved terminals from Phoenix are used as standard in hazardous areas. However, if required, we can also fit terminals from other manufacturers. • 8146 glass fibre-reinforced polyester resin, in 8 basic enclosure sizes and various heights • 8125 painted steel plate or stainless steel, in 6 basic enclosure sizes and various heights 10305E00 10304E00 8125 01665E00 8146 8118
