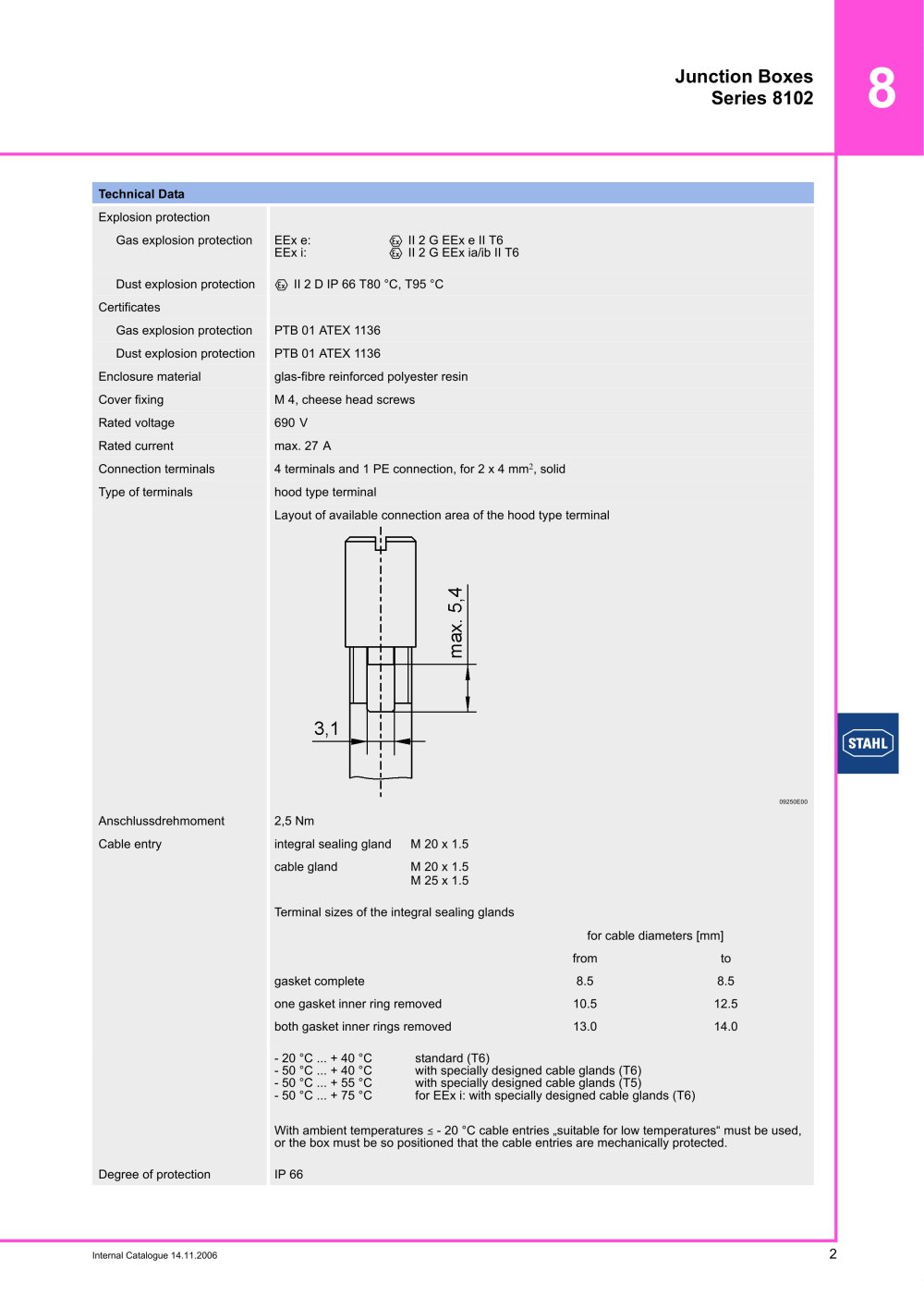

2 8 Internal Catalogue 14.11.2006 Junction Boxes Series 8102 Technical Data Explosion protection Gas explosion protection Dust explosion protection E II 2 D IP 66 T80 °C, T95 °C Certificates Gas explosion protection PTB 01 ATEX 1136 Dust explosion protection PTB 01 ATEX 1136 Enclosure material glas-fibre reinforced polyester resin Cover fixing M 4, cheese head screws Rated voltage 690 V Rated current max. 27 A Connection terminals 4 terminals and 1 PE connection, for 2 x 4 mm2, solid Type of terminals hood type terminal Layout of available connection area of the hood type terminal 09250E00 Anschlussdrehmoment 2,5 Nm Cable entry Terminal sizes of the integral sealing glands Degree of protection IP 66 EEx e: EEx i: E II 2 G EEx e II T6 E II 2 G EEx ia/ib II T6 integral sealing gland M 20 x 1.5 cable gland M 20 x 1.5 M 25 x 1.5 for cable diameters [mm] from to gasket complete 8.5 8.5 one gasket inner ring removed 10.5 12.5 both gasket inner rings removed 13.0 14.0 - 20 °C ... + 40 °C - 50 °C ... + 40 °C - 50 °C ... + 55 °C - 50 °C ... + 75 °C standard (T6) with specially designed cable glands (T6) with specially designed cable glands (T5) for EEx i: with specially designed cable glands (T6) With ambient temperatures ( - 20 °C cable entries „suitable for low temperatures“ must be used, or the box must be so positioned that the cable entries are mechanically protected.
