2/8
2
Automation 17.04.2008

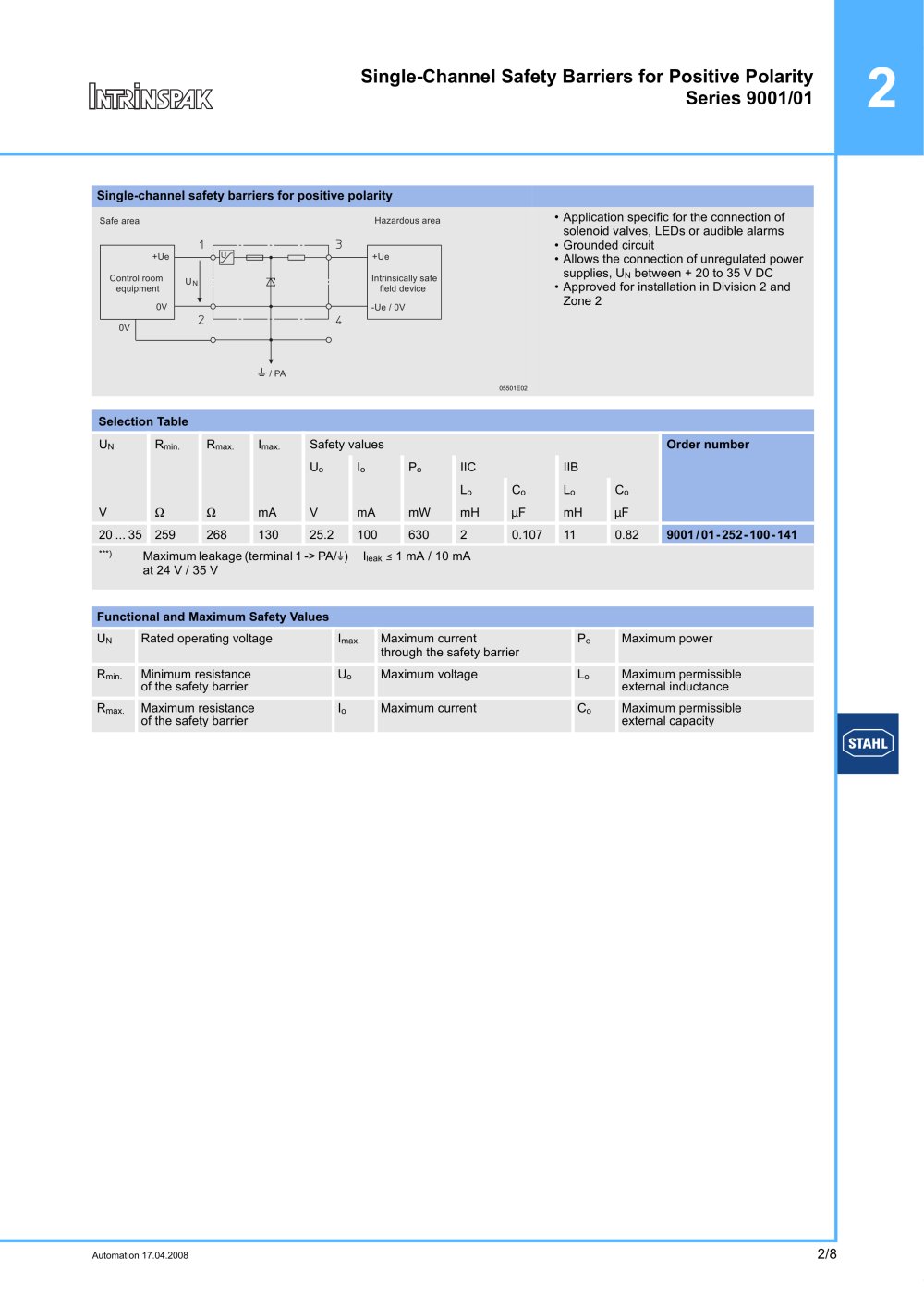

Single-Channel Safety Barriers for Positive Polarity
Series 9001/01
Single-channel safety barriers for positive polarity
05501E02
• Application specific for the connection of
solenoid valves, LEDs or audible alarms
• Grounded circuit
• Allows the connection of unregulated power
supplies, UN between + 20 to 35 V DC
• Approved for installation in Division 2 and
Zone 2
Selection Table
UN Rmin. Rmax. Imax. Safety values Order number
Uo Io Po IIC IIB
Lo Co Lo Co
V Ù Ù mA V mA mW mH mF mH mF
20 ... 35 259 268 130 25.2 100 630 2 0.107 11 0.82 9001/01-252-100-141
Functional and Maximum Safety Values
UN Rated operating voltage Imax. Maximum current
through the safety barrier
Po Maximum power
Rmin. Minimum resistance
of the safety barrier
Uo Maximum voltage Lo Maximum permissible
external inductance
Rmax. Maximum resistance
of the safety barrier
Io Maximum current Co Maximum permissible
external capacity
0V
0V
Intrinsically safe
field device
Control room
equipment
Safe area Hazardous area
UN
/ PA
+Ue
-Ue / 0V
+Ue
***) Maximum leakage (terminal 1 -> PA/¿)
at 24 V / 35 V
Ileak ( 1 mA / 10 mA
