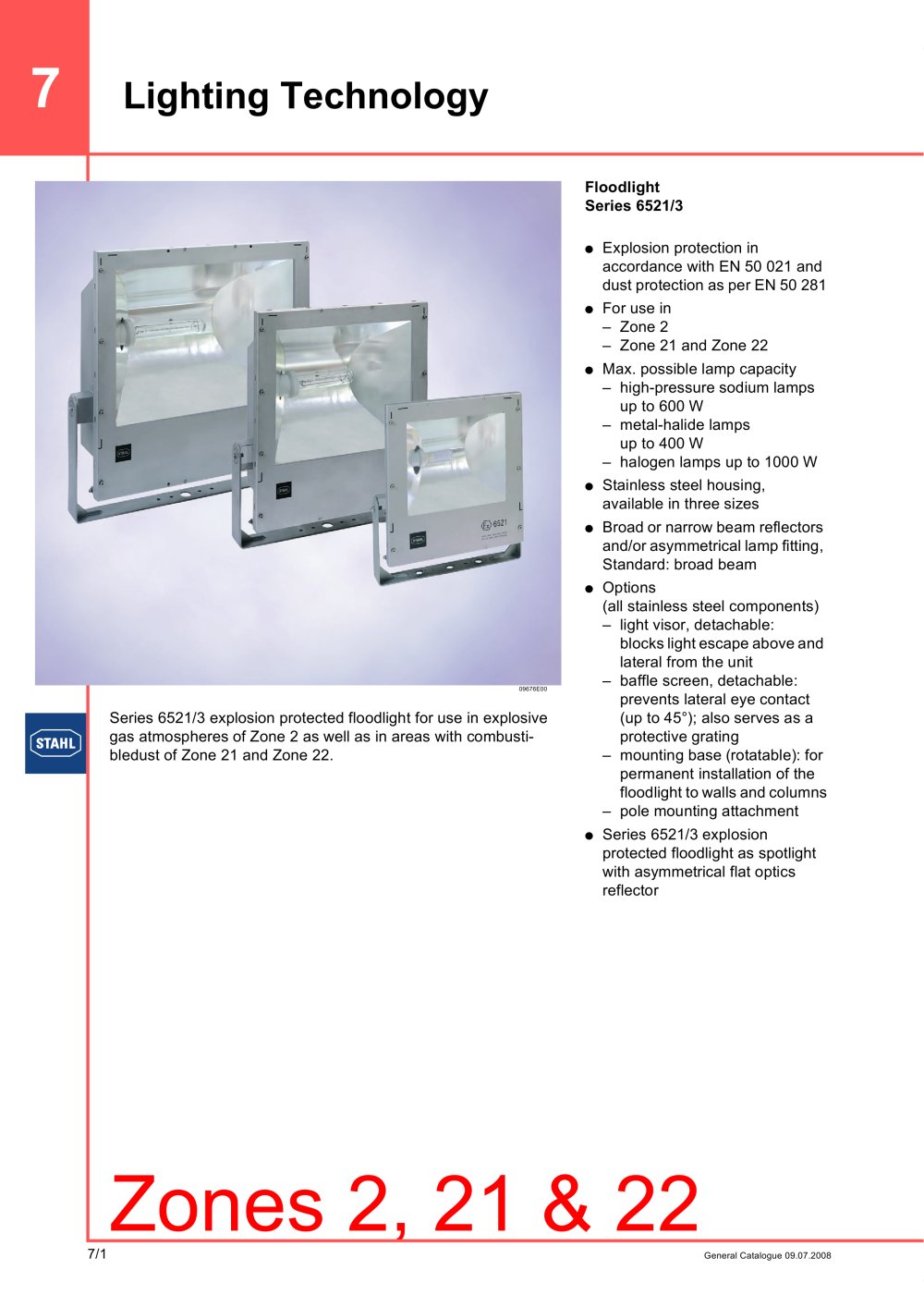

7 Lighting Technology 7/1Zones 2, 21 & 22General Catalogue 09.07.2008 09676E00 Floodlight Series 6521/3 �œ Explosion protection in accordance with EN 50 021 and dust protection as per EN 50 281 �œ For use in – Zone 2 – Zone 21 and Zone 22 �œ Max. possible lamp capacity – high-pressure sodium lamps up to 600 W – metal-halide lamps up to 400 W – halogen lamps up to 1000 W �œ Stainless steel housing, available in three sizes �œ Broad or narrow beam reflectors and/or asymmetrical lamp fitting, Standard: broad beam �œ Options (all stainless steel components) – light visor, detachable: blocks light escape above and lateral from the unit – baffle screen, detachable: prevents lateral eye contact (up to 45°); also serves as a protective grating – mounting base (rotatable): for permanent installation of the floodlight to walls and columns – pole mounting attachment �œ Series 6521/3 explosion protected floodlight as spotlight with asymmetrical flat optics reflector Series 6521/3 explosion protected floodlight for use in explosive gas atmospheres of Zone 2 as well as in areas with combustibledust of Zone 21 and Zone 22.
