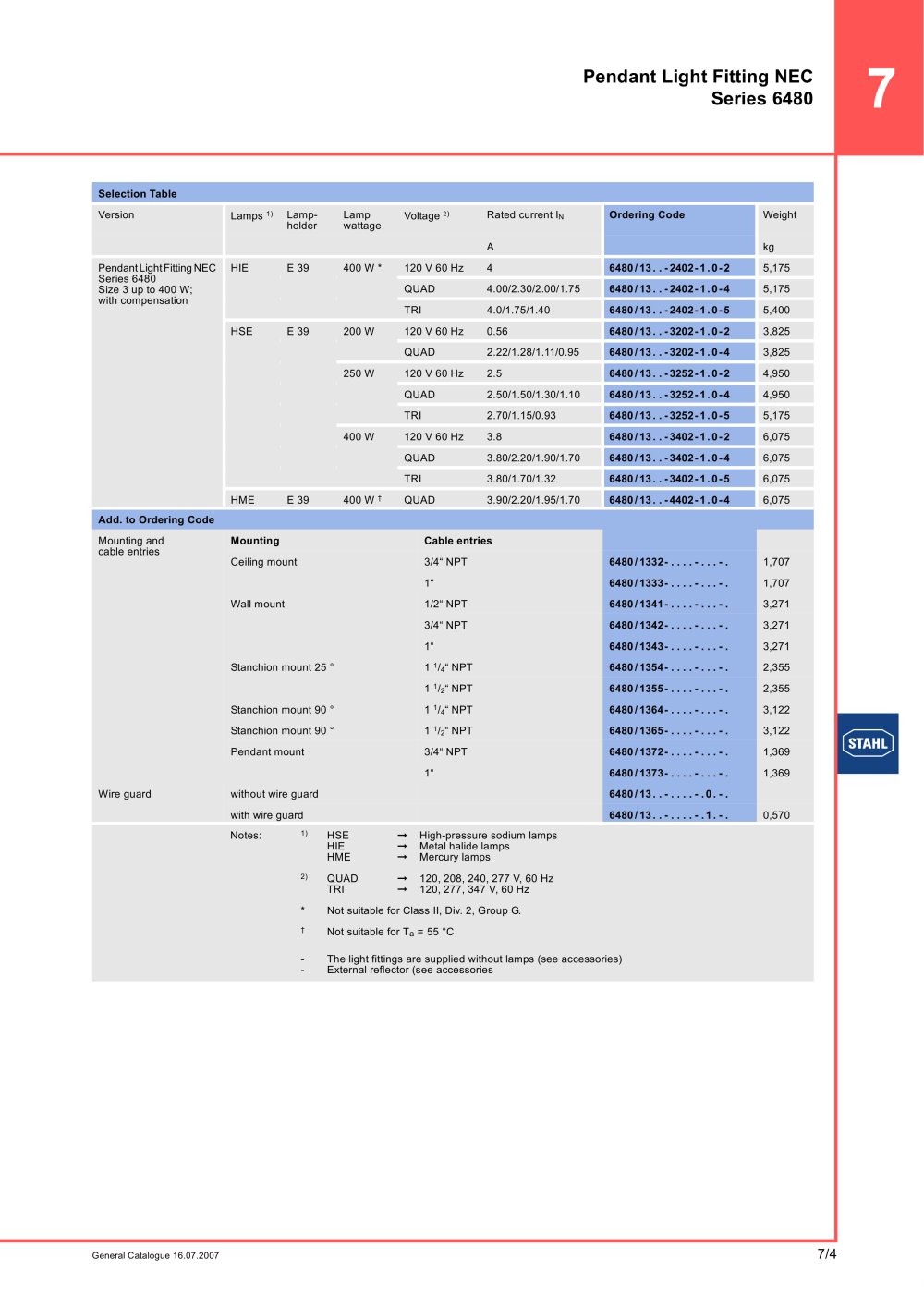

7/4 7 General Catalogue 16.07.2007 Pendant Light Fitting NEC Series 6480 Selection Table Version Lamps 1) Lampholder Lamp wattage Voltage 2) Rated current IN Ordering Code Weight A kg Pendant Light Fitting NEC Series 6480 Size 3 up to 400 W; with compensation HIE E 39 400 W * 120 V 60 Hz 4 6480/13..-2402-1.0-2 5,175 QUAD 4.00/2.30/2.00/1.75 6480/13..-2402-1.0-4 5,175 TRI 4.0/1.75/1.40 6480/13..-2402-1.0-5 5,400 HSE E 39 200 W 120 V 60 Hz 0.56 6480/13..-3202-1.0-2 3,825 QUAD 2.22/1.28/1.11/0.95 6480/13..-3202-1.0-4 3,825 250 W 120 V 60 Hz 2.5 6480/13..-3252-1.0-2 4,950 QUAD 2.50/1.50/1.30/1.10 6480/13..-3252-1.0-4 4,950 TRI 2.70/1.15/0.93 6480/13..-3252-1.0-5 5,175 400 W 120 V 60 Hz 3.8 6480/13..-3402-1.0-2 6,075 QUAD 3.80/2.20/1.90/1.70 6480/13..-3402-1.0-4 6,075 TRI 3.80/1.70/1.32 6480/13..-3402-1.0-5 6,075 HME E 39 400 W † QUAD 3.90/2.20/1.95/1.70 6480/13..-4402-1.0-4 6,075 Add. to Ordering Code Mounting and cable entries Mounting Cable entries Ceiling mount 3/4“ NPT 6480/1332-....-...-. 1,707 1“ 6480/1333-....-...-. 1,707 Wall mount 1/2“ NPT 6480/1341-....-...-. 3,271 3/4“ NPT 6480/1342-....-...-. 3,271 1“ 6480/1343-....-...-. 3,271 Stanchion mount 25 ° 1 1/4“ NPT 6480/1354-....-...-. 2,355 1 1/2“ NPT 6480/1355-....-...-. 2,355 Stanchion mount 90 ° 1 1/4“ NPT 6480/1364-....-...-. 3,122 Stanchion mount 90 ° 1 1/2“ NPT 6480/1365-....-...-. 3,122 Pendant mount 3/4“ NPT 6480/1372-....-...-. 1,369 1“ 6480/1373-....-...-. 1,369 Wire guard without wire guard 6480/13..-....-.0.-. with wire guard 6480/13..-....-.1.-. 0,570 Notes: 1) 2) HSE HIE HME QUAD TRI High-pressure sodium lamps Metal halide lamps Mercury lamps 120, 208, 240, 277 V, 60 Hz 120, 277, 347 V, 60 Hz * Not suitable for Class II, Div. 2, Group G. † Not suitable for Ta = 55 °C -- The light fittings are supplied without lamps (see accessories) External reflector (see accessories
