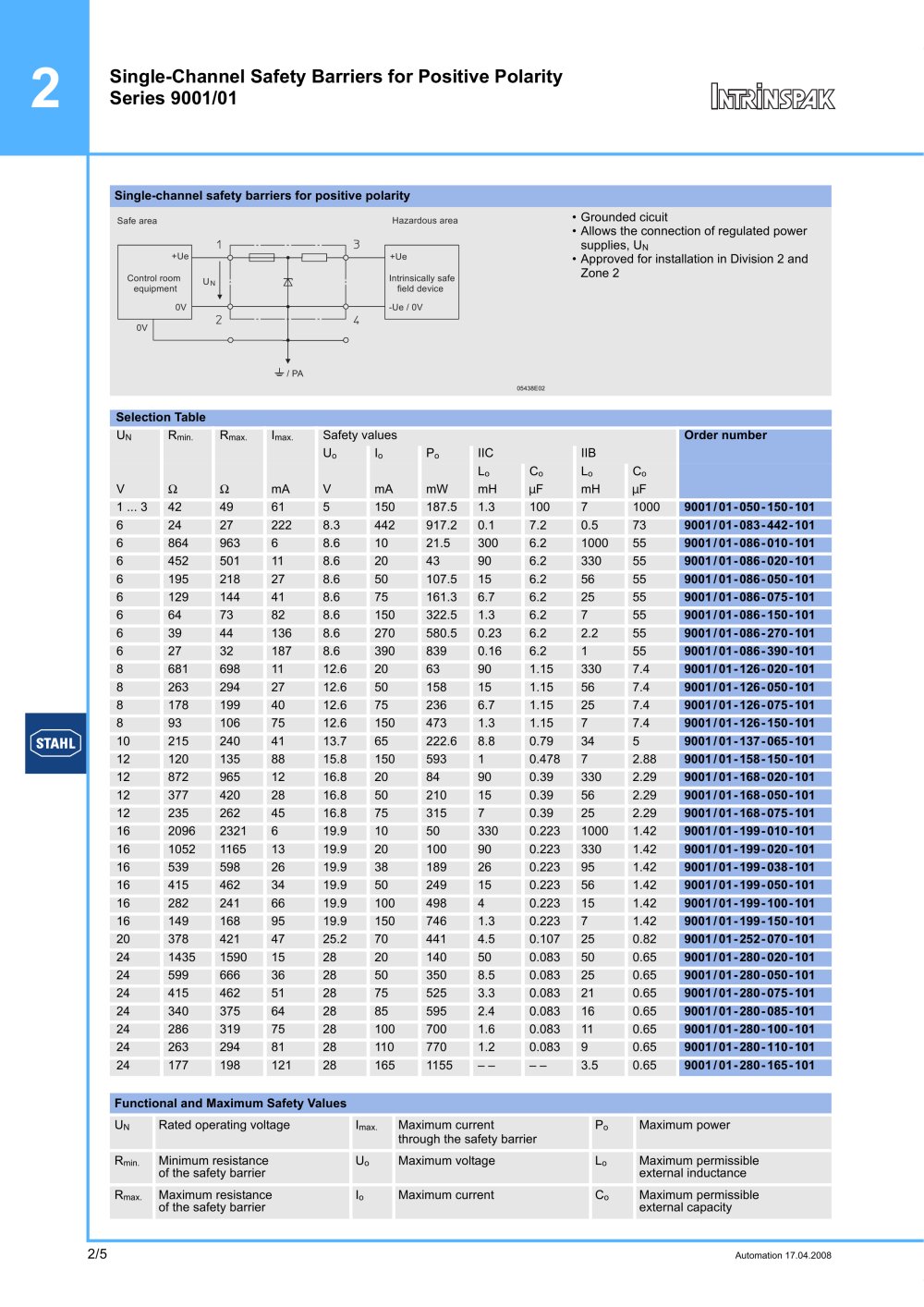

2/5 2 Automation 17.04.2008 Single-Channel Safety Barriers for Positive Polarity Series 9001/01 Single-channel safety barriers for positive polarity 05438E02 • Grounded cicuit • Allows the connection of regulated power supplies, UN • Approved for installation in Division 2 and Zone 2 Selection Table UN Rmin. Rmax. Imax. Safety values Order number Uo Io Po IIC IIB Lo Co Lo Co V Ù Ù mA V mA mW mH mF mH mF 1 ... 3 42 49 61 5 150 187.5 1.3 100 7 1000 9001/01-050-150-101 6 24 27 222 8.3 442 917.2 0.1 7.2 0.5 73 9001/01-083-442-101 6 864 963 6 8.6 10 21.5 300 6.2 1000 55 9001/01-086-010-101 6 452 501 11 8.6 20 43 90 6.2 330 55 9001/01-086-020-101 6 195 218 27 8.6 50 107.5 15 6.2 56 55 9001/01-086-050-101 6 129 144 41 8.6 75 161.3 6.7 6.2 25 55 9001/01-086-075-101 6 64 73 82 8.6 150 322.5 1.3 6.2 7 55 9001/01-086-150-101 6 39 44 136 8.6 270 580.5 0.23 6.2 2.2 55 9001/01-086-270-101 6 27 32 187 8.6 390 839 0.16 6.2 1 55 9001/01-086-390-101 8 681 698 11 12.6 20 63 90 1.15 330 7.4 9001/01-126-020-101 8 263 294 27 12.6 50 158 15 1.15 56 7.4 9001/01-126-050-101 8 178 199 40 12.6 75 236 6.7 1.15 25 7.4 9001/01-126-075-101 8 93 106 75 12.6 150 473 1.3 1.15 7 7.4 9001/01-126-150-101 10 215 240 41 13.7 65 222.6 8.8 0.79 34 5 9001/01-137-065-101 12 120 135 88 15.8 150 593 1 0.478 7 2.88 9001/01-158-150-101 12 872 965 12 16.8 20 84 90 0.39 330 2.29 9001/01-168-020-101 12 377 420 28 16.8 50 210 15 0.39 56 2.29 9001/01-168-050-101 12 235 262 45 16.8 75 315 7 0.39 25 2.29 9001/01-168-075-101 16 2096 2321 6 19.9 10 50 330 0.223 1000 1.42 9001/01-199-010-101 16 1052 1165 13 19.9 20 100 90 0.223 330 1.42 9001/01-199-020-101 16 539 598 26 19.9 38 189 26 0.223 95 1.42 9001/01-199-038-101 16 415 462 34 19.9 50 249 15 0.223 56 1.42 9001/01-199-050-101 16 282 241 66 19.9 100 498 4 0.223 15 1.42 9001/01-199-100-101 16 149 168 95 19.9 150 746 1.3 0.223 7 1.42 9001/01-199-150-101 20 378 421 47 25.2 70 441 4.5 0.107 25 0.82 9001/01-252-070-101 24 1435 1590 15 28 20 140 50 0.083 50 0.65 9001/01-280-020-101 24 599 666 36 28 50 350 8.5 0.083 25 0.65 9001/01-280-050-101 24 415 462 51 28 75 525 3.3 0.083 21 0.65 9001/01-280-075-101 24 340 375 64 28 85 595 2.4 0.083 16 0.65 9001/01-280-085-101 24 286 319 75 28 100 700 1.6 0.083 11 0.65 9001/01-280-100-101 24 263 294 81 28 110 770 1.2 0.083 9 0.65 9001/01-280-110-101 24 177 198 121 28 165 1155 – – – – 3.5 0.65 9001/01-280-165-101 Functional and Maximum Safety Values UN Rated operating voltage Imax. Maximum current through the safety barrier Po Maximum power Rmin. Minimum resistance of the safety barrier Uo Maximum voltage Lo Maximum permissible external inductance Rmax. Maximum resistance of the safety barrier Io Maximum current Co Maximum permissible external capacity 0V 0V Intrinsically safe field device Control room equipment Safe area Hazardous area UN / PA +Ue +Ue -Ue / 0V
