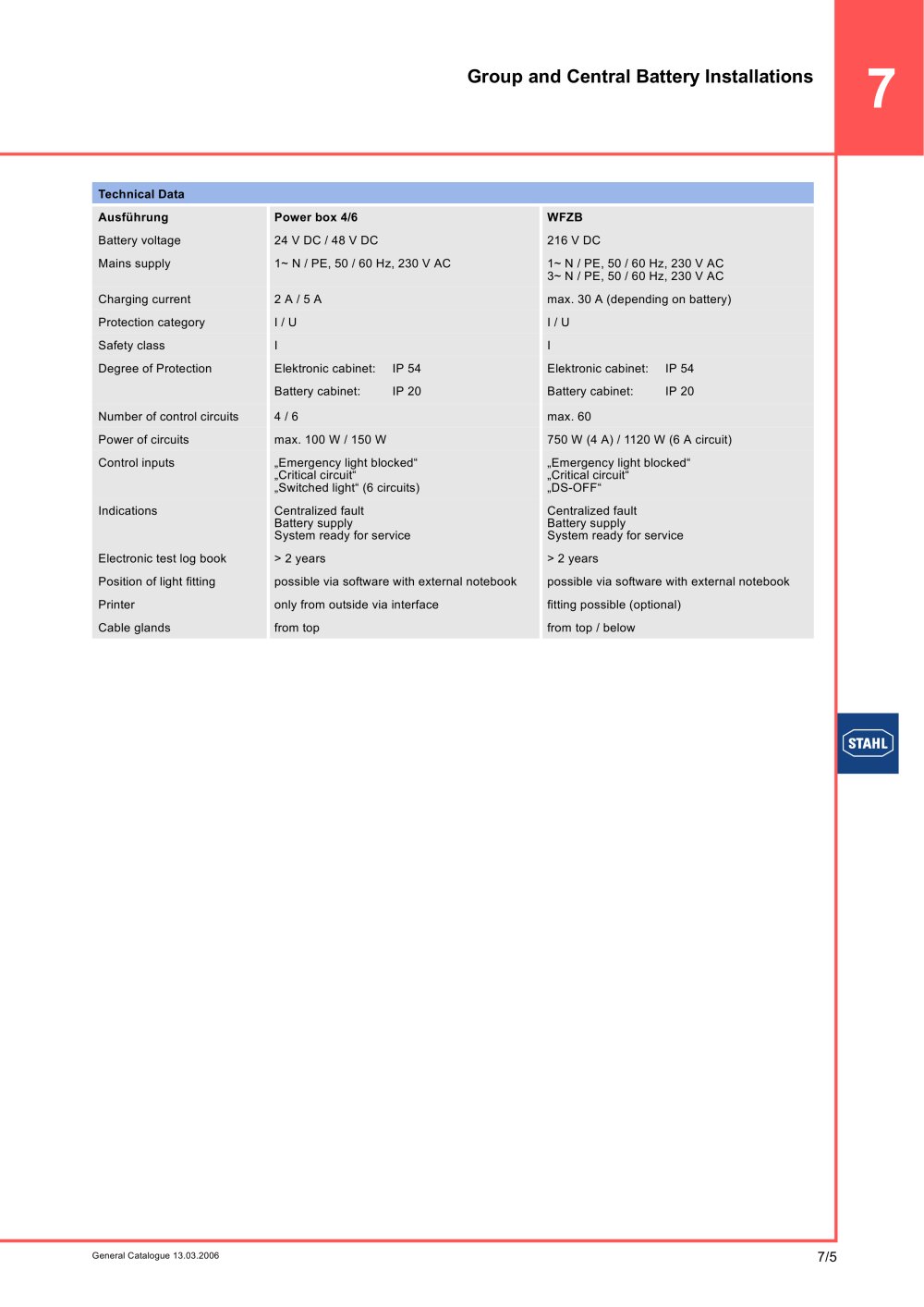

Group and Central Battery Installations
General Catalogue 13.03.2006 7/5
7
Technical Data
Ausführung Power box 4/6 WFZB
Battery voltage 24 V DC / 48 V DC 216 V DC
Mains supply 1~ N / PE, 50 / 60 Hz, 230 V AC 1~ N / PE, 50 / 60 Hz, 230 V AC
3~ N / PE, 50 / 60 Hz, 230 V AC
Charging current 2 A / 5 A max. 30 A (depending on battery)
Protection category I / U I / U
Safety class I I
Degree of Protection
Number of control circuits 4 / 6 max. 60
Power of circuits max. 100 W / 150 W 750 W (4 A) / 1120 W (6 A circuit)
Control inputs „Emergency light blocked“
„Critical circuit“
„Switched light“ (6 circuits)
„Emergency light blocked“
„Critical circuit“
„DS-OFF“
Indications Centralized fault
Battery supply
System ready for service
Centralized fault
Battery supply
System ready for service
Electronic test log book > 2 years > 2 years
Position of light fitting possible via software with external notebook possible via software with external notebook
Printer only from outside via interface fitting possible (optional)
Cable glands from top from top / below
Elektronic cabinet: IP 54
Battery cabinet: IP 20
Elektronic cabinet: IP 54
Battery cabinet: IP 20
