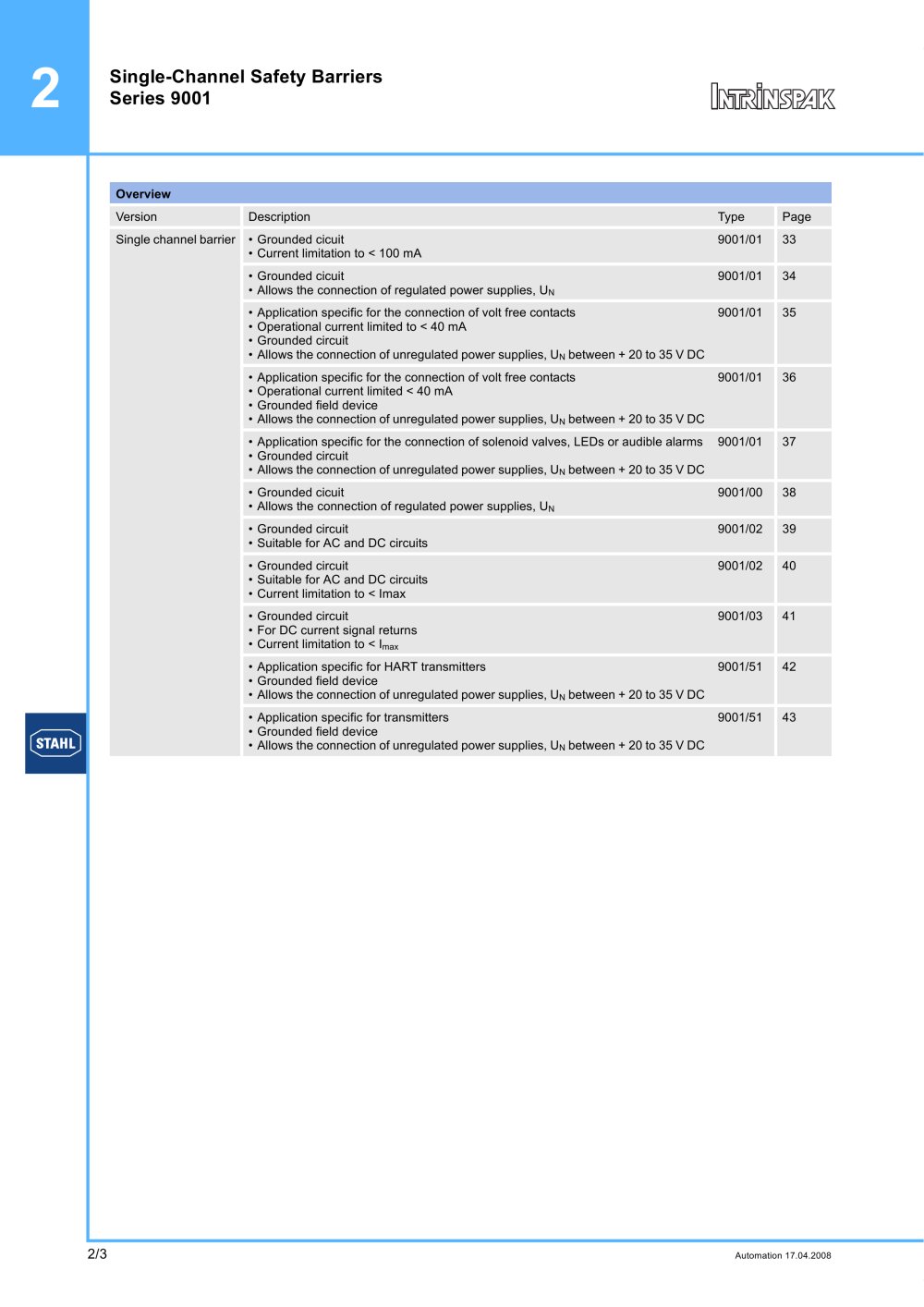

2/3 2 Automation 17.04.2008 Single-Channel Safety Barriers Series 9001 Overview Version Description Type Page Single channel barrier • Grounded cicuit • Current limitation to < 100 mA 9001/01 33 • Grounded cicuit • Allows the connection of regulated power supplies, UN 9001/01 34 • Application specific for the connection of volt free contacts • Operational current limited to < 40 mA • Grounded circuit • Allows the connection of unregulated power supplies, UN between + 20 to 35 V DC 9001/01 35 • Application specific for the connection of volt free contacts • Operational current limited < 40 mA • Grounded field device • Allows the connection of unregulated power supplies, UN between + 20 to 35 V DC 9001/01 36 • Application specific for the connection of solenoid valves, LEDs or audible alarms • Grounded circuit • Allows the connection of unregulated power supplies, UN between + 20 to 35 V DC 9001/01 37 • Grounded cicuit • Allows the connection of regulated power supplies, UN 9001/00 38 • Grounded circuit • Suitable for AC and DC circuits 9001/02 39 • Grounded circuit • Suitable for AC and DC circuits • Current limitation to < Imax 9001/02 40 • Grounded circuit • For DC current signal returns • Current limitation to < Imax 9001/03 41 • Application specific for HART transmitters • Grounded field device • Allows the connection of unregulated power supplies, UN between + 20 to 35 V DC 9001/51 42 • Application specific for transmitters • Grounded field device • Allows the connection of unregulated power supplies, UN between + 20 to 35 V DC 9001/51 43
