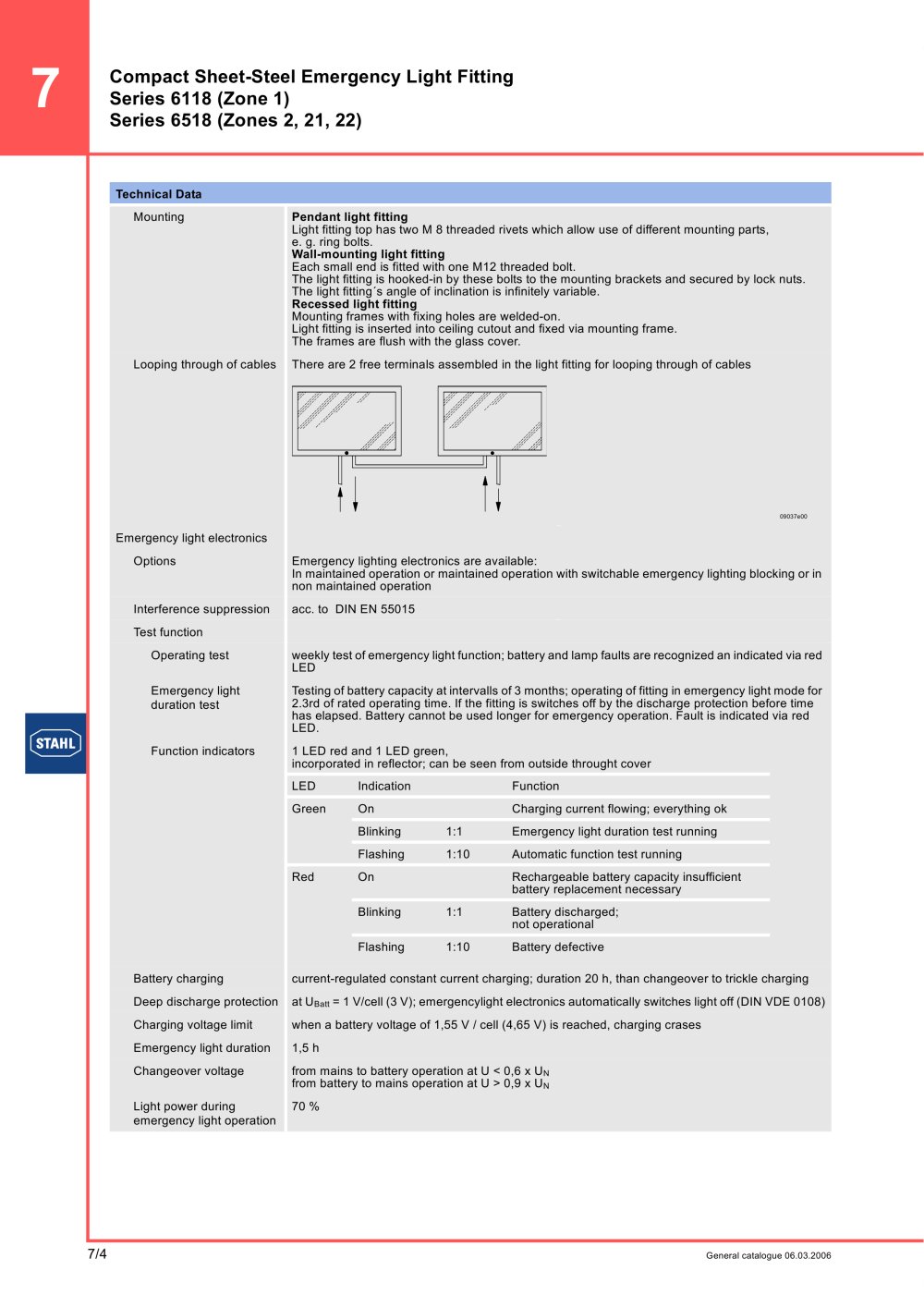

7/4 7 General catalogue 06.03.2006 Compact Sheet-Steel Emergency Light Fitting Series 6118 (Zone 1) Series 6518 (Zones 2, 21, 22) Mounting Pendant light fitting Light fitting top has two M 8 threaded rivets which allow use of different mounting parts, e. g. ring bolts. Wall-mounting light fitting Each small end is fitted with one M12 threaded bolt. The light fitting is hooked-in by these bolts to the mounting brackets and secured by lock nuts. The light fitting´s angle of inclination is infinitely variable. Recessed light fitting Mounting frames with fixing holes are welded-on. Light fitting is inserted into ceiling cutout and fixed via mounting frame. The frames are flush with the glass cover. Looping through of cables Emergency light electronics Options Emergency lighting electronics are available: In maintained operation or maintained operation with switchable emergency lighting blocking or in non maintained operation Interference suppression acc. to DIN EN 55015 Test function Operating test weekly test of emergency light function; battery and lamp faults are recognized an indicated via red LED Emergency light duration test Testing of battery capacity at intervalls of 3 months; operating of fitting in emergency light mode for 2.3rd of rated operating time. If the fitting is switches off by the discharge protection before time has elapsed. Battery cannot be used longer for emergency operation. Fault is indicated via red LED. Function indicators Battery charging current-regulated constant current charging; duration 20 h, than changeover to trickle charging Deep discharge protection at UBatt = 1 V/cell (3 V); emergencylight electronics automatically switches light off (DIN VDE 0108) Charging voltage limit when a battery voltage of 1,55 V / cell (4,65 V) is reached, charging crases Emergency light duration 1,5 h Changeover voltage from mains to battery operation at U 0,9 x UN Light power during emergency light operation 70 % Technical Data There are 2 free terminals assembled in the light fitting for looping through of cables 09037e00 1 LED red and 1 LED green, incorporated in reflector; can be seen from outside throught cover LED Indication Function Green On Charging current flowing; everything ok Blinking 1:1 Emergency light duration test running Flashing 1:10 Automatic function test running Red On Rechargeable battery capacity insufficient battery replacement necessary Blinking 1:1 Battery discharged; not operational Flashing 1:10 Battery defective
