2/2
2
Automation 17.04.2008

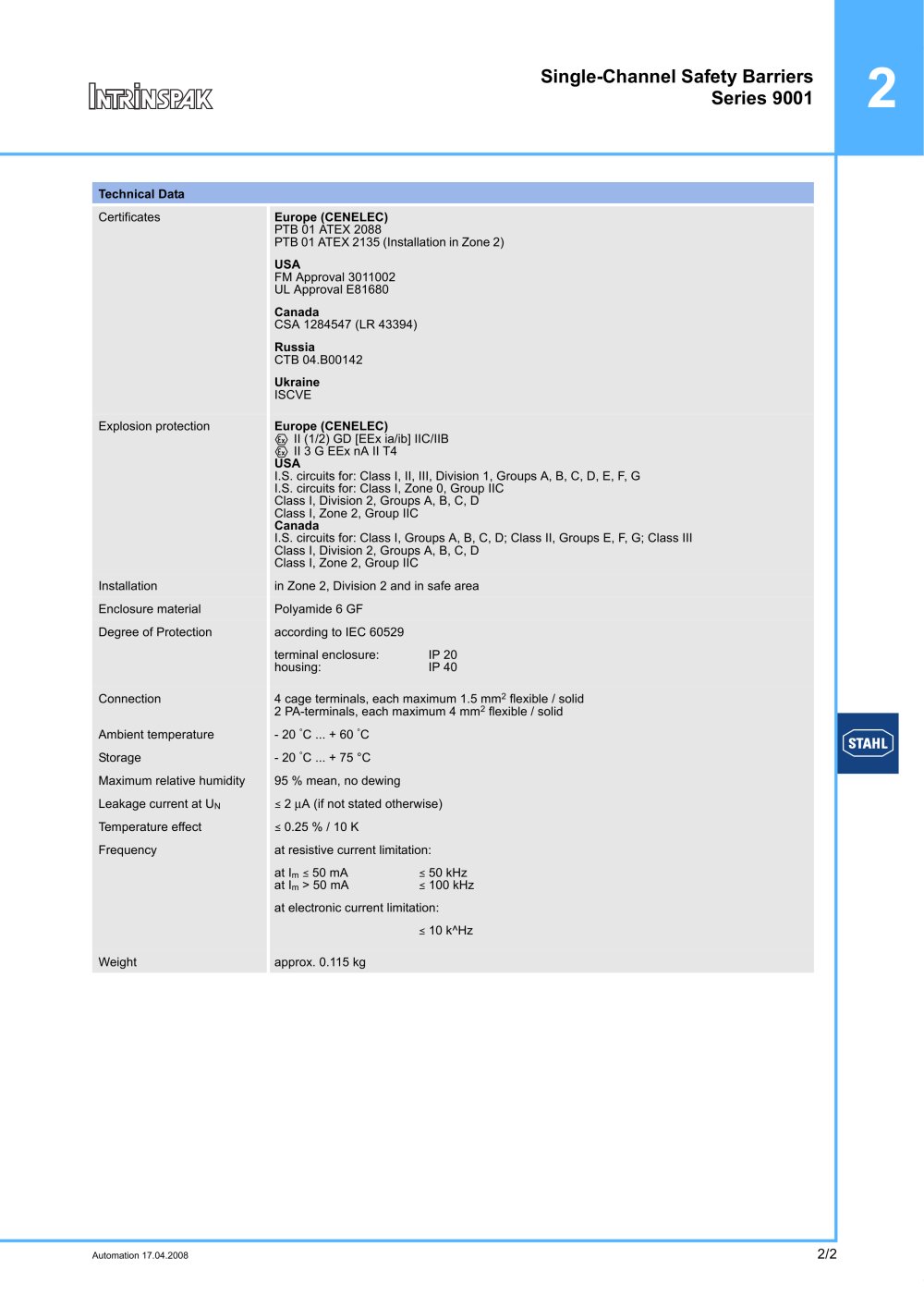

Single-Channel Safety Barriers
Series 9001
Technical Data
Certificates
Explosion protection Europe (CENELEC)
E II (1/2) GD [EEx ia/ib] IIC/IIB
E II 3 G EEx nA II T4
USA
I.S. circuits for: Class I, II, III, Division 1, Groups A, B, C, D, E, F, G
I.S. circuits for: Class I, Zone 0, Group IIC
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, Group IIC
Canada
I.S. circuits for: Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, Group IIC
Installation in Zone 2, Division 2 and in safe area
Enclosure material Polyamide 6 GF
Degree of Protection
Connection 4 cage terminals, each maximum 1.5 mm2 flexible / solid
2 PA-terminals, each maximum 4 mm2 flexible / solid
Ambient temperature - 20 °C ... + 60 °C
Storage - 20 °C ... + 75 °C
Maximum relative humidity 95 % mean, no dewing
Leakage current at UN ( 2 ěA (if not stated otherwise)
Temperature effect ( 0.25 % / 10 K
Frequency
Weight approx. 0.115 kg
Europe (CENELEC)
PTB 01 ATEX 2088
PTB 01 ATEX 2135 (Installation in Zone 2)
USA
FM Approval 3011002
UL Approval E81680
Canada
CSA 1284547 (LR 43394)
Russia
CTB 04.B00142
Ukraine
ISCVE
according to IEC 60529
terminal enclosure:
housing:
IP 20
IP 40
at resistive current limitation:
at Im ( 50 mA
at Im > 50 mA
( 50 kHz
( 100 kHz
at electronic current limitation:
( 10 k^Hz
