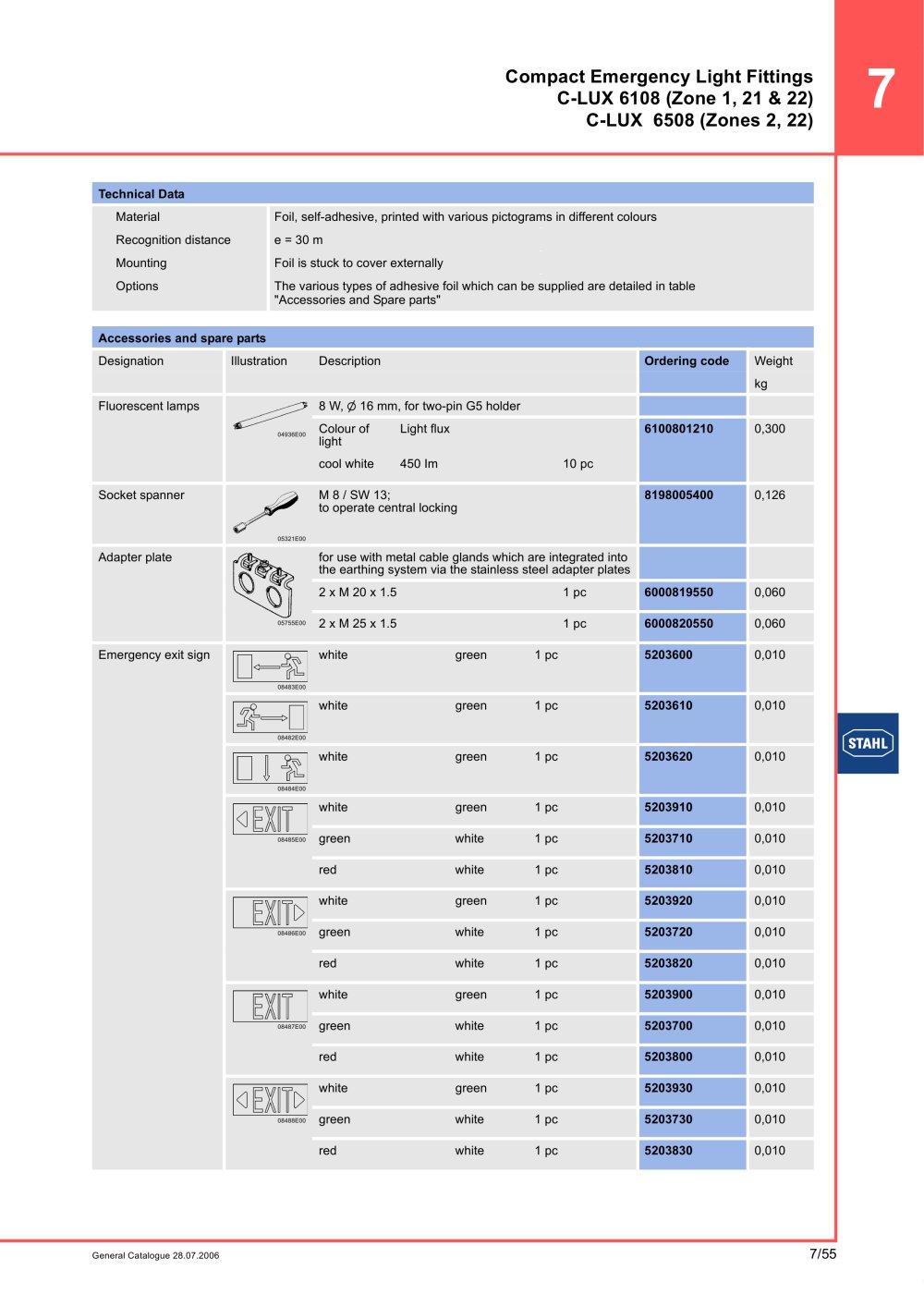

7/55 7 General Catalogue 28.07.2006 Compact Emergency Light Fittings C-LUX 6108 (Zone 1, 21 & 22) C-LUX 6508 (Zones 2, 22) Material Foil, self-adhesive, printed with various pictograms in different colours Recognition distance e = 30 m Mounting Foil is stuck to cover externally Options The various types of adhesive foil which can be supplied are detailed in table "Accessories and Spare parts" Accessories and spare parts Designation Illustration Description Ordering code Weight kg Fluorescent lamps 04936E00 8 W, d 16 mm, for two-pin G5 holder 6100801210 0,300 Socket spanner 05321E00 M 8 / SW 13; to operate central locking 8198005400 0,126 Adapter plate 05755E00 for use with metal cable glands which are integrated into the earthing system via the stainless steel adapter plates 6000819550 0,060 6000820550 0,060 Emergency exit sign 08483E00 5203600 0,010 08482E00 5203610 0,010 08484E00 5203620 0,010 08485E00 5203910 0,010 5203710 0,010 5203810 0,010 08486E00 5203920 0,010 5203720 0,010 5203820 0,010 08487E00 5203900 0,010 5203700 0,010 5203800 0,010 08488E00 5203930 0,010 5203730 0,010 5203830 0,010 Technical Data Colour of light Light flux cool white 450 Im 10 pc 2 x M 20 x 1.5 1 pc 2 x M 25 x 1.5 1 pc white green 1 pc white green 1 pc white green 1 pc white green 1 pc green white 1 pc red white 1 pc white green 1 pc green white 1 pc red white 1 pc white green 1 pc green white 1 pc red white 1 pc white green 1 pc green white 1 pc red white 1 pc
