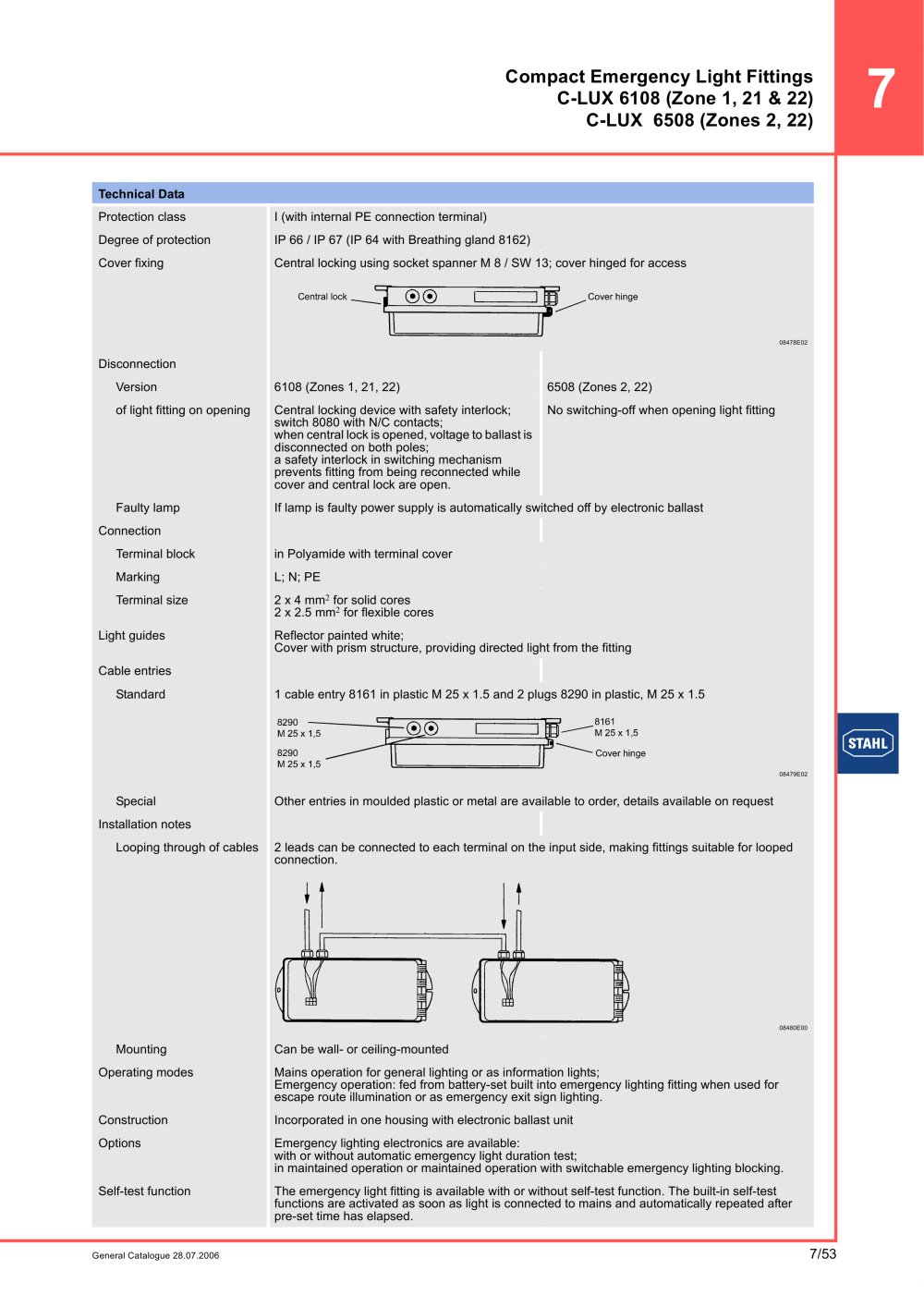

7/53 7 General Catalogue 28.07.2006 Compact Emergency Light Fittings C-LUX 6108 (Zone 1, 21 & 22) C-LUX 6508 (Zones 2, 22) Protection class I (with internal PE connection terminal) Degree of protection IP 66 / IP 67 (IP 64 with Breathing gland 8162) Cover fixing Disconnection Version 6108 (Zones 1, 21, 22) 6508 (Zones 2, 22) of light fitting on opening Central locking device with safety interlock; switch 8080 with N/C contacts; when central lock is opened, voltage to ballast is disconnected on both poles; a safety interlock in switching mechanism prevents fitting from being reconnected while cover and central lock are open. No switching-off when opening light fitting Faulty lamp If lamp is faulty power supply is automatically switched off by electronic ballast Connection Terminal block in Polyamide with terminal cover Marking L; N; PE Terminal size 2 x 4 mm2 for solid cores 2 x 2.5 mm2 for flexible cores Light guides Reflector painted white; Cover with prism structure, providing directed light from the fitting Cable entries Standard 1 cable entry 8161 in plastic M 25 x 1.5 and 2 plugs 8290 in plastic, M 25 x 1.5 Special Other entries in moulded plastic or metal are available to order, details available on request Installation notes Looping through of cables Mounting Can be wall- or ceiling-mounted Operating modes Mains operation for general lighting or as information lights; Emergency operation: fed from battery-set built into emergency lighting fitting when used for escape route illumination or as emergency exit sign lighting. Construction Incorporated in one housing with electronic ballast unit Options Emergency lighting electronics are available: with or without automatic emergency light duration test; in maintained operation or maintained operation with switchable emergency lighting blocking. Self-test function The emergency light fitting is available with or without self-test function. The built-in self-test functions are activated as soon as light is connected to mains and automatically repeated after pre-set time has elapsed. Technical Data Central locking using socket spanner M 8 / SW 13; cover hinged for access 08478E02 08479E02 2 leads can be connected to each terminal on the input side, making fittings suitable for looped connection. 08480E00
