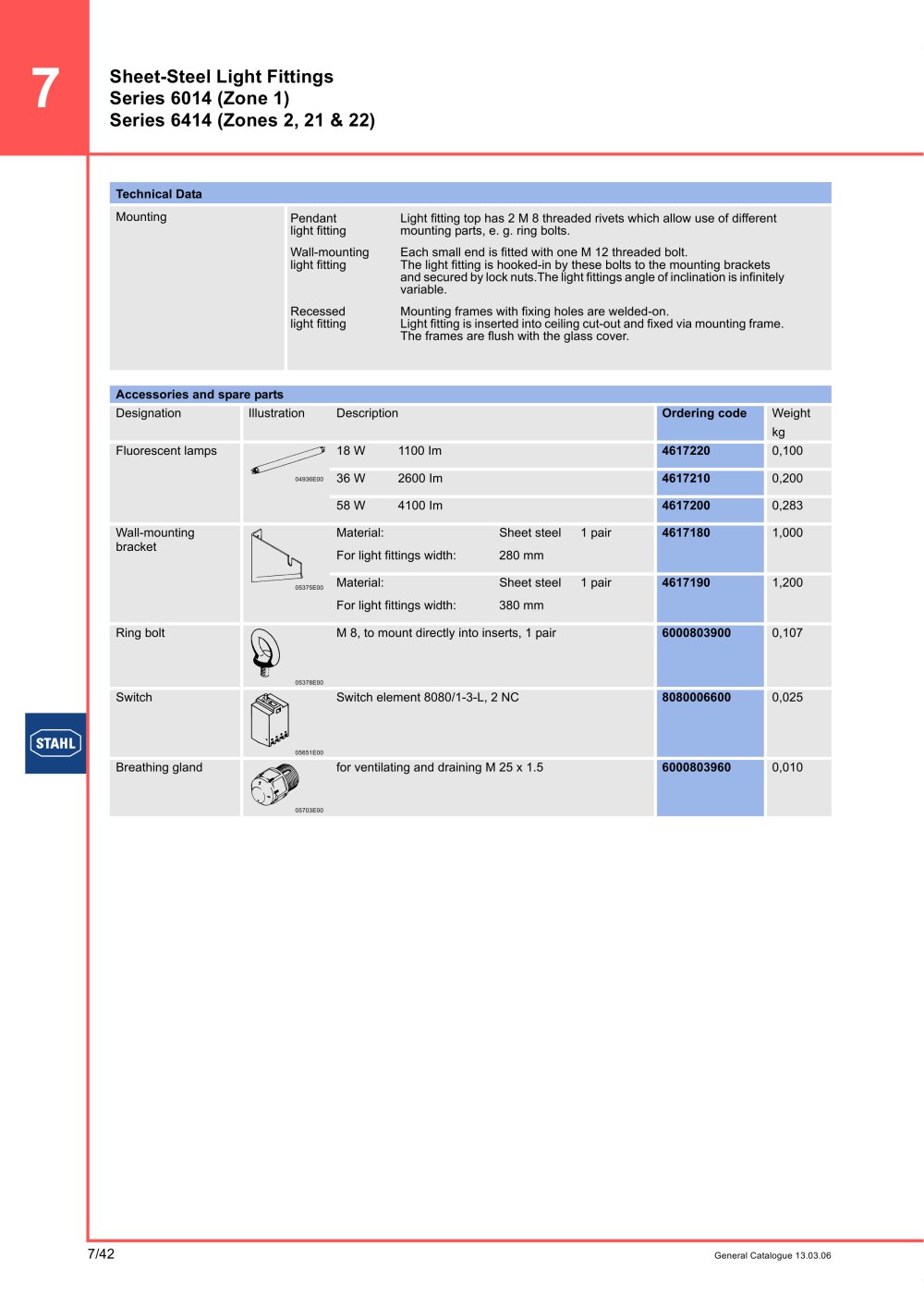

7/42 7 General Catalogue 13.03.06 Sheet-Steel Light Fittings Series 6014 (Zone 1) Series 6414 (Zones 2, 21 & 22) Mounting Accessories and spare parts Designation Illustration Description Ordering code Weight kg Fluorescent lamps 04936E00 4617220 0,100 4617210 0,200 4617200 0,283 Wall-mounting bracket 05375E00 4617180 1,000 4617190 1,200 Ring bolt 05378E00 M 8, to mount directly into inserts, 1 pair 6000803900 0,107 Switch 05651E00 Switch element 8080/1-3-L, 2 NC 8080006600 0,025 Breathing gland 05703E00 for ventilating and draining M 25 x 1.5 6000803960 0,010 Technical Data Pendant light fitting Light fitting top has 2 M 8 threaded rivets which allow use of different mounting parts, e. g. ring bolts. Wall-mounting light fitting Each small end is fitted with one M 12 threaded bolt. The light fitting is hooked-in by these bolts to the mounting brackets and secured by lock nuts.The light fittings angle of inclination is infinitely variable. Recessed light fitting Mounting frames with fixing holes are welded-on. Light fitting is inserted into ceiling cut-out and fixed via mounting frame. The frames are flush with the glass cover. 18 W 1100 Im 36 W 2600 Im 58 W 4100 Im Material: Sheet steel 1 pair For light fittings width: 280 mm Material: Sheet steel 1 pair For light fittings width: 380 mm
