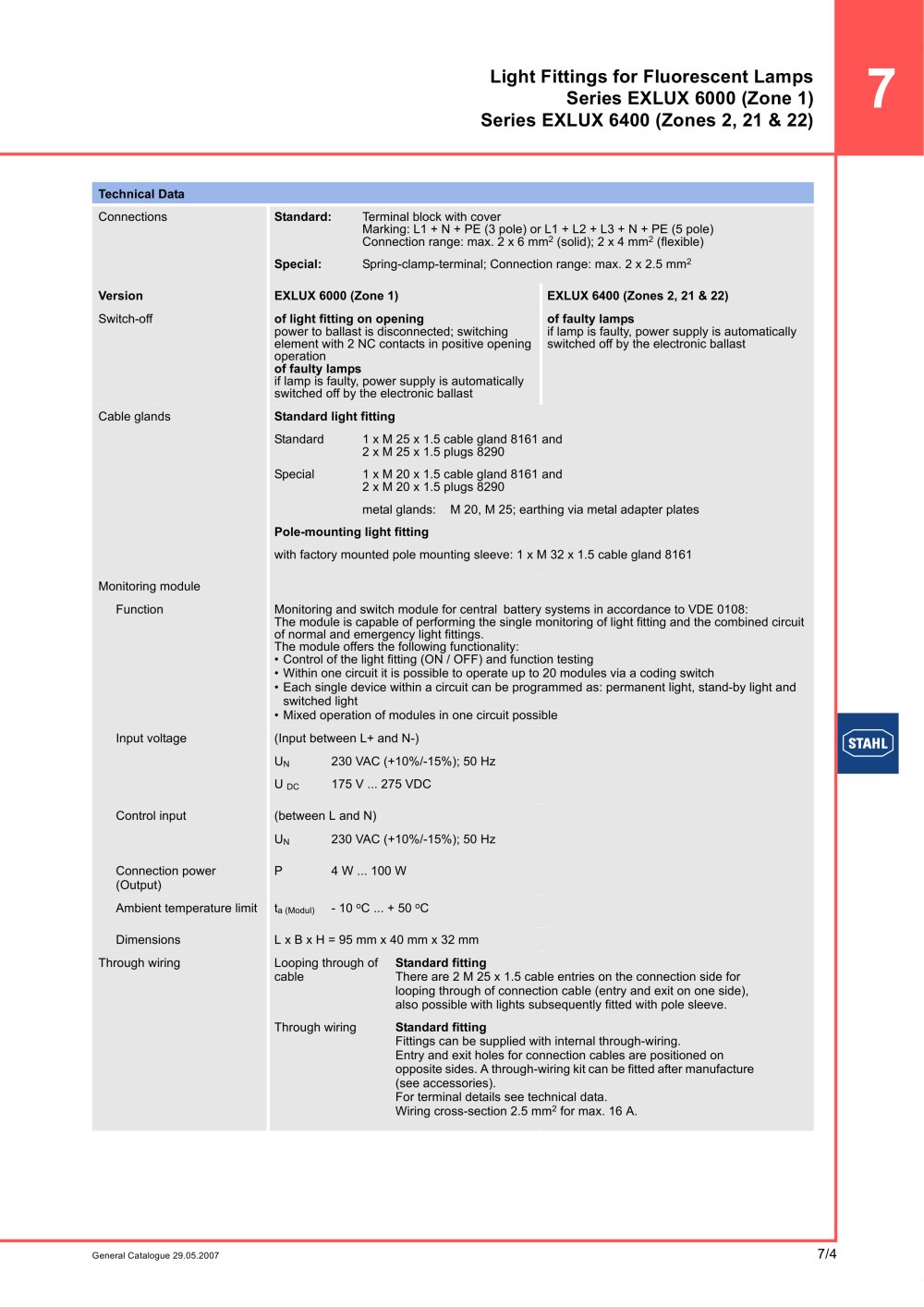

7/4 7 General Catalogue 29.05.2007 Light Fittings for Fluorescent Lamps Series EXLUX 6000 (Zone 1) Series EXLUX 6400 (Zones 2, 21 & 22) Connections Version EXLUX 6000 (Zone 1) EXLUX 6400 (Zones 2, 21 & 22) Switch-off of light fitting on opening power to ballast is disconnected; switching element with 2 NC contacts in positive opening operation of faulty lamps if lamp is faulty, power supply is automatically switched off by the electronic ballast of faulty lamps if lamp is faulty, power supply is automatically switched off by the electronic ballast Cable glands Monitoring module Function Monitoring and switch module for central battery systems in accordance to VDE 0108: The module is capable of performing the single monitoring of light fitting and the combined circuit of normal and emergency light fittings. The module offers the following functionality: • Control of the light fitting (ON / OFF) and function testing • Within one circuit it is possible to operate up to 20 modules via a coding switch • Each single device within a circuit can be programmed as: permanent light, stand-by light and switched light • Mixed operation of modules in one circuit possible Input voltage (Input between L+ and N-) Control input (between L and N) Connection power (Output) Ambient temperature limit Dimensions L x B x H = 95 mm x 40 mm x 32 mm Through wiring Technical Data Standard: Terminal block with cover Marking: L1 + N + PE (3 pole) or L1 + L2 + L3 + N + PE (5 pole) Connection range: max. 2 x 6 mm2 (solid); 2 x 4 mm2 (flexible) Special: Spring-clamp-terminal; Connection range: max. 2 x 2.5 mm2 Standard light fitting Standard 1 x M 25 x 1.5 cable gland 8161 and 2 x M 25 x 1.5 plugs 8290 Special 1 x M 20 x 1.5 cable gland 8161 and 2 x M 20 x 1.5 plugs 8290 metal glands: M 20, M 25; earthing via metal adapter plates Pole-mounting light fitting with factory mounted pole mounting sleeve: 1 x M 32 x 1.5 cable gland 8161 UN 230 VAC (+10%/-15%); 50 Hz U DC 175 V ... 275 VDC UN 230 VAC (+10%/-15%); 50 Hz P 4 W ... 100 W ta (Modul) - 10 oC ... + 50 oC Looping through of cable Standard fitting There are 2 M 25 x 1.5 cable entries on the connection side for looping through of connection cable (entry and exit on one side), also possible with lights subsequently fitted with pole sleeve. Through wiring Standard fitting Fittings can be supplied with internal through-wiring. Entry and exit holes for connection cables are positioned on opposite sides. A through-wiring kit can be fitted after manufacture (see accessories). For terminal details see technical data. Wiring cross-section 2.5 mm2 for max. 16 A.
