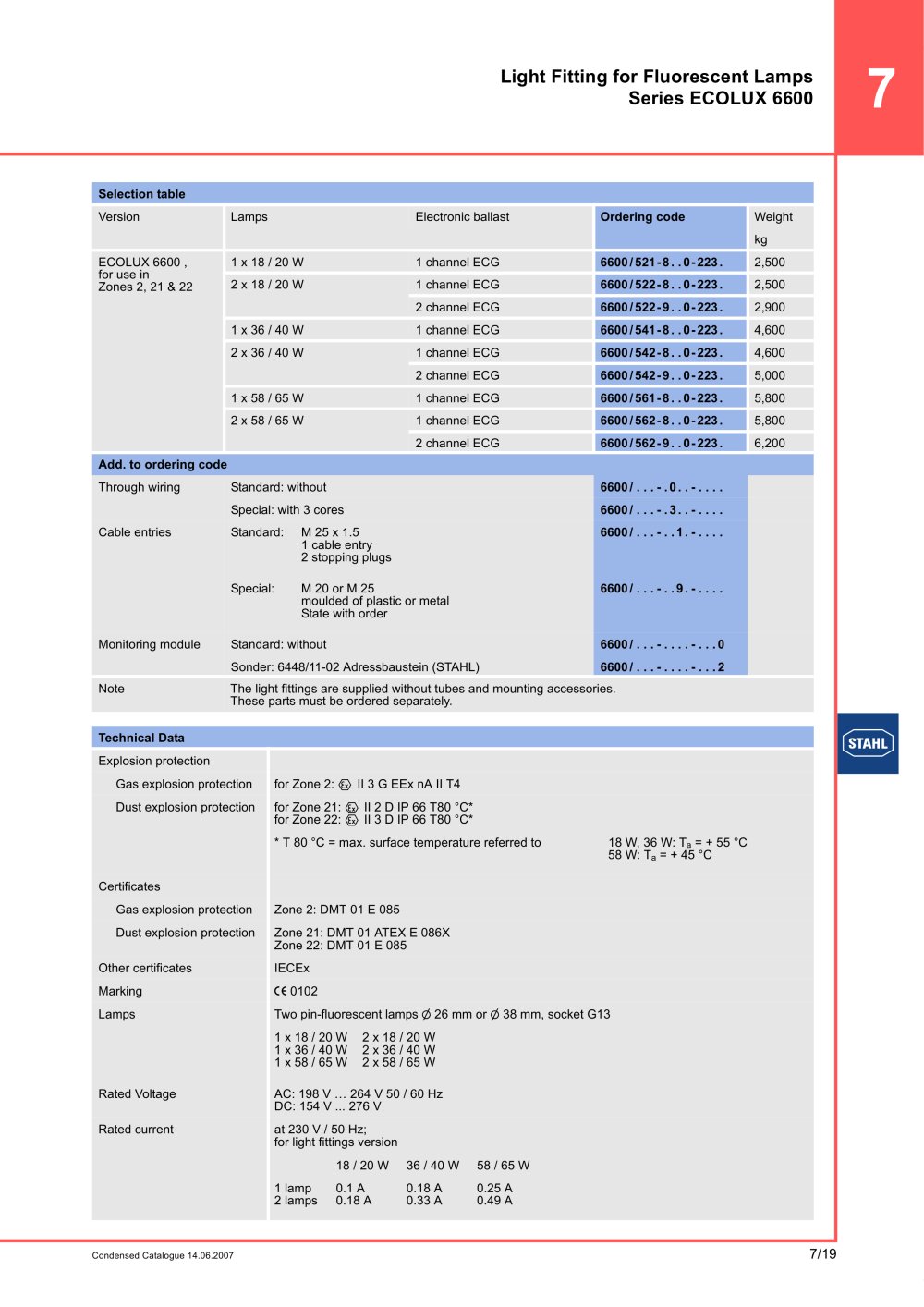

7/19 7 Condensed Catalogue 14.06.2007 Light Fitting for Fluorescent Lamps Series ECOLUX 6600 Selection table Version Lamps Electronic ballast Ordering code Weight kg ECOLUX 6600 , for use in Zones 2, 21 & 22 1 x 18 / 20 W 1 channel ECG 6600/521-8..0-223. 2,500 2 x 18 / 20 W 1 channel ECG 6600/522-8..0-223. 2,500 2 channel ECG 6600/522-9..0-223. 2,900 1 x 36 / 40 W 1 channel ECG 6600/541-8..0-223. 4,600 2 x 36 / 40 W 1 channel ECG 6600/542-8..0-223. 4,600 2 channel ECG 6600/542-9..0-223. 5,000 1 x 58 / 65 W 1 channel ECG 6600/561-8..0-223. 5,800 2 x 58 / 65 W 1 channel ECG 6600/562-8..0-223. 5,800 2 channel ECG 6600/562-9..0-223. 6,200 Add. to ordering code Through wiring Standard: without 6600/...-.0..-.... Special: with 3 cores 6600/...-.3..-.... Cable entries 6600/...-..1.-.... 6600/...-..9.-.... Monitoring module Standard: without 6600/...-....-...0 Sonder: 6448/11-02 Adressbaustein (STAHL) 6600/...-....-...2 Note The light fittings are supplied without tubes and mounting accessories. These parts must be ordered separately. Technical Data Explosion protection Gas explosion protection for Zone 2: E II 3 G EEx nA II T4 Dust explosion protection for Zone 21: E II 2 D IP 66 T80 °C* for Zone 22: E II 3 D IP 66 T80 °C* Certificates Gas explosion protection Zone 2: DMT 01 E 085 Dust explosion protection Zone 21: DMT 01 ATEX E 086X Zone 22: DMT 01 E 085 Other certificates IECEx Marking C 0102 Lamps Two pin-fluorescent lamps d 26 mm or d 38 mm, socket G13 Rated Voltage AC: 198 V … 264 V 50 / 60 Hz DC: 154 V ... 276 V Rated current at 230 V / 50 Hz; for light fittings version Standard: M 25 x 1.5 1 cable entry 2 stopping plugs Special: M 20 or M 25 moulded of plastic or metal State with order * T 80 °C = max. surface temperature referred to 18 W, 36 W: Ta = + 55 °C 58 W: Ta = + 45 °C 1 x 18 / 20 W 1 x 36 / 40 W 1 x 58 / 65 W 2 x 18 / 20 W 2 x 36 / 40 W 2 x 58 / 65 W 18 / 20 W 36 / 40 W 58 / 65 W 1 lamp 2 lamps 0.1 A 0.18 A 0.18 A 0.33 A 0.25 A 0.49 A
