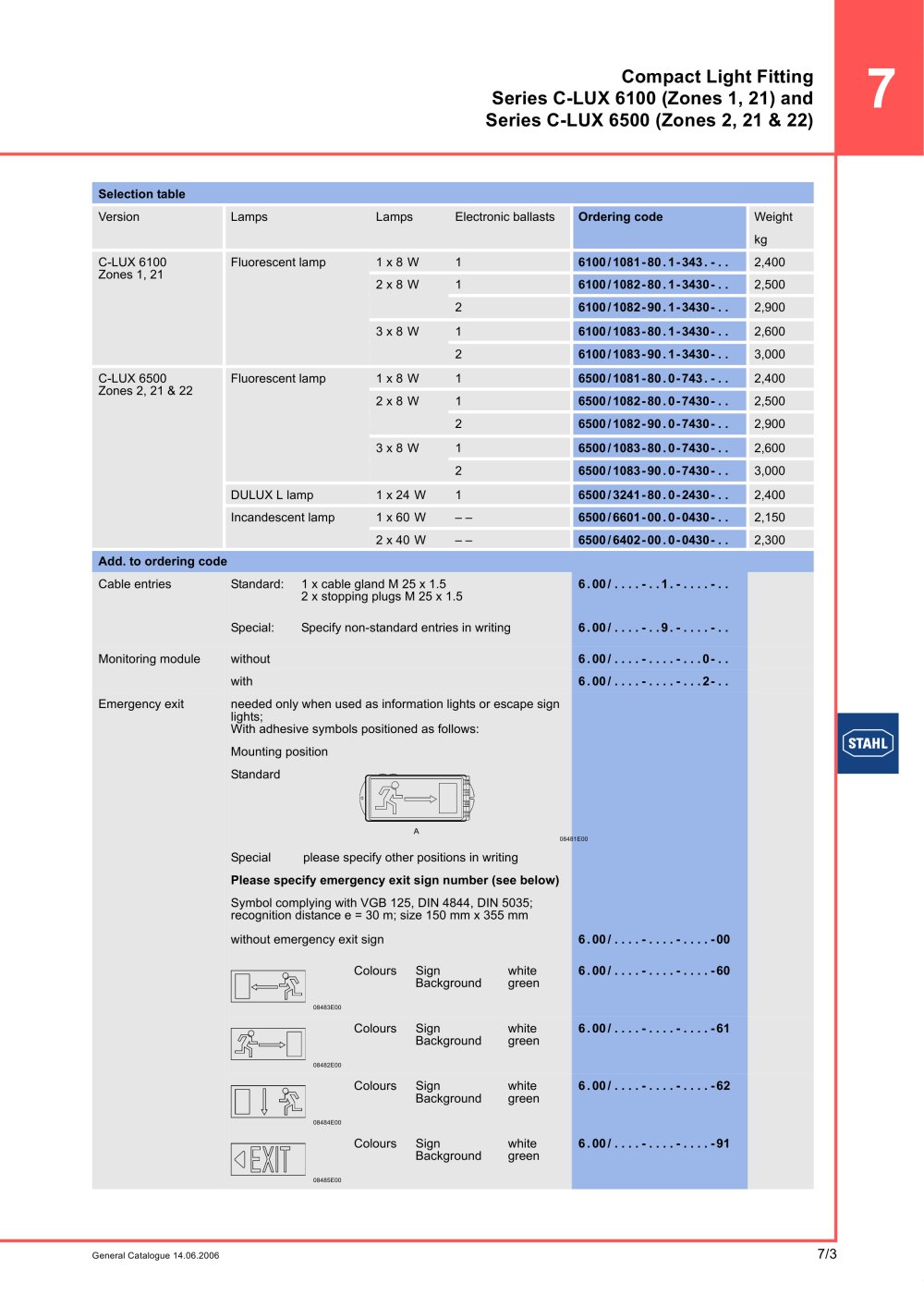

7/3 7 General Catalogue 14.06.2006 Compact Light Fitting Series C-LUX 6100 (Zones 1, 21) and Series C-LUX 6500 (Zones 2, 21 & 22) Selection table Version Lamps Lamps Electronic ballasts Ordering code Weight kg C-LUX 6100 Zones 1, 21 Fluorescent lamp 1 x 8 W 1 6100/1081-80.1-343.-.. 2,400 2 x 8 W 1 6100/1082-80.1-3430-.. 2,500 2 6100/1082-90.1-3430-.. 2,900 3 x 8 W 1 6100/1083-80.1-3430-.. 2,600 2 6100/1083-90.1-3430-.. 3,000 C-LUX 6500 Zones 2, 21 & 22 Fluorescent lamp 1 x 8 W 1 6500/1081-80.0-743.-.. 2,400 2 x 8 W 1 6500/1082-80.0-7430-.. 2,500 2 6500/1082-90.0-7430-.. 2,900 3 x 8 W 1 6500/1083-80.0-7430-.. 2,600 2 6500/1083-90.0-7430-.. 3,000 DULUX L lamp 1 x 24 W 1 6500/3241-80.0-2430-.. 2,400 Incandescent lamp 1 x 60 W – – 6500/6601-00.0-0430-.. 2,150 2 x 40 W – – 6500/6402-00.0-0430-.. 2,300 Add. to ordering code Cable entries 6.00/....-..1.-....-.. 6.00/....-..9.-....-.. Monitoring module without 6.00/....-....-...0-.. with 6.00/....-....-...2-.. Emergency exit 6.00/....-....-....-00 6.00/....-....-....-60 6.00/....-....-....-61 6.00/....-....-....-62 6.00/....-....-....-91 Standard: 1 x cable gland M 25 x 1.5 2 x stopping plugs M 25 x 1.5 Special: Specify non-standard entries in writing needed only when used as information lights or escape sign lights; With adhesive symbols positioned as follows: Mounting position Standard 08481E00 Special please specify other positions in writing Please specify emergency exit sign number (see below) Symbol complying with VGB 125, DIN 4844, DIN 5035; recognition distance e = 30 m; size 150 mm x 355 mm without emergency exit sign 08483E00 Colours Sign Background white green 08482E00 Colours Sign Background white green 08484E00 Colours Sign Background white green 08485E00 Colours Sign Background white green
