7/5
7
General Catalogue 04.03.2006
Tubular Light Fittings for Fluorescent Lamps
Series T-LUX 6030 Zone 1 and
Series T-LUX 6430 Zone 2

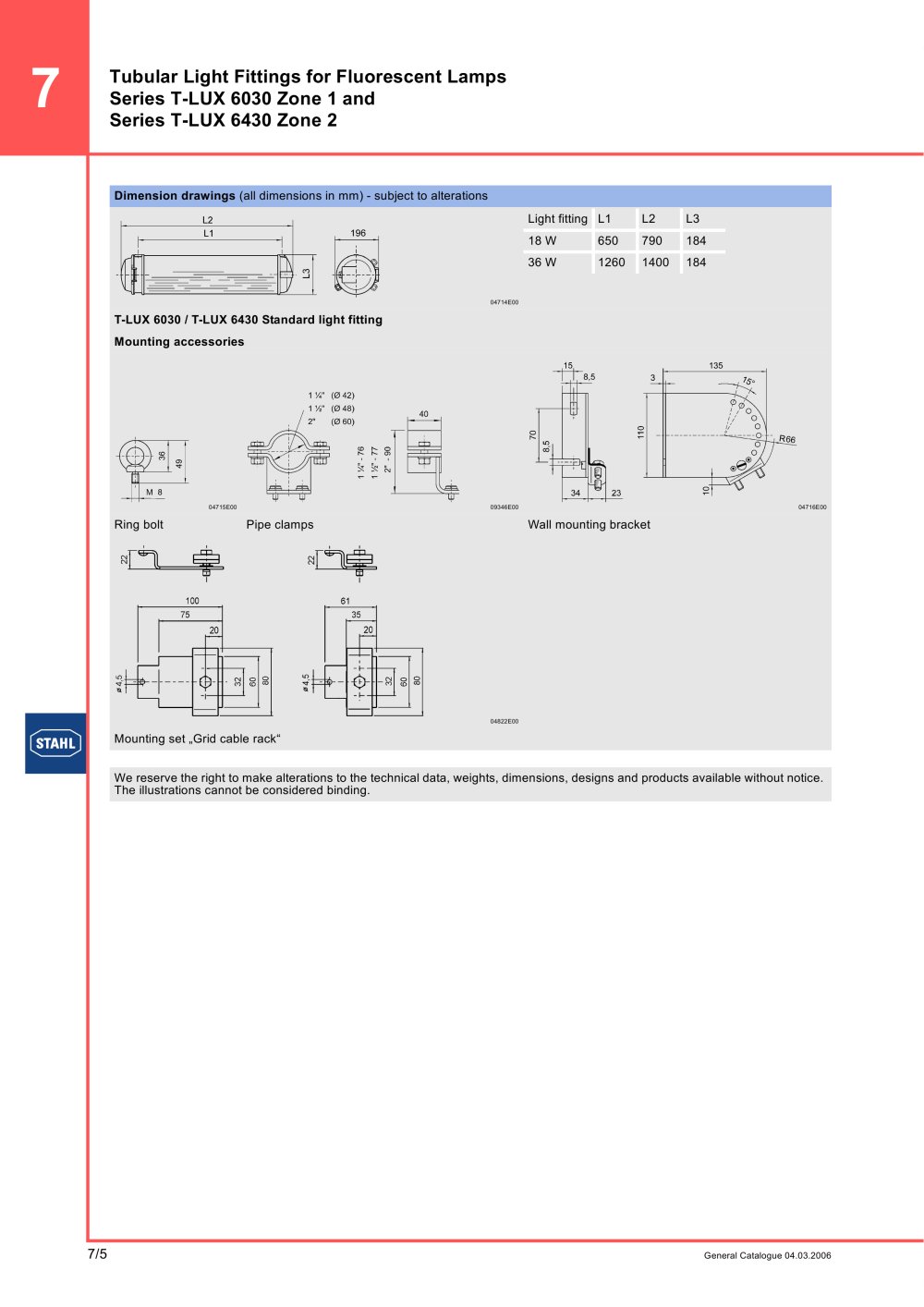

Dimension drawings (all dimensions in mm) - subject to alterations
04714E00
T-LUX 6030 / T-LUX 6430 Standard light fitting
Mounting accessories
04715E00 09346E00 04716E00
Ring bolt Pipe clamps Wall mounting bracket
04822E00
Mounting set „Grid cable rack“
We reserve the right to make alterations to the technical data, weights, dimensions, designs and products available without notice.
The illustrations cannot be considered binding.
Light fitting L1 L2 L3
18 W 650 790 184
36 W 1260 1400 184
