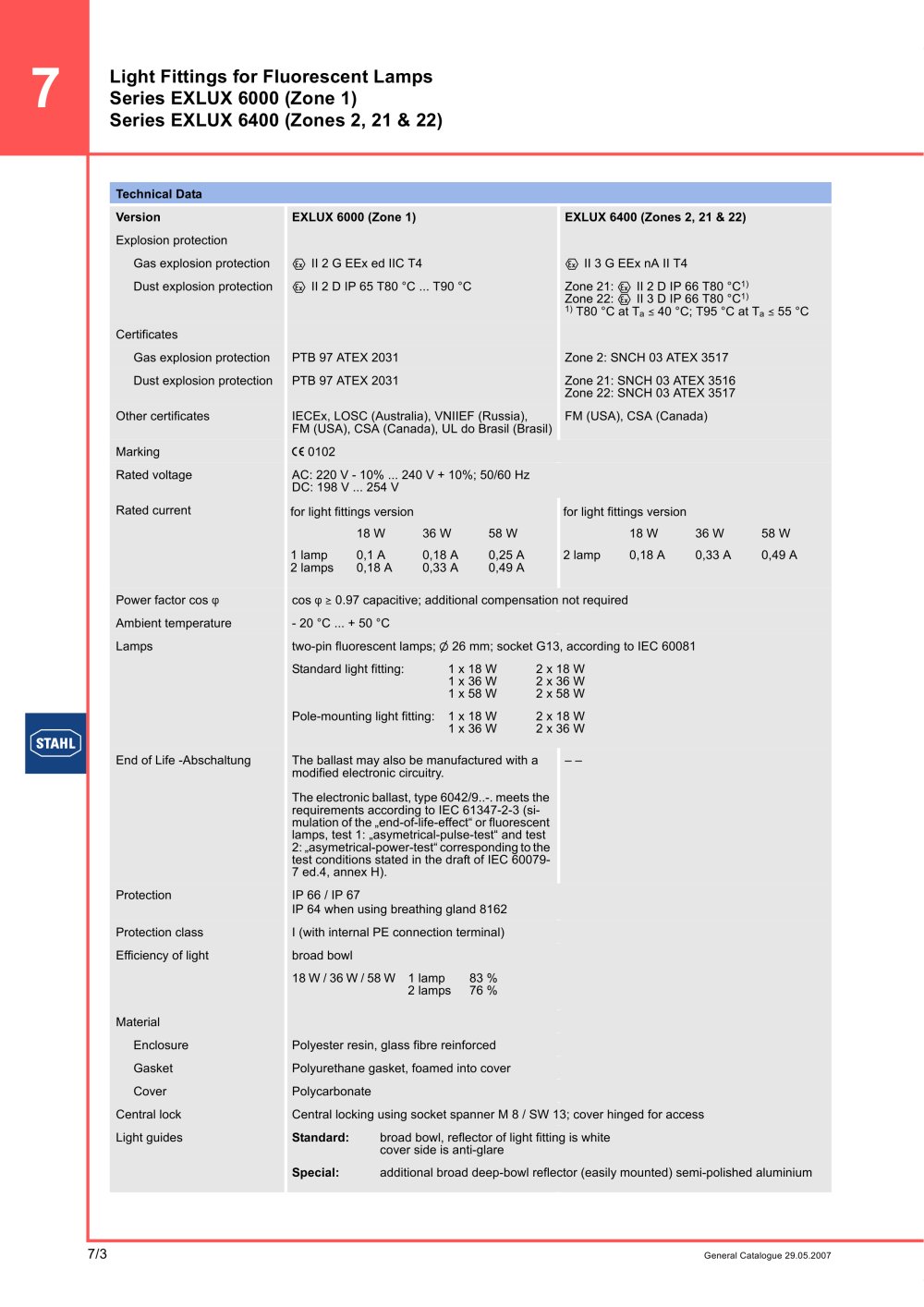

7/3 7 General Catalogue 29.05.2007 Light Fittings for Fluorescent Lamps Series EXLUX 6000 (Zone 1) Series EXLUX 6400 (Zones 2, 21 & 22) Technical Data Version EXLUX 6000 (Zone 1) EXLUX 6400 (Zones 2, 21 & 22) Explosion protection Gas explosion protection E II 2 G EEx ed IIC T4 E II 3 G EEx nA II T4 Dust explosion protection E II 2 D IP 65 T80 °C ... T90 °C Zone 21: E II 2 D IP 66 T80 °C1) Zone 22: E II 3 D IP 66 T80 °C1) 1) T80 °C at Ta ( 40 °C; T95 °C at Ta ( 55 °C Certificates Gas explosion protection PTB 97 ATEX 2031 Zone 2: SNCH 03 ATEX 3517 Dust explosion protection PTB 97 ATEX 2031 Zone 21: SNCH 03 ATEX 3516 Zone 22: SNCH 03 ATEX 3517 Other certificates IECEx, LOSC (Australia), VNIIEF (Russia), FM (USA), CSA (Canada), UL do Brasil (Brasil) FM (USA), CSA (Canada) Marking C 0102 Rated voltage AC: 220 V - 10% ... 240 V + 10%; 50/60 Hz DC: 198 V ... 254 V Rated current Power factor cos p cos p ) 0.97 capacitive; additional compensation not required Ambient temperature - 20 °C ... + 50 °C Lamps End of Life -Abschaltung The ballast may also be manufactured with a modified electronic circuitry. The electronic ballast, type 6042/9..-. meets the requirements according to IEC 61347-2-3 (simulation of the „end-of-life-effect“ or fluorescent lamps, test 1: „asymetrical-pulse-test“ and test 2: „asymetrical-power-test“ corresponding to the test conditions stated in the draft of IEC 60079- 7 ed.4, annex H). – – Protection IP 66 / IP 67 IP 64 when using breathing gland 8162 Protection class I (with internal PE connection terminal) Efficiency of light Material Enclosure Polyester resin, glass fibre reinforced Gasket Polyurethane gasket, foamed into cover Cover Polycarbonate Central lock Central locking using socket spanner M 8 / SW 13; cover hinged for access Light guides for light fittings version 18 W 36 W 58 W 1 lamp 2 lamps 0,1 A 0,18 A 0,18 A 0,33 A 0,25 A 0,49 A for light fittings version 18 W 36 W 58 W 2 lamp 0,18 A 0,33 A 0,49 A two-pin fluorescent lamps; d 26 mm; socket G13, according to IEC 60081 Standard light fitting: 1 x 18 W 1 x 36 W 1 x 58 W 2 x 18 W 2 x 36 W 2 x 58 W Pole-mounting light fitting: 1 x 18 W 1 x 36 W 2 x 18 W 2 x 36 W broad bowl 18 W / 36 W / 58 W 1 lamp 2 lamps 83 % 76 % Standard: broad bowl, reflector of light fitting is white cover side is anti-glare Special: additional broad deep-bowl reflector (easily mounted) semi-polished aluminium
