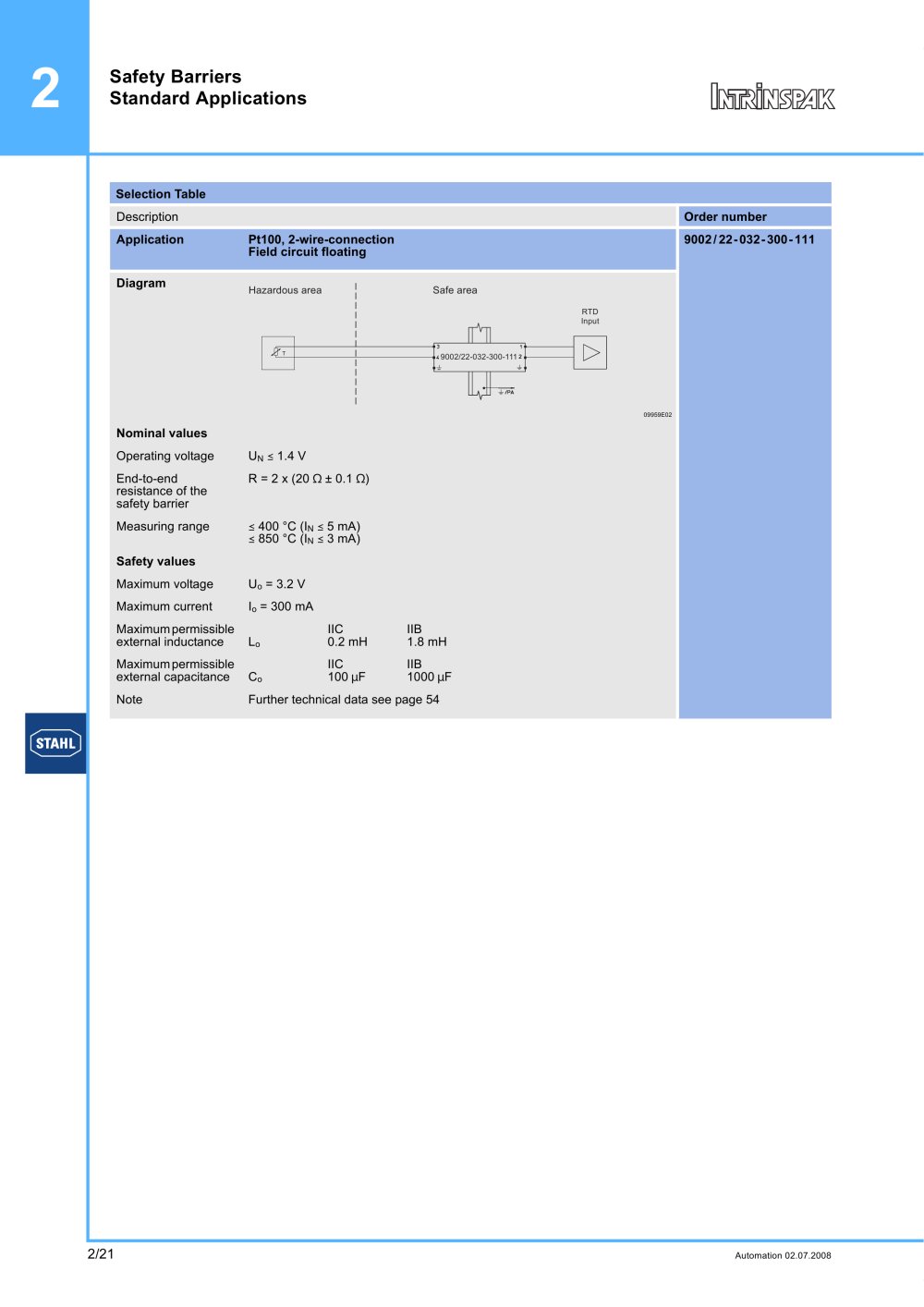

2/21
2
Automation 02.07.2008
Safety Barriers
Standard Applications
9002/22-032-300-111
Selection Table
Description Order number
Application Pt100, 2-wire-connection
Field circuit floating
Diagram
09959E02
Nominal values
Operating voltage UN ( 1.4 V
End-to-end
resistance of the
safety barrier
R = 2 x (20 O ± 0.1 O)
Measuring range ( 400 °C (IN ( 5 mA)
( 850 °C (IN ( 3 mA)
Safety values
Maximum voltage Uo = 3.2 V
Maximum current Io = 300 mA
Maximum permissible
external inductance Lo
IIC
0.2 mH
IIB
1.8 mH
Maximum permissible
external capacitance Co
IIC
100 mF
IIB
1000 mF
Note Further technical data see page 54
Hazardous area
9002/22-032-300-111
Safe area
RTD
Input
T
