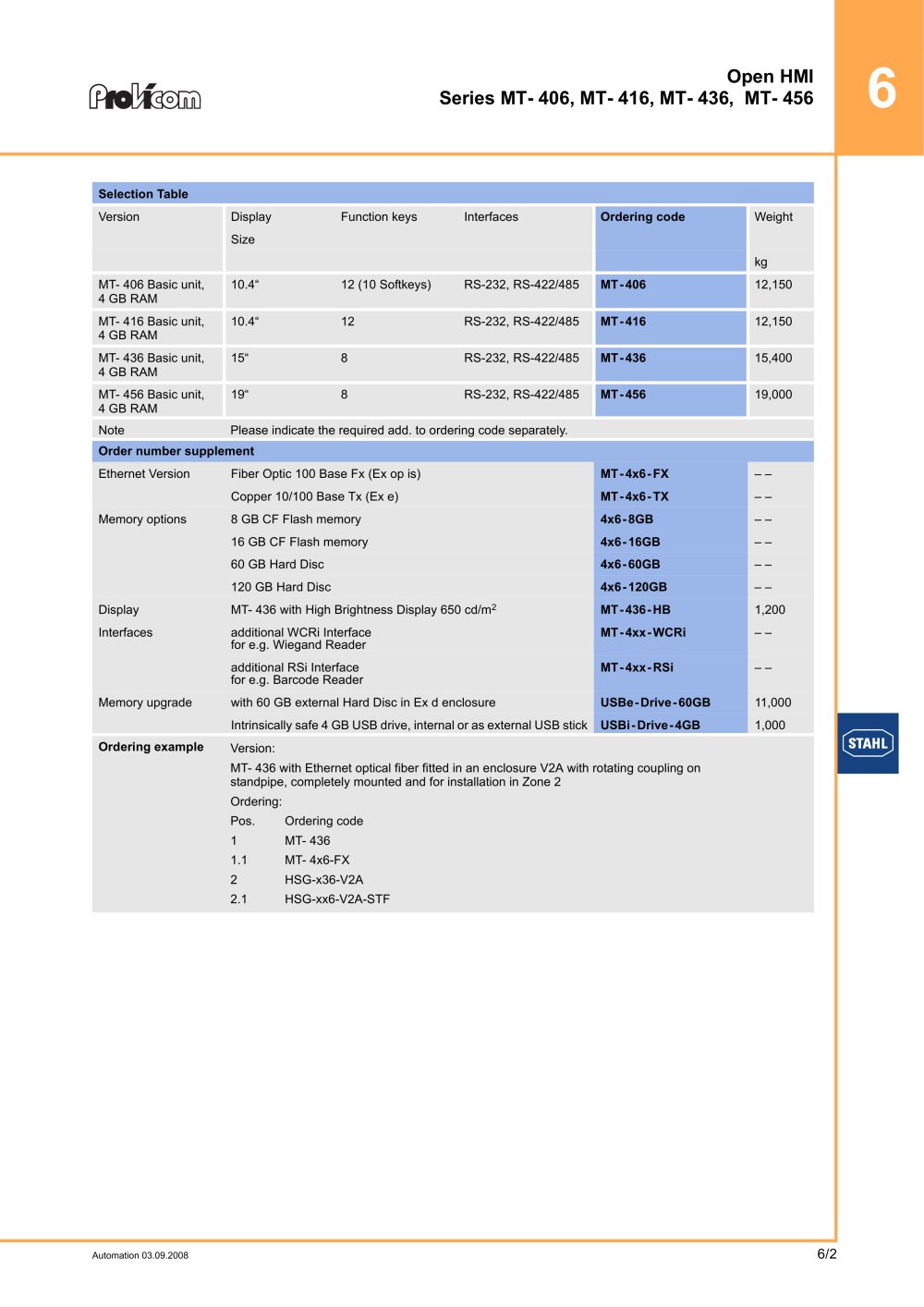

6/2 6 Automation 03.09.2008 Open HMI Series MT- 406, MT- 416, MT- 436, MT- 456 Selection Table Version Display Function keys Interfaces Ordering code Weight Size kg MT- 406 Basic unit, 4 GB RAM 10.4“ 12 (10 Softkeys) RS-232, RS-422/485 MT-406 12,150 MT- 416 Basic unit, 4 GB RAM 10.4“ 12 RS-232, RS-422/485 MT-416 12,150 MT- 436 Basic unit, 4 GB RAM 15“ 8 RS-232, RS-422/485 MT-436 15,400 MT- 456 Basic unit, 4 GB RAM 19“ 8 RS-232, RS-422/485 MT-456 19,000 Note Please indicate the required add. to ordering code separately. Order number supplement Ethernet Version Fiber Optic 100 Base Fx (Ex op is) MT-4x6-FX – – Copper 10/100 Base Tx (Ex e) MT-4x6-TX – – Memory options 8 GB CF Flash memory 4x6-8GB – – 16 GB CF Flash memory 4x6-16GB – – 60 GB Hard Disc 4x6-60GB – – 120 GB Hard Disc 4x6-120GB – – Display MT- 436 with High Brightness Display 650 cd/m2 MT-436-HB 1,200 Interfaces additional WCRi Interface for e.g. Wiegand Reader MT-4xx-WCRi – – additional RSi Interface for e.g. Barcode Reader MT-4xx-RSi – – Memory upgrade with 60 GB external Hard Disc in Ex d enclosure USBe-Drive-60GB 11,000 Intrinsically safe 4 GB USB drive, internal or as external USB stick USBi-Drive-4GB 1,000 Ordering example Version: MT- 436 with Ethernet optical fiber fitted in an enclosure V2A with rotating coupling on standpipe, completely mounted and for installation in Zone 2 Ordering: Pos. Ordering code 1 MT- 436 1.1 MT- 4x6-FX 2 HSG-x36-V2A 2.1 HSG-xx6-V2A-STF
