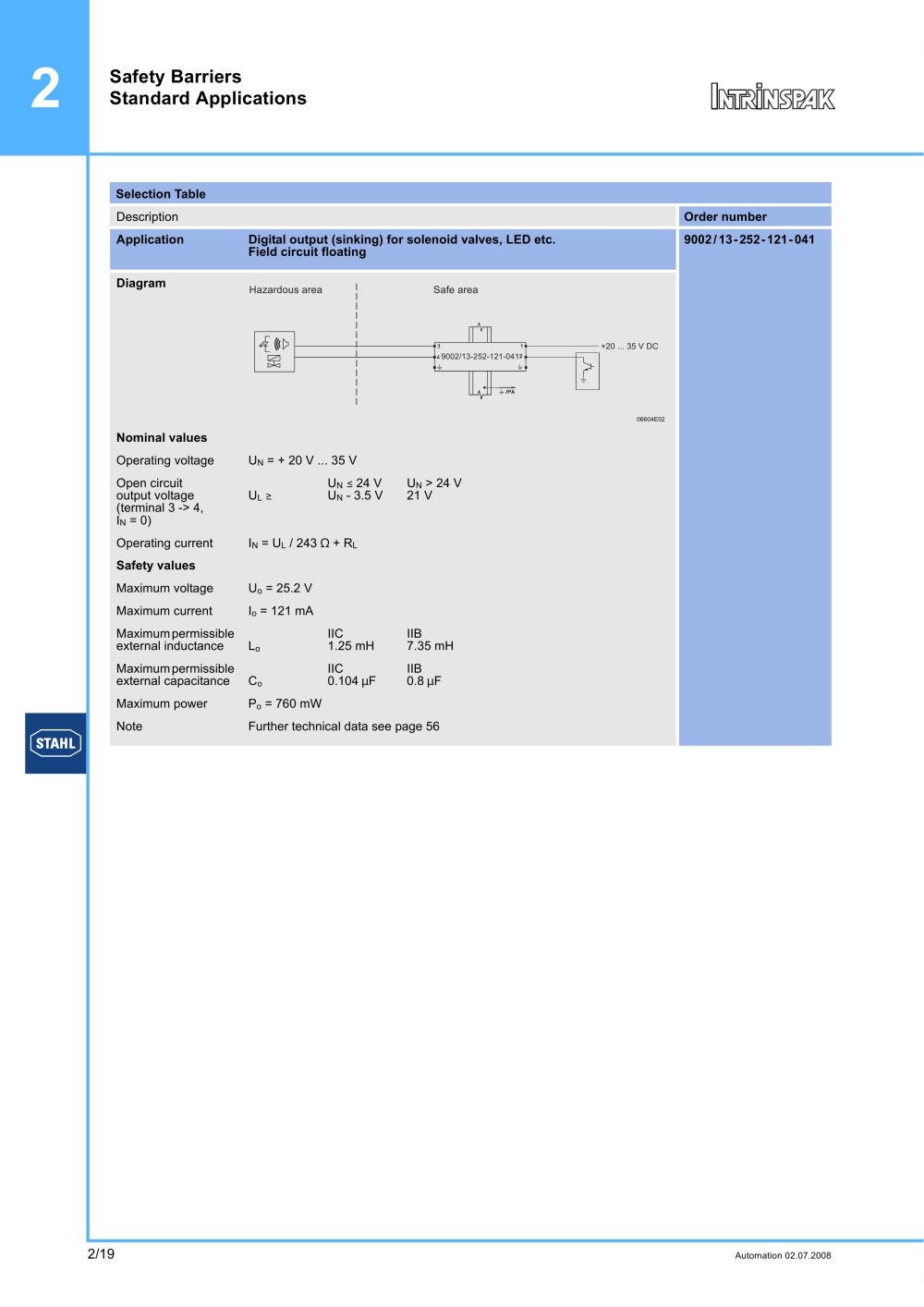

2/19
2
Automation 02.07.2008
Safety Barriers
Standard Applications
9002/13-252-121-041
Selection Table
Description Order number
Application Digital output (sinking) for solenoid valves, LED etc.
Field circuit floating
Diagram
06604E02
Nominal values
Operating voltage UN = + 20 V ... 35 V
Open circuit
output voltage
(terminal 3 -> 4,
IN = 0)
UL )
UN ( 24 V
UN - 3.5 V
UN > 24 V
21 V
Operating current IN = UL / 243 O + RL
Safety values
Maximum voltage Uo = 25.2 V
Maximum current Io = 121 mA
Maximum permissible
external inductance Lo
IIC
1.25 mH
IIB
7.35 mH
Maximum permissible
external capacitance Co
IIC
0.104 mF
IIB
0.8 mF
Maximum power Po = 760 mW
Note Further technical data see page 56
Hazardous area Safe area
9002/13-252-121-041
+20 ... 35 V DC
