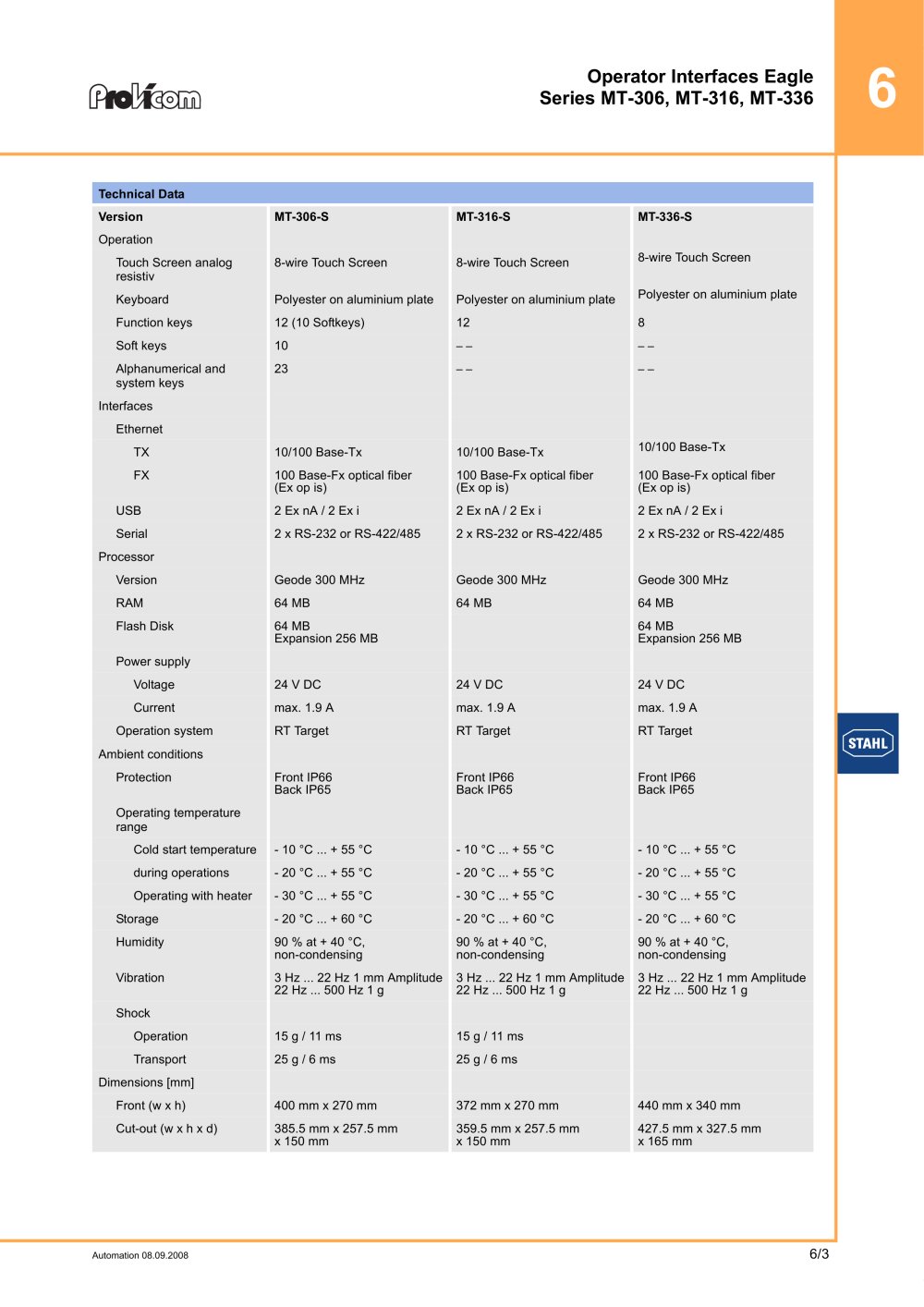

6/3 6 Automation 08.09.2008 Operator Interfaces Eagle Series MT-306, MT-316, MT-336 Version MT-306-S MT-316-S MT-336-S Operation Touch Screen analog resistiv 8-wire Touch Screen 8-wire Touch Screen 8-wire Touch Screen Keyboard Polyester on aluminium plate Polyester on aluminium plate Polyester on aluminium plate Function keys 12 (10 Softkeys) 12 8 Soft keys 10 – – – – Alphanumerical and system keys 23 – – – – Interfaces Ethernet TX 10/100 Base-Tx 10/100 Base-Tx 10/100 Base-Tx FX 100 Base-Fx optical fiber (Ex op is) 100 Base-Fx optical fiber (Ex op is) 100 Base-Fx optical fiber (Ex op is) USB 2 Ex nA / 2 Ex i 2 Ex nA / 2 Ex i 2 Ex nA / 2 Ex i Serial 2 x RS-232 or RS-422/485 2 x RS-232 or RS-422/485 2 x RS-232 or RS-422/485 Processor Version Geode 300 MHz Geode 300 MHz Geode 300 MHz RAM 64 MB 64 MB 64 MB Flash Disk 64 MB Expansion 256 MB 64 MB Expansion 256 MB Power supply Voltage 24 V DC 24 V DC 24 V DC Current max. 1.9 A max. 1.9 A max. 1.9 A Operation system RT Target RT Target RT Target Ambient conditions Protection Front IP66 Back IP65 Front IP66 Back IP65 Front IP66 Back IP65 Operating temperature range Cold start temperature - 10 °C ... + 55 °C - 10 °C ... + 55 °C - 10 °C ... + 55 °C during operations - 20 °C ... + 55 °C - 20 °C ... + 55 °C - 20 °C ... + 55 °C Operating with heater - 30 °C ... + 55 °C - 30 °C ... + 55 °C - 30 °C ... + 55 °C Storage - 20 °C ... + 60 °C - 20 °C ... + 60 °C - 20 °C ... + 60 °C Humidity 90 % at + 40 °C, non-condensing 90 % at + 40 °C, non-condensing 90 % at + 40 °C, non-condensing Vibration 3 Hz ... 22 Hz 1 mm Amplitude 22 Hz ... 500 Hz 1 g 3 Hz ... 22 Hz 1 mm Amplitude 22 Hz ... 500 Hz 1 g 3 Hz ... 22 Hz 1 mm Amplitude 22 Hz ... 500 Hz 1 g Shock Operation 15 g / 11 ms 15 g / 11 ms Transport 25 g / 6 ms 25 g / 6 ms Dimensions [mm] Front (w x h) 400 mm x 270 mm 372 mm x 270 mm 440 mm x 340 mm Cut-out (w x h x d) 385.5 mm x 257.5 mm x 150 mm 359.5 mm x 257.5 mm x 150 mm 427.5 mm x 327.5 mm x 165 mm Technical Data
