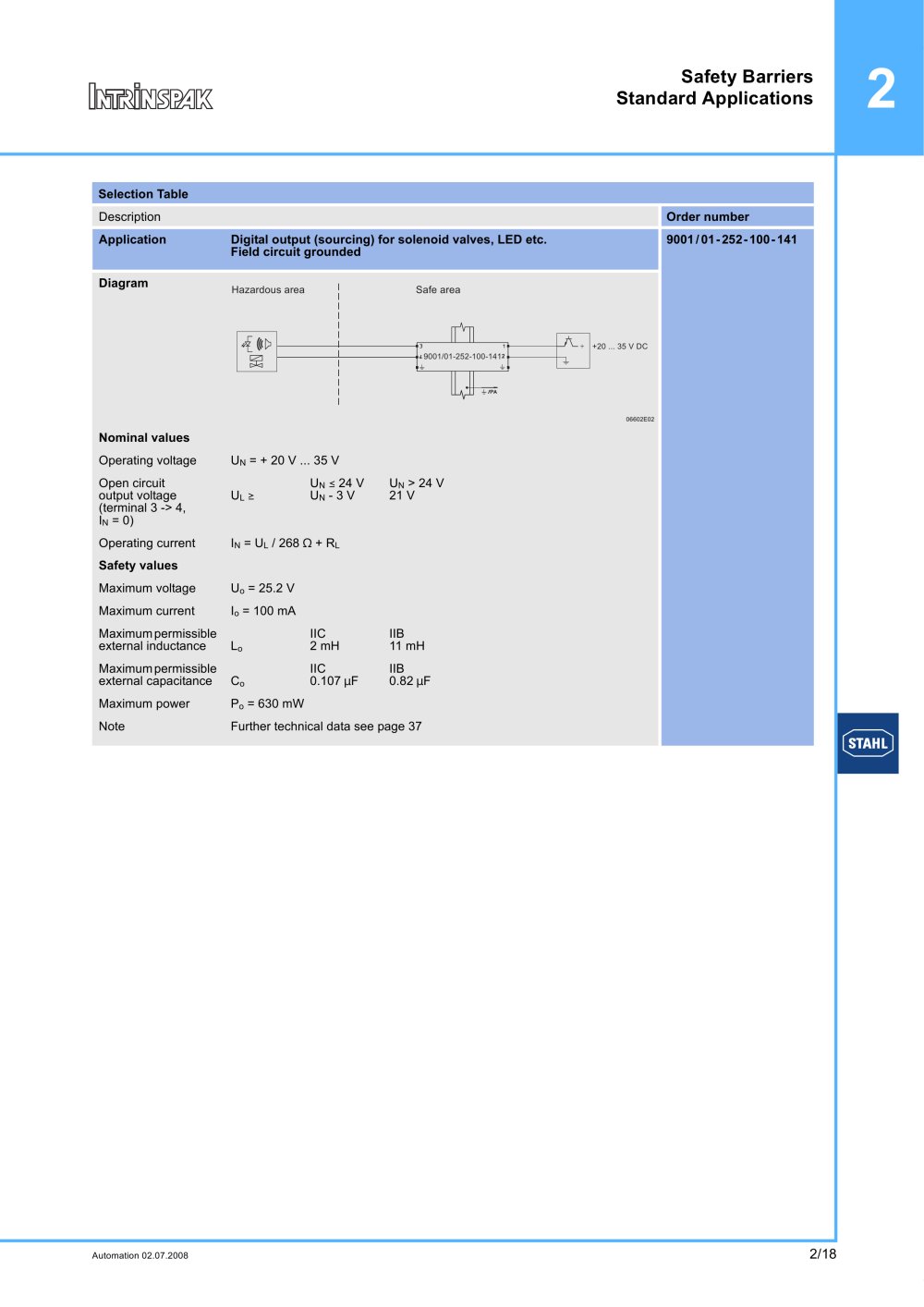

2/18
2
Automation 02.07.2008
Safety Barriers
Standard Applications
9001/01-252-100-141
Selection Table
Description Order number
Application Digital output (sourcing) for solenoid valves, LED etc.
Field circuit grounded
Diagram
06602E02
Nominal values
Operating voltage UN = + 20 V ... 35 V
Open circuit
output voltage
(terminal 3 -> 4,
IN = 0)
UL )
UN ( 24 V
UN - 3 V
UN > 24 V
21 V
Operating current IN = UL / 268 O + RL
Safety values
Maximum voltage Uo = 25.2 V
Maximum current Io = 100 mA
Maximum permissible
external inductance Lo
IIC
2 mH
IIB
11 mH
Maximum permissible
external capacitance Co
IIC
0.107 mF
IIB
0.82 mF
Maximum power Po = 630 mW
Note Further technical data see page 37
Hazardous area Safe area
9001/01-252-100-141
+20 ... 35 V DC
