6/1
6

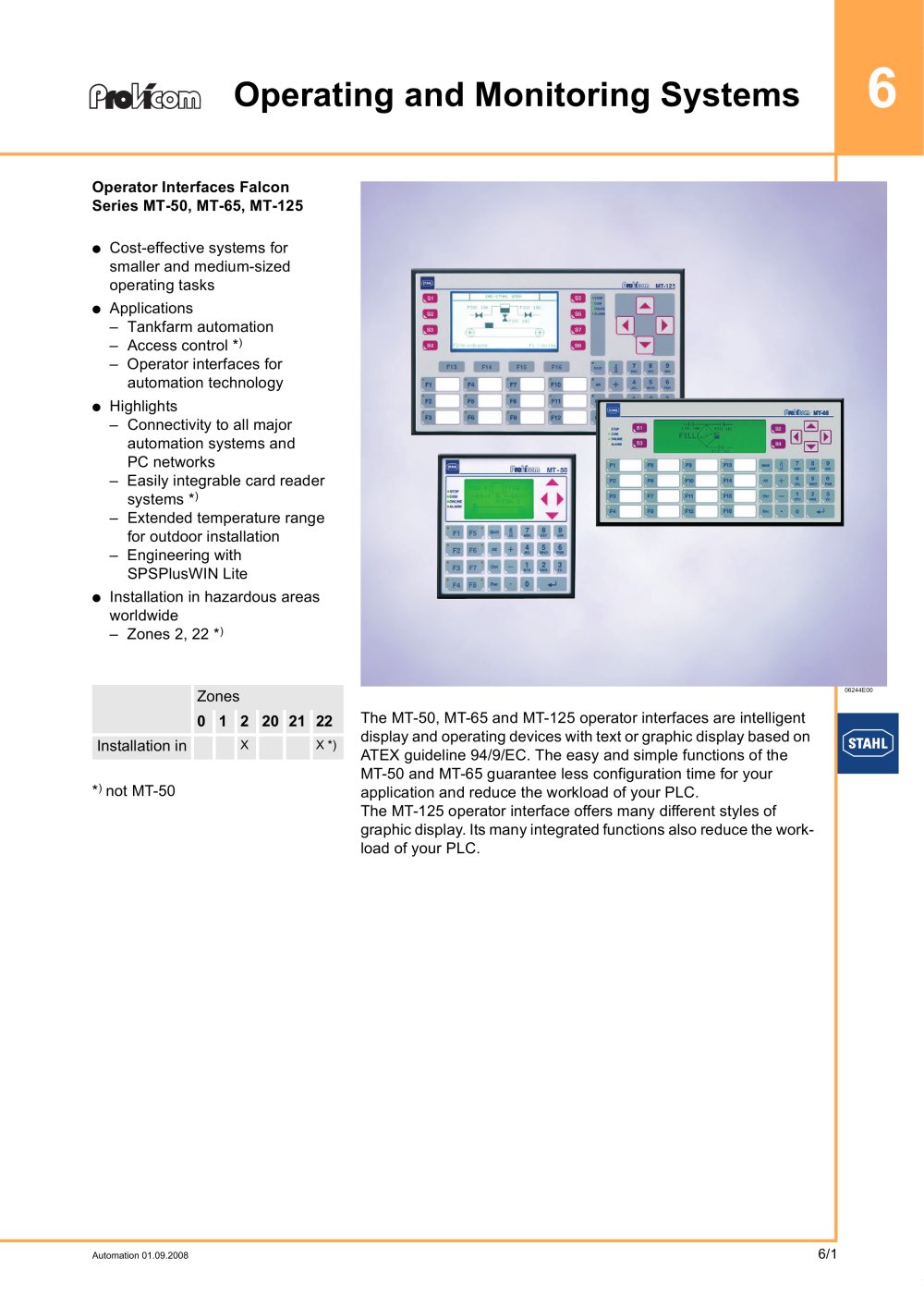

Automation 01.09.2008
Operating and Monitoring Systems
06244E00
Operator Interfaces Falcon
Series MT-50, MT-65, MT-125
Cost-effective systems for
smaller and medium-sized
operating tasks
Applications
Tankfarm automation
Access control *)
Operator interfaces for
automation technology
Highlights
Connectivity to all major
automation systems and
PC networks
Easily integrable card reader
systems *)
Extended temperature range
for outdoor installation
Engineering with
SPSPlusWIN Lite
Installation in hazardous areas
worldwide
Zones 2, 22 *)
*) not MT-50
Zones
0 1 2 20 21 22
Installation in X X *)
The MT-50, MT-65 and MT-125 operator interfaces are intelligent
display and operating devices with text or graphic display based on
ATEX guideline 94/9/EC. The easy and simple functions of the
MT-50 and MT-65 guarantee less configuration time for your
application and reduce the workload of your PLC.
The MT-125 operator interface offers many different styles of
graphic display. Its many integrated functions also reduce the workload
of your PLC.
