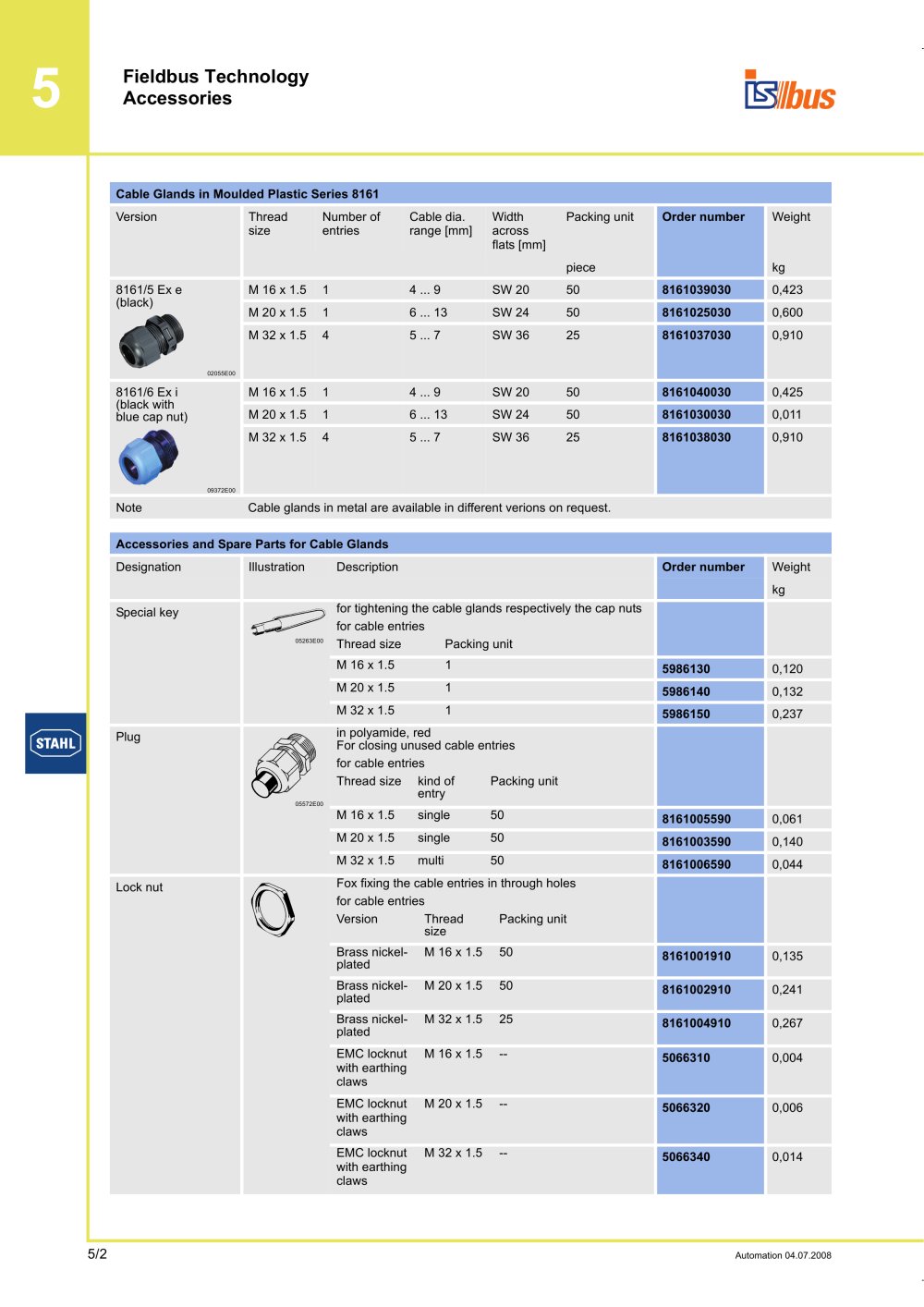

5/2 5 Automation 04.07.2008 Fieldbus Technology Accessories Cable Glands in Moulded Plastic Series 8161 Version Thread size Number of entries Cable dia. range [mm] Width across flats [mm] Packing unit Order number Weight piece kg 8161/5 Ex e (black) 02055E00 M 16 x 1.5 1 4 ... 9 SW 20 50 8161039030 0,423 M 20 x 1.5 1 6 ... 13 SW 24 50 8161025030 0,600 M 32 x 1.5 4 5 ... 7 SW 36 25 8161037030 0,910 8161/6 Ex i (black with blue cap nut) 09372E00 M 16 x 1.5 1 4 ... 9 SW 20 50 8161040030 0,425 M 20 x 1.5 1 6 ... 13 SW 24 50 8161030030 0,011 M 32 x 1.5 4 5 ... 7 SW 36 25 8161038030 0,910 Note Cable glands in metal are available in different verions on request. Accessories and Spare Parts for Cable Glands Designation Illustration Description Order number Weight kg Special key 05263E00 5986130 0,120 5986140 0,132 5986150 0,237 Plug 05572E00 8161005590 0,061 8161003590 0,140 8161006590 0,044 Lock nut 8161001910 0,135 8161002910 0,241 8161004910 0,267 5066310 0,004 5066320 0,006 5066340 0,014 for tightening the cable glands respectively the cap nuts for cable entries Thread size Packing unit M 16 x 1.5 1 M 20 x 1.5 1 M 32 x 1.5 1 in polyamide, red For closing unused cable entries for cable entries Thread size kind of entry Packing unit M 16 x 1.5 single 50 M 20 x 1.5 single 50 M 32 x 1.5 multi 50 Fox fixing the cable entries in through holes for cable entries Version Thread size Packing unit Brass nickelplated M 16 x 1.5 50 Brass nickelplated M 20 x 1.5 50 Brass nickelplated M 32 x 1.5 25 EMC locknut with earthing claws M 16 x 1.5 -- EMC locknut with earthing claws M 20 x 1.5 -- EMC locknut with earthing claws M 32 x 1.5 --
