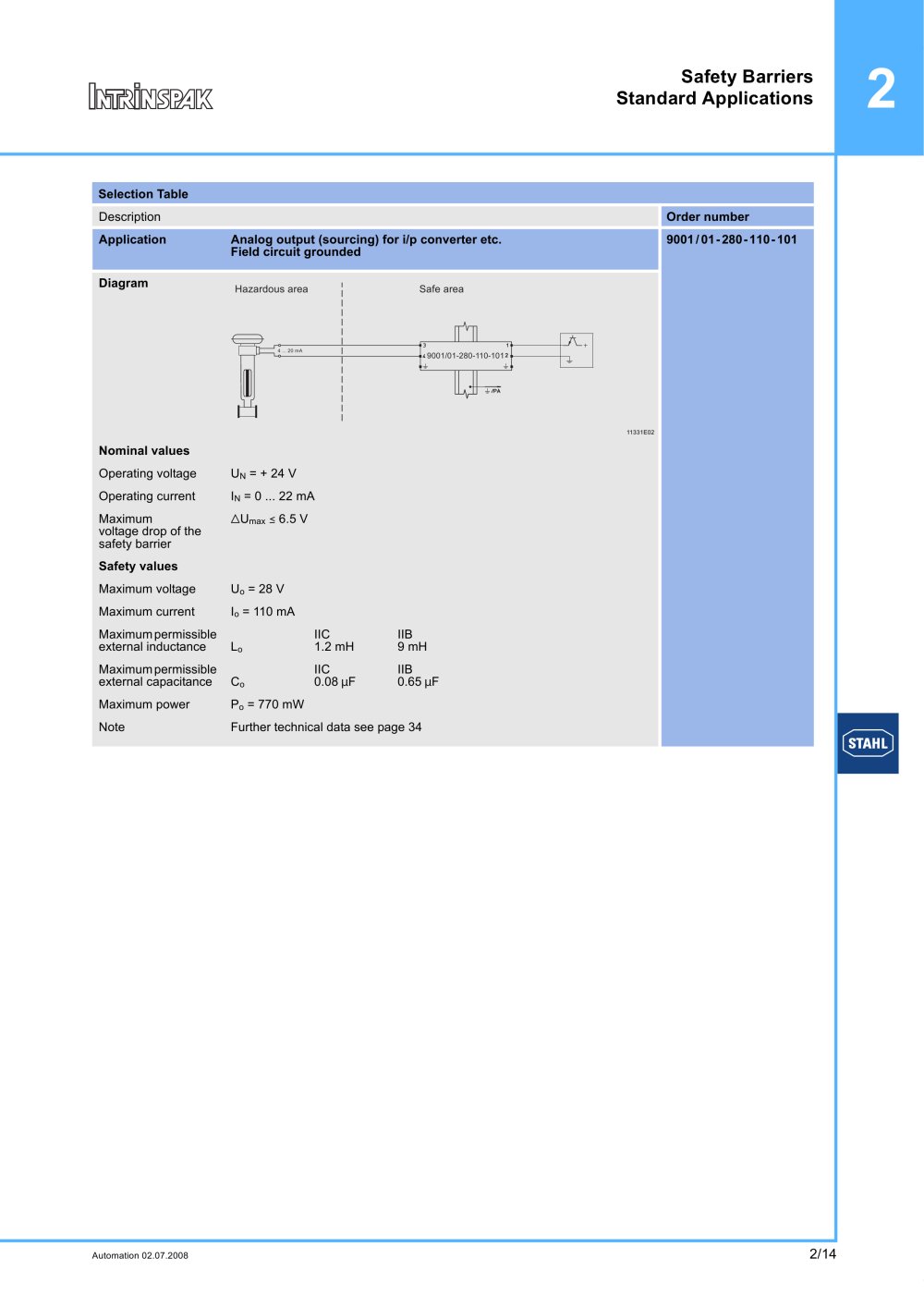

2/14
2
Automation 02.07.2008
Safety Barriers
Standard Applications
9001/01-280-110-101
Selection Table
Description Order number
Application Analog output (sourcing) for i/p converter etc.
Field circuit grounded
Diagram
11331E02
Nominal values
Operating voltage UN = + 24 V
Operating current IN = 0 ... 22 mA
Maximum
voltage drop of the
safety barrier
ăUmax ( 6.5 V
Safety values
Maximum voltage Uo = 28 V
Maximum current Io = 110 mA
Maximum permissible
external inductance Lo
IIC
1.2 mH
IIB
9 mH
Maximum permissible
external capacitance Co
IIC
0.08 mF
IIB
0.65 mF
Maximum power Po = 770 mW
Note Further technical data see page 34
4 ... 20 mA
9001/01-280-110-101
Hazardous area Safe area
