5/5
5
Automation 17.04.2008
Ex e Field Device Couplers
Series 9411/11

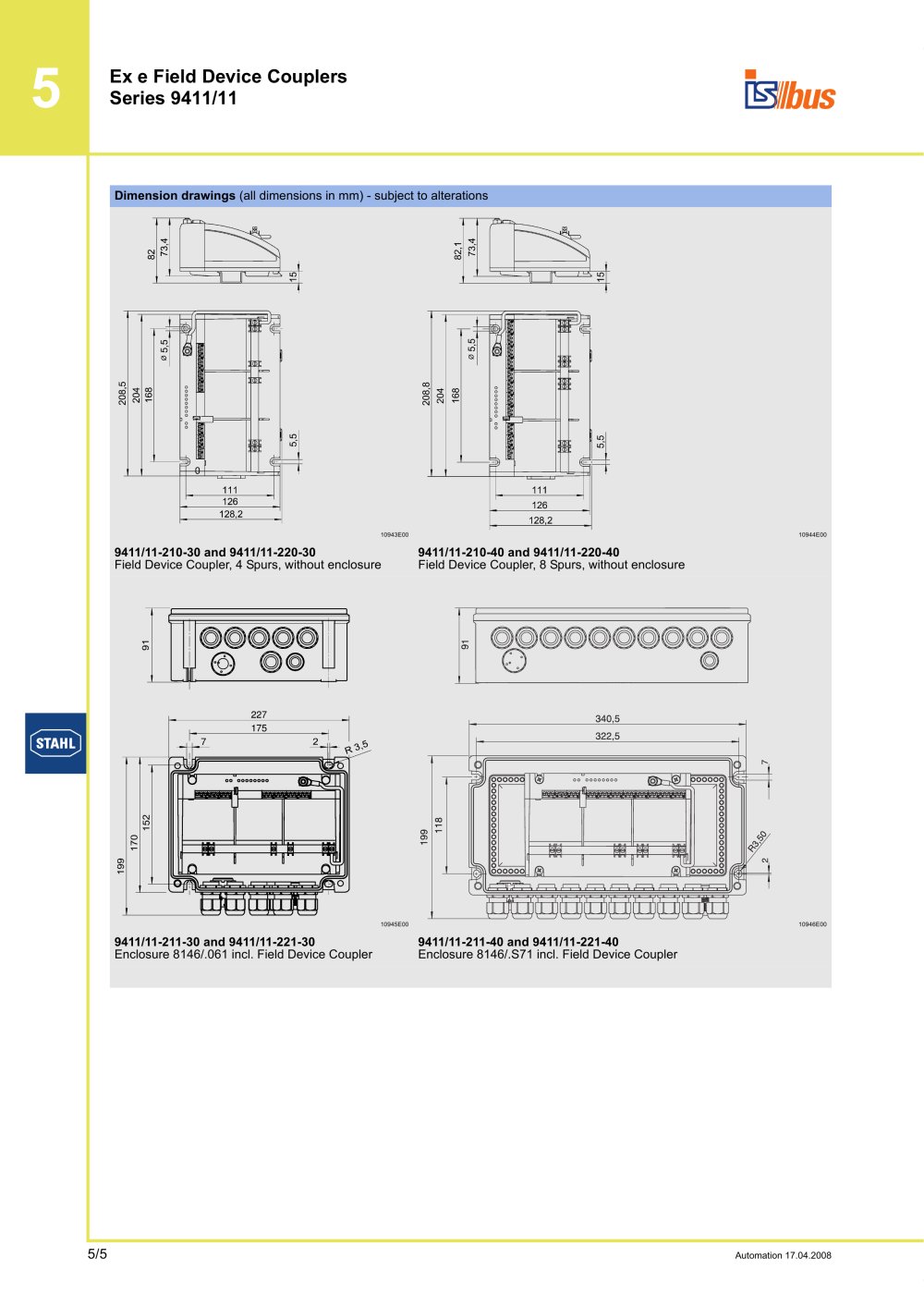

Dimension drawings (all dimensions in mm) - subject to alterations
10943E00 10944E00
9411/11-210-30 and 9411/11-220-30
Field Device Coupler, 4 Spurs, without enclosure
9411/11-210-40 and 9411/11-220-40
Field Device Coupler, 8 Spurs, without enclosure
10945E00 10946E00
9411/11-211-30 and 9411/11-221-30
Enclosure 8146/.061 incl. Field Device Coupler
9411/11-211-40 and 9411/11-221-40
Enclosure 8146/.S71 incl. Field Device Coupler
